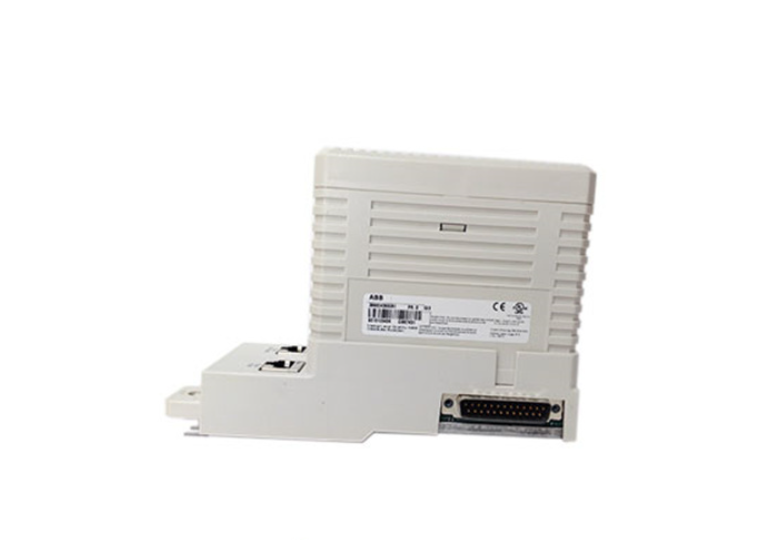

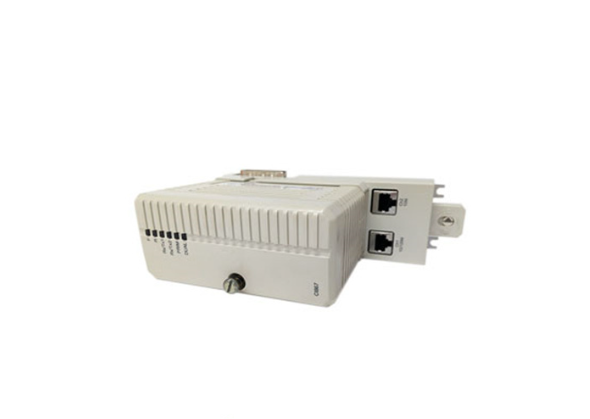

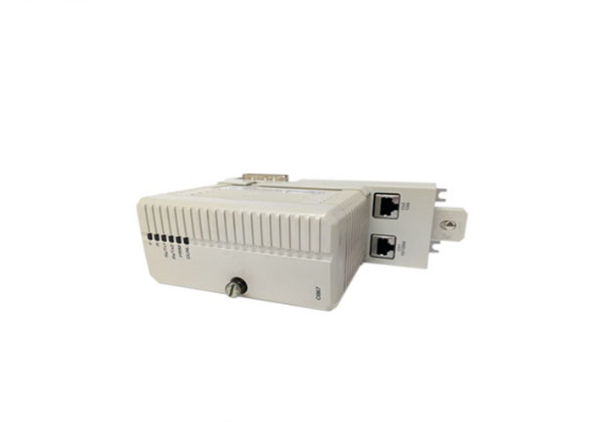

CI871 3BSE056767R1 ABB  Profinet IO接口

【产品详情】

编号：3BSE056767R1

一般信息

产品编号：编号：3BSE056767R1

ABB型号名称：CI871K01

目录说明：CI871K01 Profinet IO接口

详细描述：封装包括：

- CI871，通信接口

- TP867，底板

CI871A 是 AC 800M 通信接口，通过以太网连接到 PROFINET IO 设备。TP867 底板有两个 RJ45 以太网连接器，但只有支持 1Mbps 的 CH100 连接器用于 PROFINET IO 连接。以太网电缆必须通过以太网交换机连接到 PROFINET IO 网络。

CI871 扩展单元包含 CEX 总线逻辑、通信单元和 DC/DC 转换器，该转换器通过 CEX-Bus 从 +24 V 电源提供所需的电压。

CI871A 模块仅适用于 System 800xA 6.0.3.3、6.1.1 及后续版本

CI871 3BSE056767R1 ABB  Profinet IO接口

【英文介绍】

Number: 3BSE056767R1

General information

Product Number: Number: 3BSE056767R1

ABB model name: CI871K01

Directory Description: CI871K01 Profinet I/O interface

Detailed description: Package includes:

- CI871, communication port

- TP867, mainboard

The CI871A is an AC 800M communication interface that connects to the PROFINET IO device over Ethernet. The TP867 baseboard has two RJ45 Ethernet connectors, but only the CH100 connector that supports 1Mbps is used for PROFINET IO connectivity. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch.

The CI871 expansion unit contains the CEX Bus logic, a communication unit, and a DC/DC converter that delivers the required voltage from a +24 V power supply via the CEX-BUS.

The CI871A module is only applicable to System 800xA 6.0.3.3, 6.1.1 and later versions
