ABB CI858K01 连接 24 个 ABB 驱动器

【产品详情】

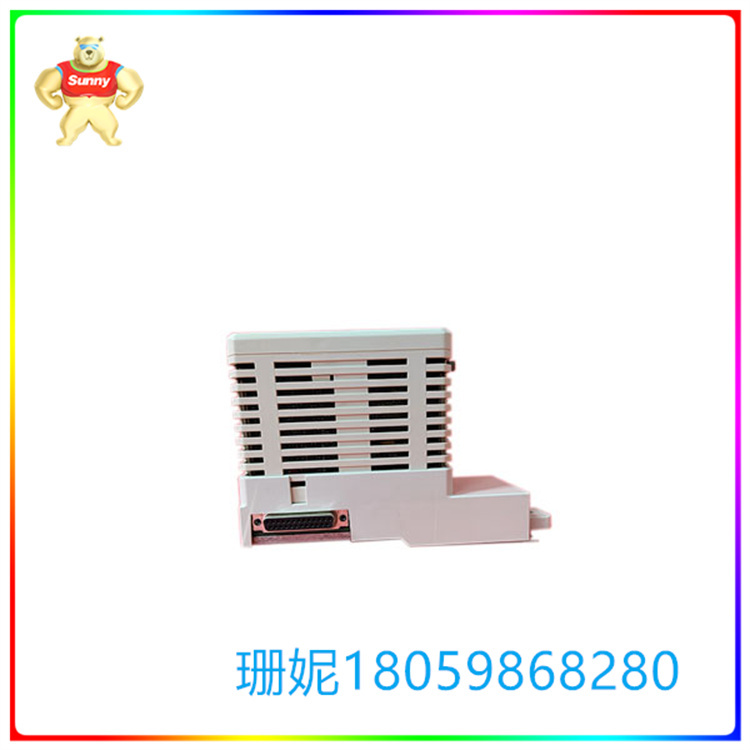

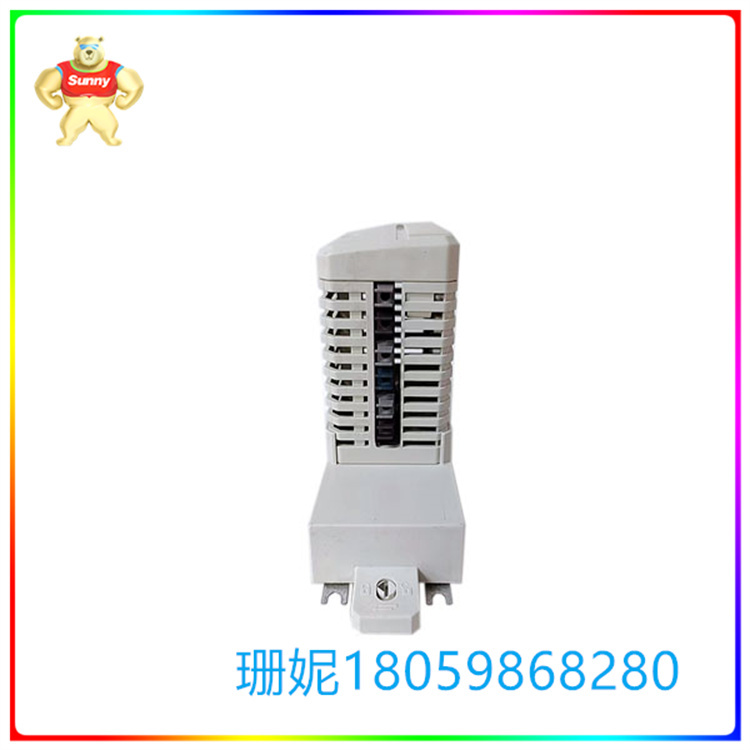

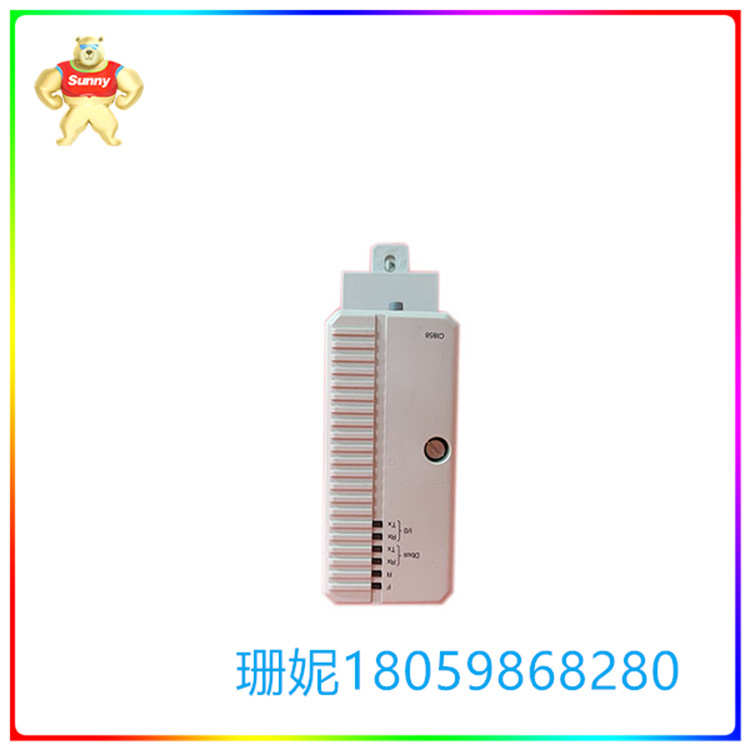

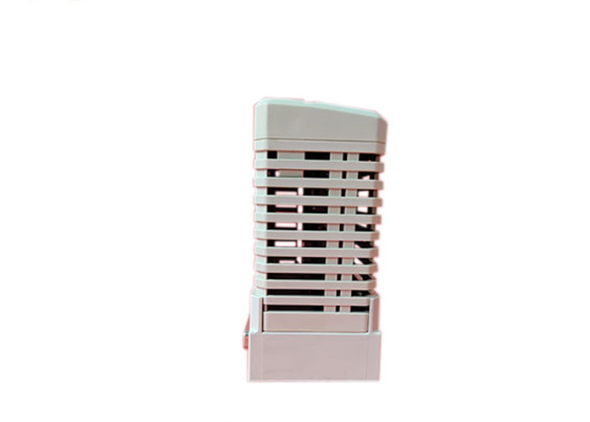

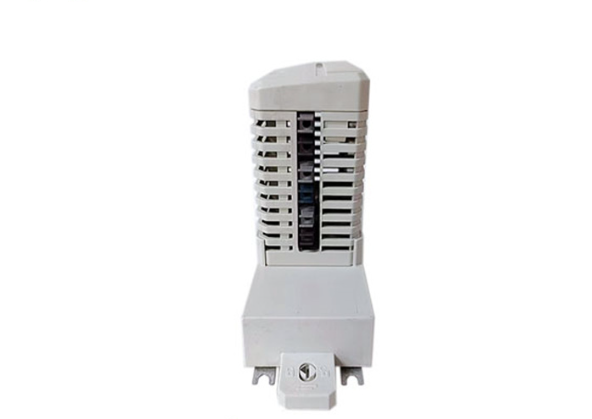

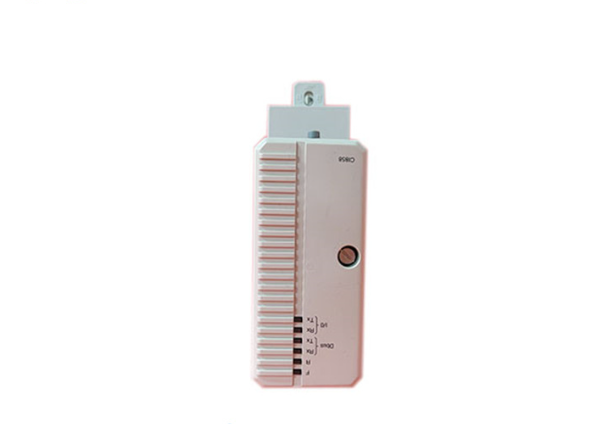

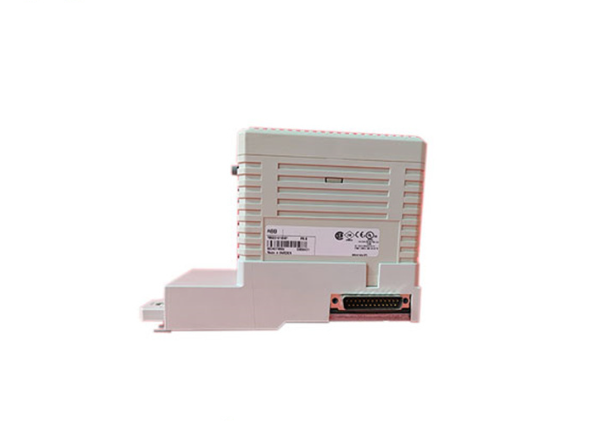

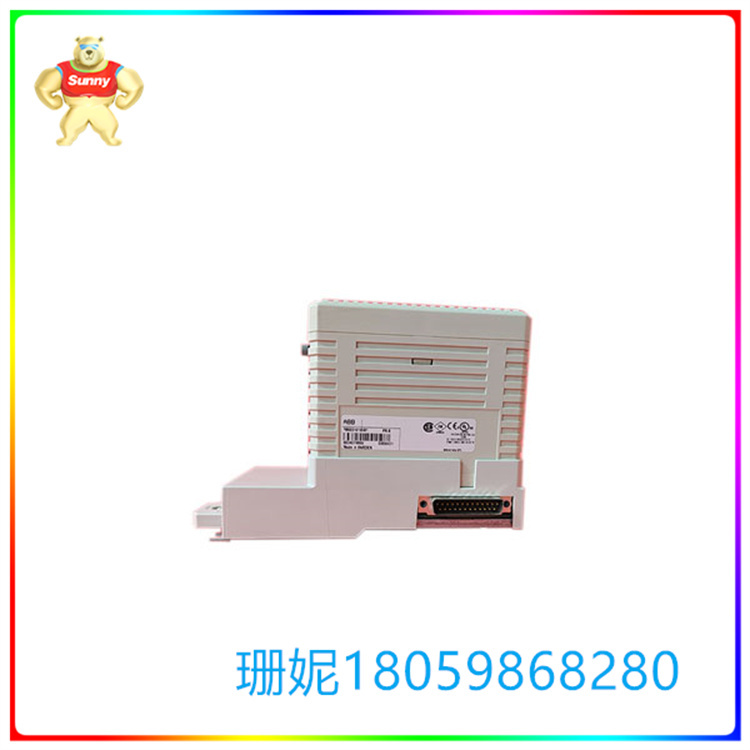

ABB CI858K01 3BSE018135R1 DriveBus 接口。CI858K01 DriveBus 接口套件包包括：CI858，通信接口。TP858，底板，宽度 = 60 毫米。交换号 EXC3BSE018135R1。

型号：CI858K01

产品编号：3BSE018135R1

DriveBus 协议用于与 ABB Drives 和 ABB Special I/O 单元进行通信。DriveBus 通过 CI858 通信接口单元连接到控制器。DriveBus 接口用于 ABB Drives 和 AC 800M 控制器之间的通信。

DriveBus 通信专为 ABB 轧机驱动系统和 ABB 造纸机控制系统的分段驱动应用而设计。CI858 由处理器单元通过 CEX 总线供电，因此不需要任何额外的外部电源。

特点和好处

DriveBus 支持热插拔

一个 CI858 最多可以连接 24 个 ABB 驱动器，一个 AC 800M 控制器最多可以连接两个 CI858。如果多个 ABB 驱动器连接到 CI858，则需要一个分支单元 NDBU，它可以构建具有物理星形拓扑的逻辑总线。分支单元可以被链接。

包装包括：

– CI858，通信接口

– TP858，底板

ABB CI858K01 连接 24 个 ABB 驱动器

【英文介绍】

ABB CI858K01 3BSE018135R1 DriveBus interface. CI858K01 DriveBus interface package includes: CI858, communication interface. TP858, base plate, width = 60 mm. Exchange number EXC3BSE018135R1.

Model: CI858K01

Product Number: 3BSE018135R1

The DriveBus protocol is used to communicate with ABB Drives and ABB Special I/O units. DriveBus connects to the controller via the CI858 communication interface unit. The DriveBus interface is used for communication between ABB Drives and AC 800M controllers.

DriveBus communication is designed for segment drive applications in ABB mill drive systems and ABB paper machine control systems. The CI858 is powered by the processor unit via the CEX bus, so no additional external power is required.

Features and benefits

DriveBus supports hot swapping

One CI858 can connect up to 24 ABB drives, and one AC 800M controller can connect up to two CI858s. If multiple ABB drivers are connected to the CI858, a branch unit NDBU is required, which can build a logical bus with a physical star topology. Branch units can be linked.

The package includes:

- CI858, communication port

- TP858, mainboard
