ABB BCU-02 控制单元 光纤链路控制变频器
【产品详情】

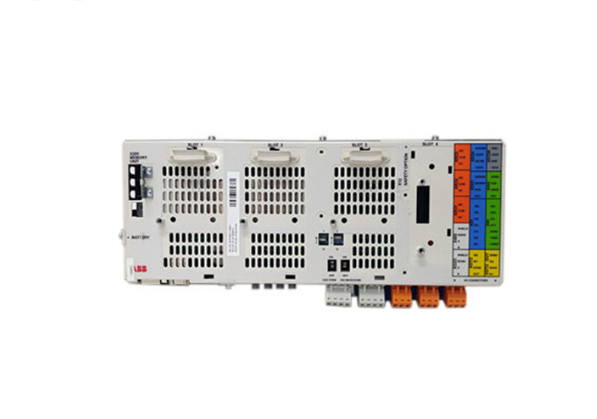

BCU-02、 BCU-12 和 BCU-22 是用于通过光纤链路控制变频器的控制单元。它包含光纤分
配器功能,用于从变频器模块收集和存储实时数据,以帮助进行故障跟踪和分析。数据存
储在安全数据卡中
控制单元需要外部 24 V DC 电源。它有三个可选的插槽,用于 I/O 扩展、编码器和总线适
配器,并具有集成式以太网接口,用于 PC 工具通讯以及可移除的存储单元。例如,如果
需要更换控制单元,可通过将存储单元从出现故障的控制单元转移到新的控制单元来保留
参数设置。
控制单元配有数据记录器,可用于采集来自变频器上电阶段的实时数据,以便协助进行故
障跟踪和分析。该数据将存储到插入 SD 卡插槽的 SDHC 内存卡上,且可由 ABB 维修人
员进行分析。
变频器间链路 (XD2D) 是一种菊花链式 RS-485 传输线路,它允许与一个主变频器以及多
个从变频器进行基本的主 / 从通讯。控制单元还有一个选件插槽,用于连接 RDCO DDCS
通讯选件板。有关详细信息,请参见相应的硬件手册。
BCU-02 控制单元有两个光纤连接 V1 和 V2,用于连接到变频器模块。控制单元不包括
BPEB-05 板。 BCU-12 控制单元包括一个 BPEB-05 板,可为其增加五个光纤连接
(V3…V7),而 BCU-22 控制单元包括两个 BPEB-05 板,因此可以增加十二个光纤连接
(V1…V12)
