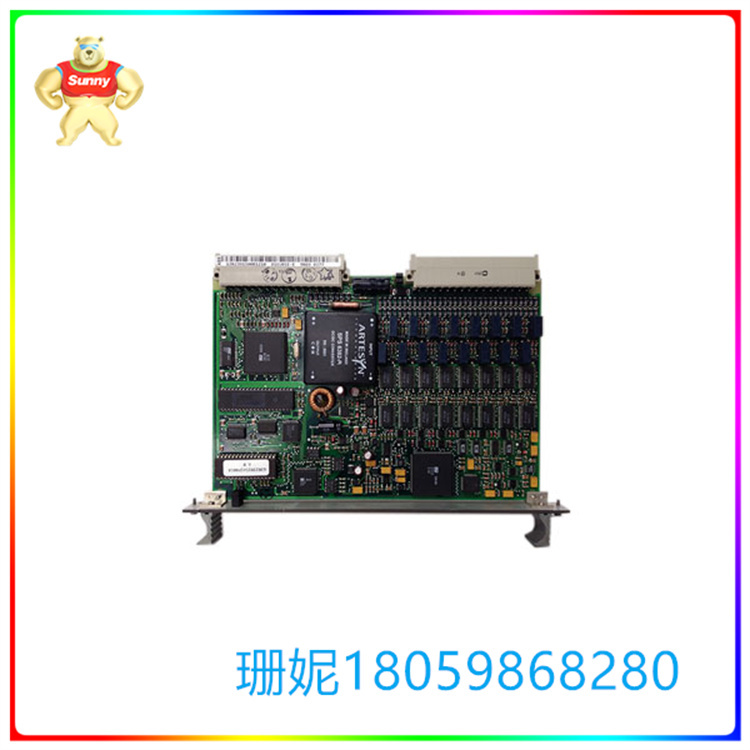

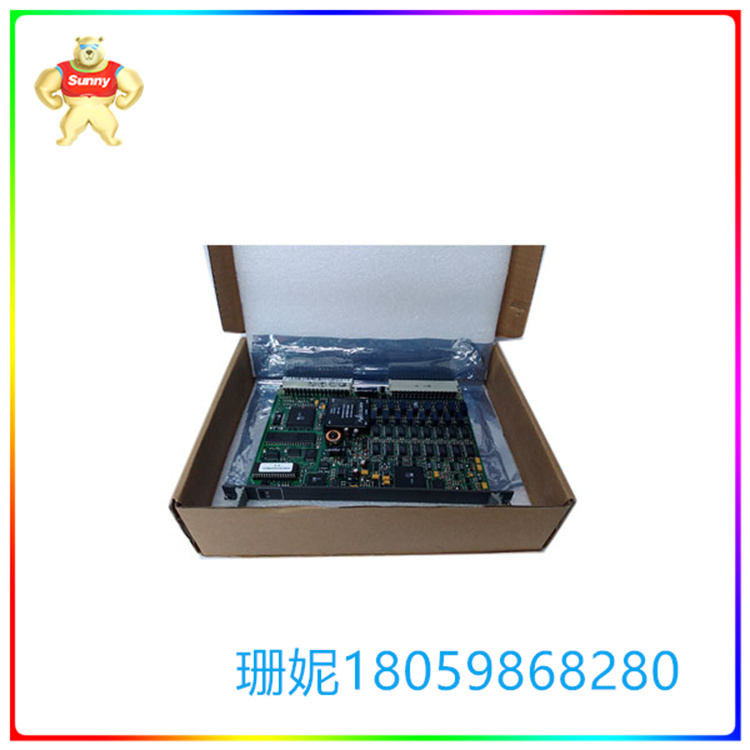

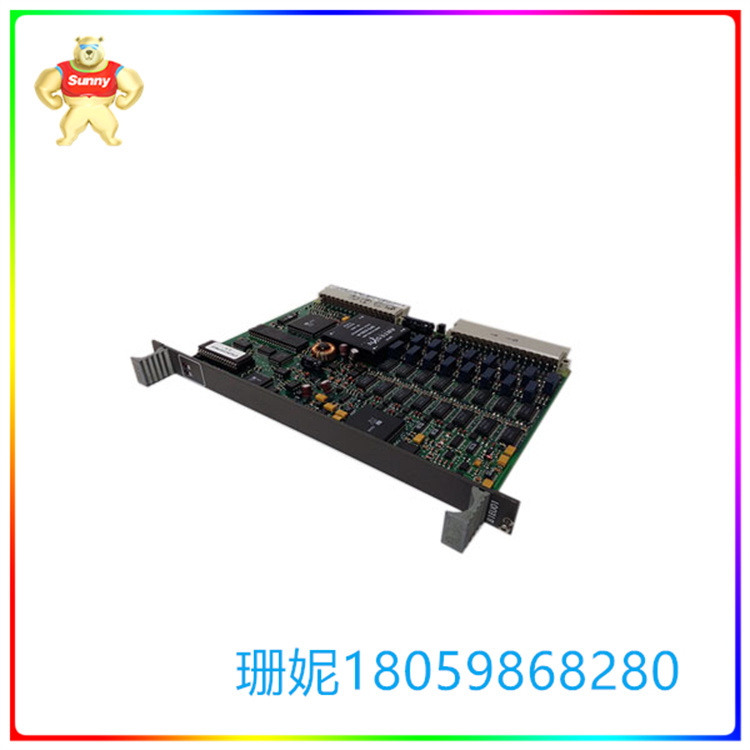

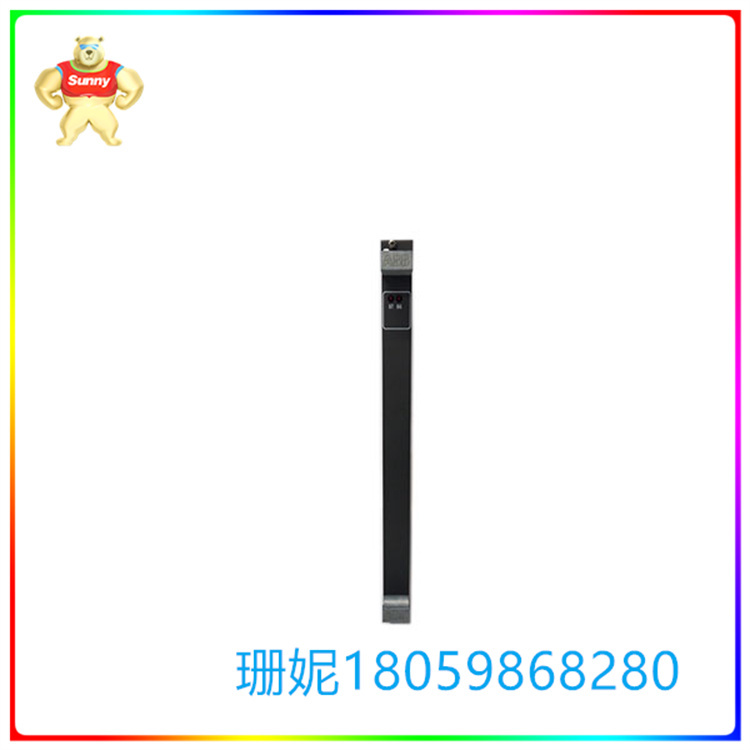

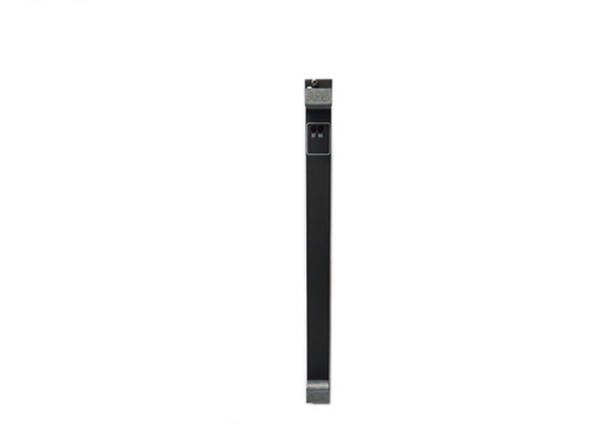

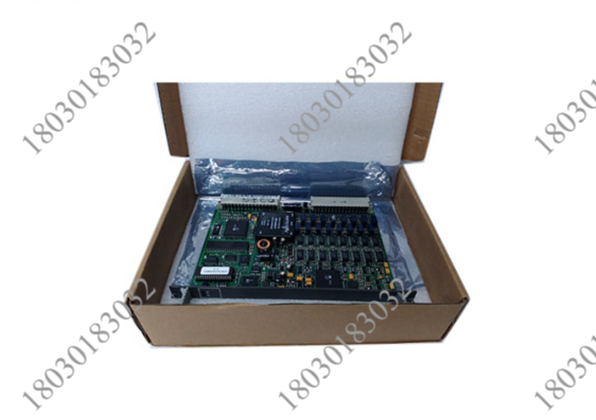

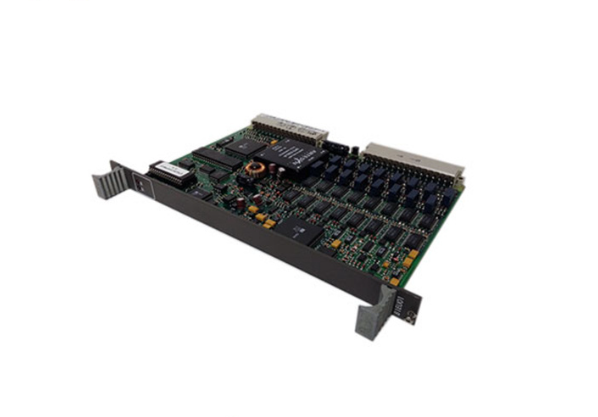

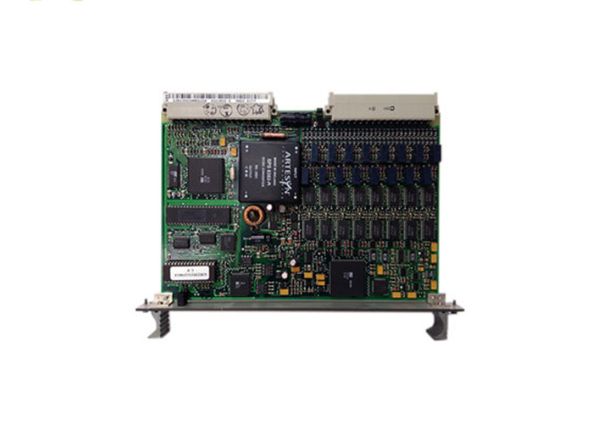

ABB 81EU01E-E  带有外部电源单元

【产品详情】

该模块共包含5个功能单元。每一个

功能单元可用于任何类型的输入模式。任何

组合是可能的。分配和设置

所有的参数可以很容易地编程使用

配置列表。程序编制的值存储在

EEPROM以确保它们在发生故障时不会丢失

电源故障。它们可以随时更改。

每个模拟信号最多可分配4个极限值。

在一个输入模块中，多达5个独立的校正或滤波

可以进行计算。编程是由

构建功能块。与此相关的条件

申请将被考虑在内。

特性

该模块可以插入任何PROCONTROL站

带有外部电源单元。它配备了一个用于PROCONTROL站总线的标准接口。

模块以形式发送转换后的输入信号

通过车站总线向PROCONTROL总线发送电报

系统。电报在发出和发送之前都要经过核对

用测试标志标记。这确保了接收模块规则可以检查它们的无错误传输。

通过车站总线接收的电报，例如用于校正计算，由模块检查是否无错误

基于测试标志的传输。

所作的规定是为了消除模块的功能单元和车站总线之间的干扰。

一种防短路和监控的发射机电源

是否可用于各功能单元，适用于各种

应用程序。

内部监控电路或输入的响应

信号监测功能以干扰的形式表示，平衡公告ST(一般干扰)在前面

模块面板。

ABB 81EU01E-E  带有外部电源单元

【英文介绍】

The module incorporates a total of 5 function units.  Each

function unit may be used for any type of input mode.  Any

combination is possible.  The allocation as well as the settings

of all the parameters can be programmed easily using the

configuration list.  The programmed values are stored in an

EEPROM to ensure that they are not lost in the event of a

power failure.  They can be changed any time.

Every analog signal can be assigned up to 4 limit values.

In an input module, up to 5 independent correction or filter

calcuations can be carried out.  Programming is done by

structuring function blocks.  The conditions relevant to this

application are to be taken into consideration.

Features

The module can be plugged into any PROCONTROL station

with an external power supply unit.  It is equipped with a standard interface for the PROCONTROL station bus.

The module sends the converted input signals in the form of

telegrams over the station bus to the PROCONTROL bus

system.  The telegrams are checked before they are sent and

marked with test flags.  This ensures that the receiving module can check them for error-free transmission.

The telegrams received over the station bus, e.g. for correction calculations, are checked by the module for error-free

transmission based on their test flags.

Provision is made to eliminate interference among the function units of the module and the station bus.

A short-circuit-proof and monitored transmitter power supply

is available for each function unit, suitable for the various

applications.

A response of the internal monitoring circuits or of the input

signal monitoring function is indicated in the form of a disturbance annunciation ST (general disturbance) on the front

panel of the module.
