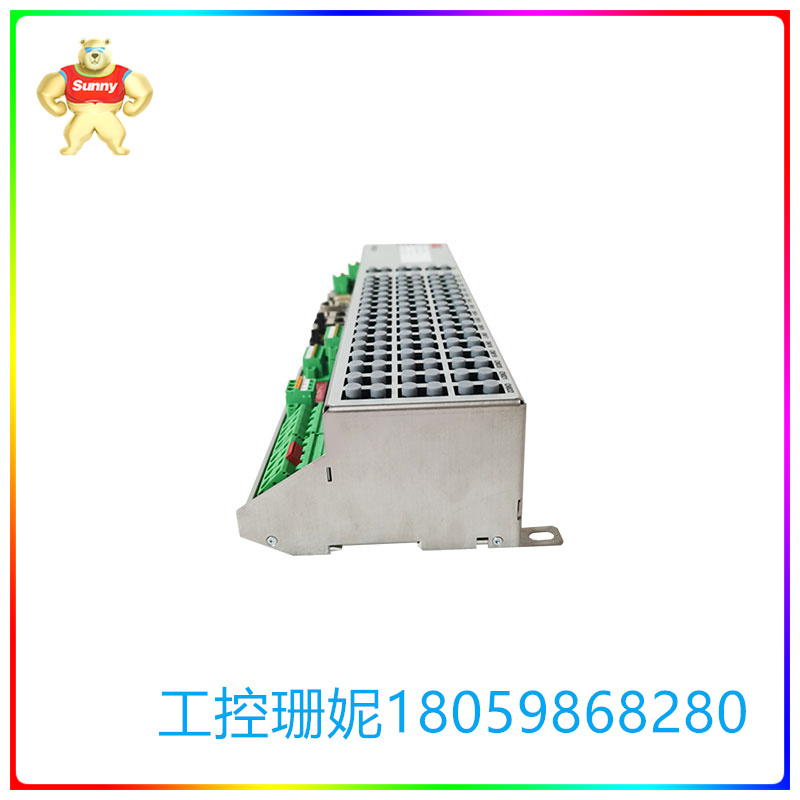

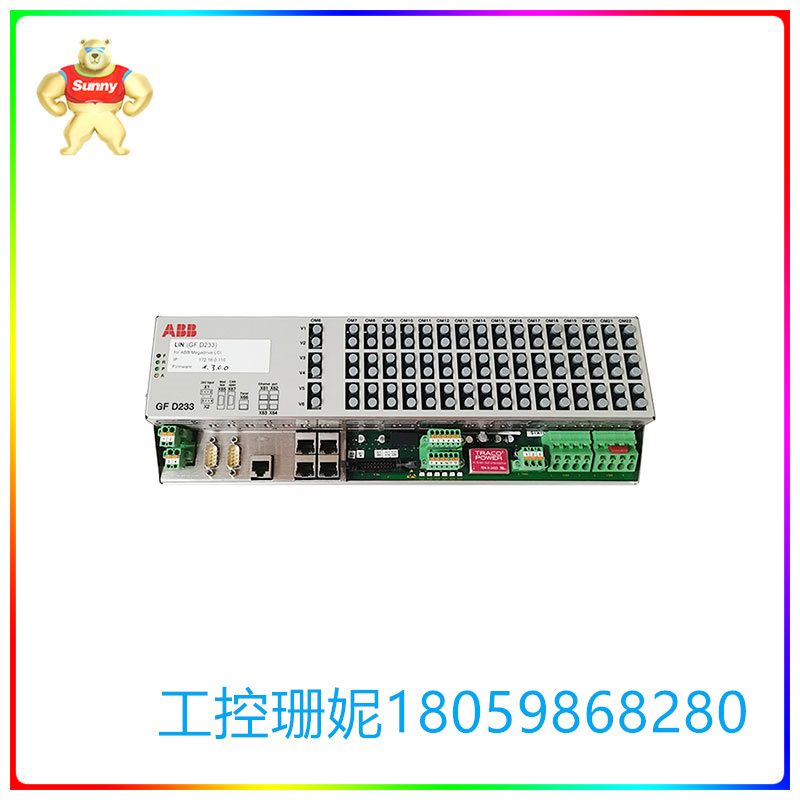

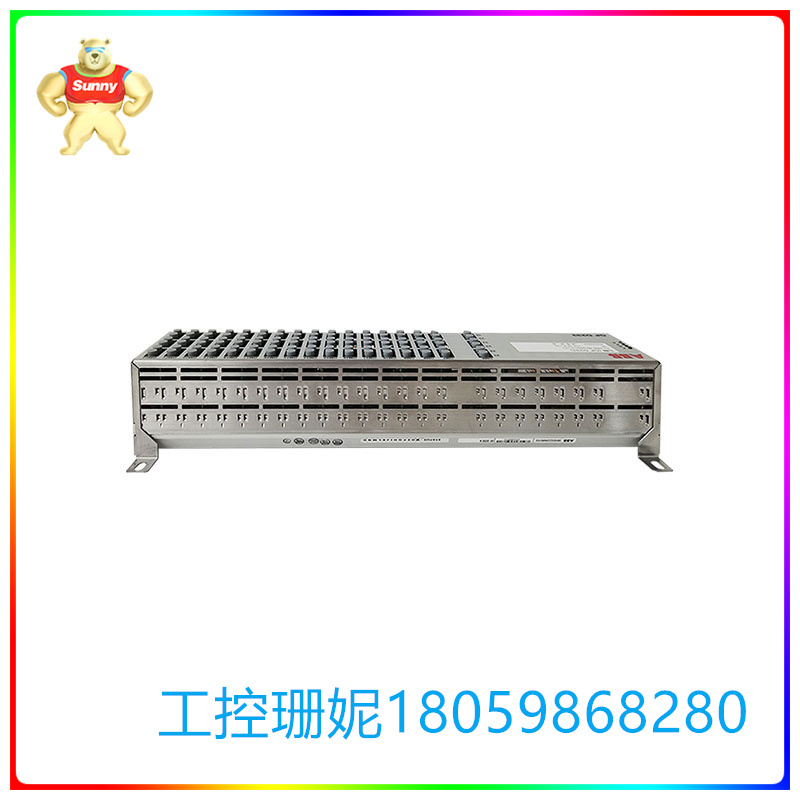

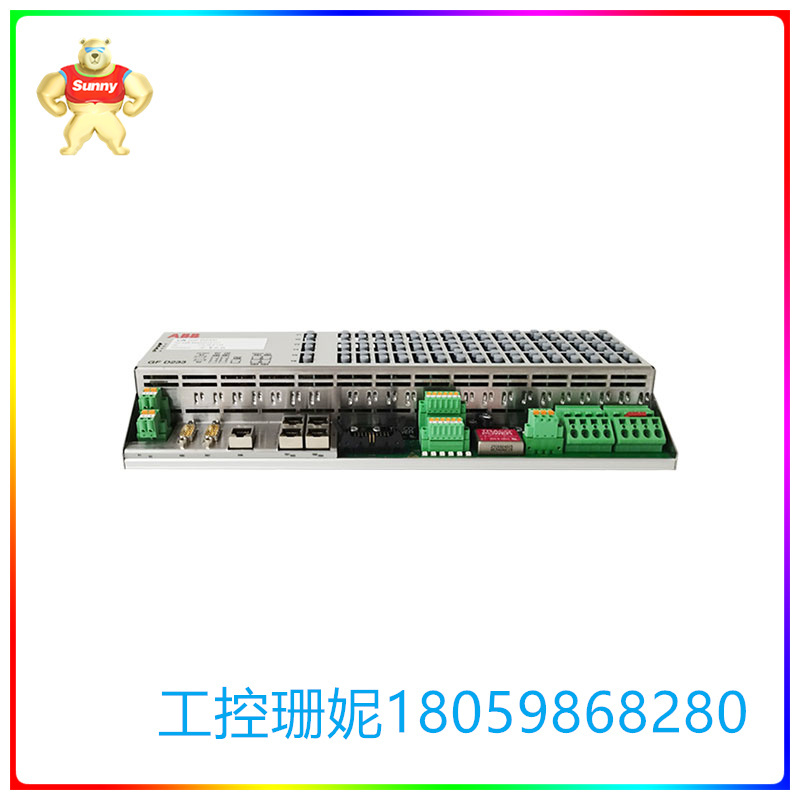

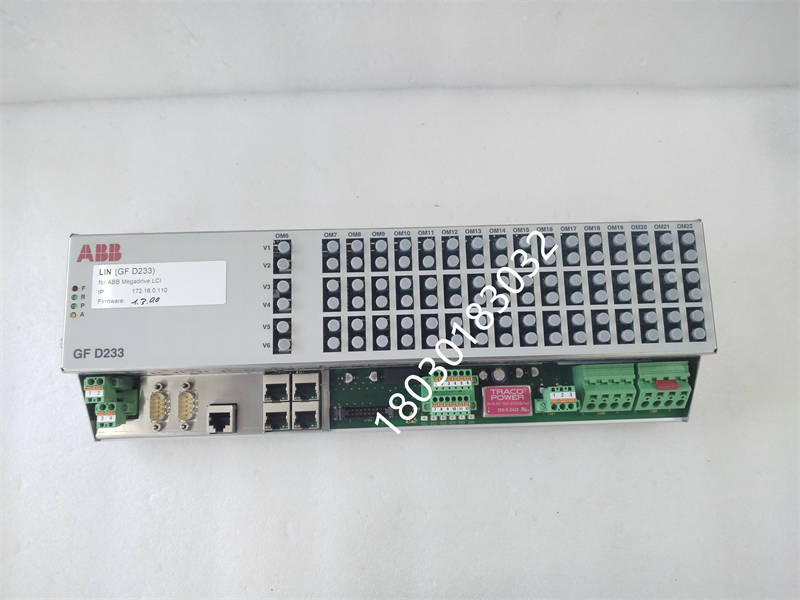

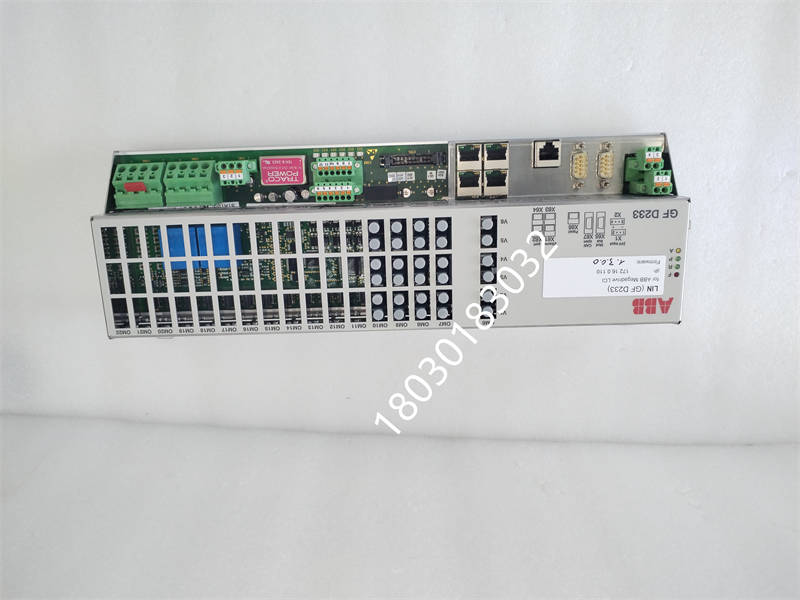

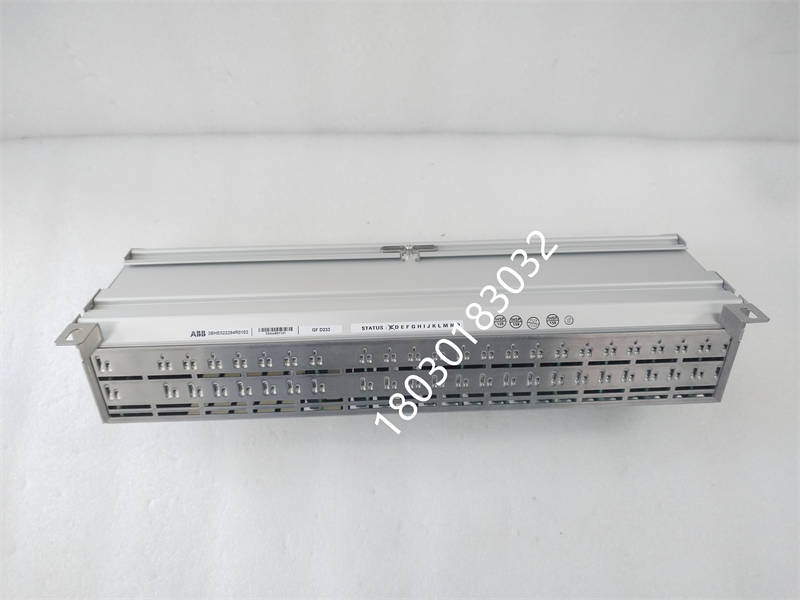

ABB-GFD233A ABB的I/O系统接口 通信模块接口

【产品详情】

ABB-GFD233A 3BHE022291R0101技术规格

AC 800PEC结合了电力电子应用过程的高速控制要求和通常由单独的PLC单元执行的低速过程控制任务。AC 800PEC控制器使用ABB的Control Builder M编程工具进行配置和编程，该工具符合IEC 61131-3，以及MATLAB, Simulink和Simulink编码器。

AC 800PEC通过光纤S800 ModuleBus与ABB的I/O系统接口，并通过通信扩展总线(CEX)与ABB的通信模块接口。它还支持第三方Anybus-S现场总线模块。控制系统可以使用Simulink和Simulink编码器进行编程。访问控制器硬件需要使用AC 800PEC工具箱。用户友好的监督是可能使用Simulink外部模式。

自并励静止整流励磁系统的励磁调节器是从半导体分立元件向集成化固体组件、从 模拟式向数字式方向发展的。国产装置可以划分为半导体模拟式励磁调节器、微机(含 可编程控制器)数字式励磁调节器和混合式微机(含可编程控制器)模拟式励磁调节器 等三大类。国产半导体励磁调节器于70年代初就有出口的记录。

ABB-GFD233A ABB的I/O系统接口 通信模块接口

【英文介绍】

The AC 800PEC combines the high-speed control requirements of processes for power electronics applications with the low-speed process control tasks typically performed by a separate PLC unit. The AC800PEC controller is configured and programmed using ABB's Control Builder M programming tool, which complies with IEC 61131-3, as well as MATLAB, Simulink and Simulink encoders.

AC 800PEC interfaces with ABB's I/O system via the fiber-optic S800 ModuleBus and ABB's communication module via the Communication Expansion Bus (CEX). It also supports third-party Anybus-S fieldbus modules. The control system can be programmed using Simulink and Simulink encoders. To access the controller hardware, use the AC800PEC toolkit. User-friendly supervision is possible using Simulink external mode.

The excitation regulator of self-shunt static rectifier excitation system develops from semiconductor discrete component to integrated solid component and from analog type to digital type. The domestic devices can be divided into three categories: semiconductor analog excitation regulator, microcomputer (including programmable controller) digital excitation regulator and hybrid microcomputer (including programmable controller) analog excitation regulator. Domestic semiconductor excitation regulators have been exported in the early 1970s.

ABB-GFD233A ABB的I/O系统接口 通信模块接口
