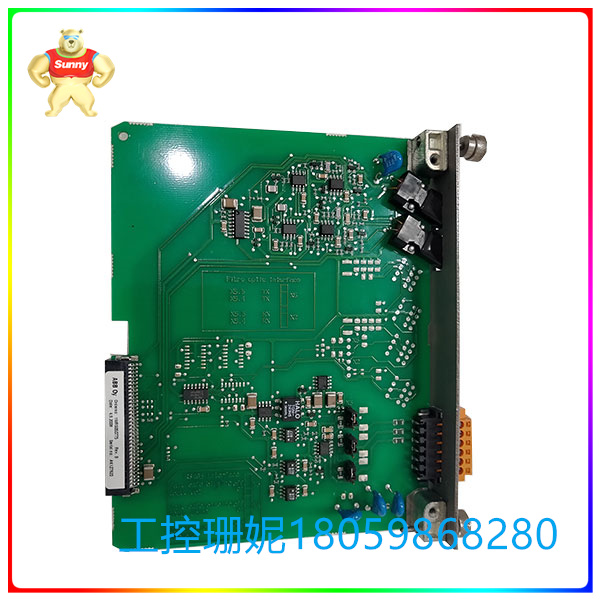

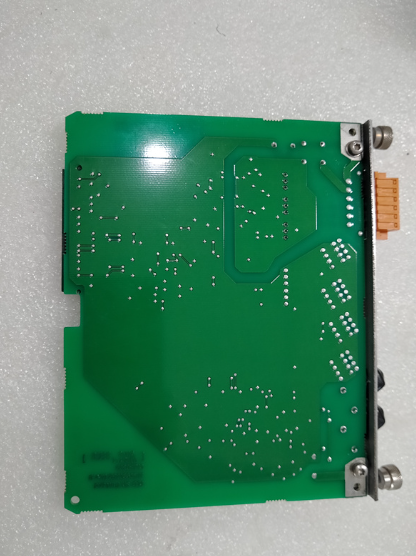

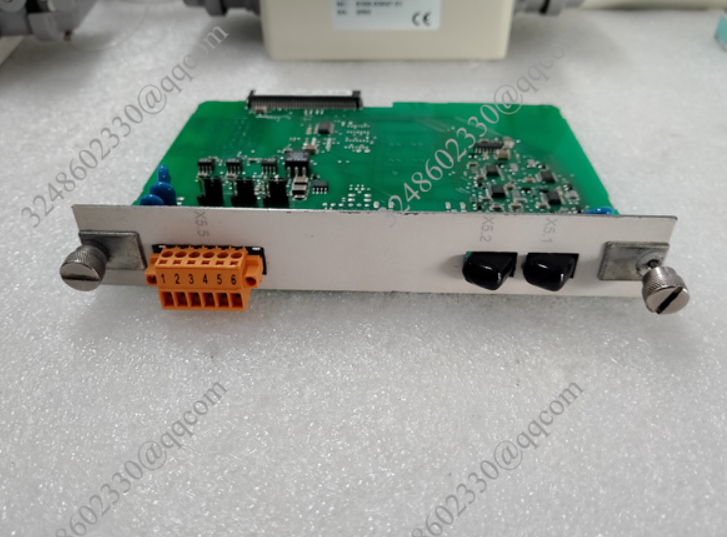

1MRS050729 ABB 通过终端或通过功能块

【产品详情】

品牌: ABB

型号:1MRS050729

产地:USA

质保:一年

1MRS050729 模块提供高性能的数据采集功能，可以实时采集和处理模拟信号。它具备高采样率和高分辨率，能够捕获细节丰富的信号。

这取决于通过终端或通过功能块的输入EN（启用）的操作模式。·将计数器设置为起始值：计数器可以设置为起始值。此值必须显示在功能块的输入STA（开始值）处。使用设定信号（（依赖于通过终端或与功能块的设定输入的操作模式），STA处的字变量的值被写入计数器。注：如果在几个处理周期中存在SET和EN信号，处理器在每个程序末端重新设置计数器。在处理周期的其余部分中，计数器会计数脉冲。·读取计数器内容：当前计数器内容（实际值）始终可以在函数块的OUT输出（实际值输出）处读取。·配置计数器编号：有几种操作模式，其中两个计数器可以相互独立工作。只有在这种情况下，函数块在程序中使用两次。

1MRS050729 ABB 通过终端或通过功能块

【英文介绍】

Brand: ABB

Model :1MRS050729

Origin :USA

Warranty: One year

The 1MRS050729 module provides high-performance data acquisition function, which can collect and process analog signals in real time. It has a high sampling rate and high resolution to capture detailed signals.

This depends on the mode of operation through the terminal or through the input EN (enabled) of the function block. · Set the counter to the starting value: The counter can be set to the starting value. This value must be displayed at the input STA (start value) of the function block. Using the setting signal (which depends on the mode of operation input via the terminal or with the setting of the function block), the value of the word variable at STA is written to the counter. Note: If SET and EN signals are present in several processing cycles, the processor resets the counter at the end of each program. During the rest of the processing cycle, the counter accounts for the number of pulses. Read counter contents: The current counter contents (actual value) can always be read at the OUT output (actual value output) of the function block. Configure the counter number: there are several modes of operation in which two counters can work independently of each other. Only in this case is the function block used twice in the program.

1MRS050729 ABB 通过终端或通过功能块
