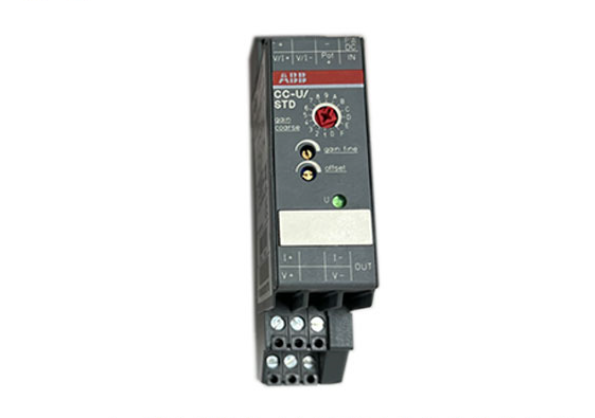

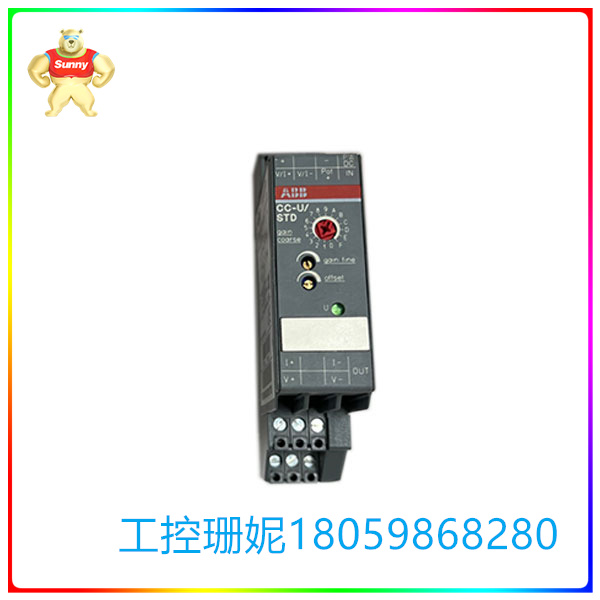

1SVR040000R1700  标准模拟信号转换器 具有 3 路电气隔离功能

【产品详情】

扩展产品类型：CC-U/STD

产品编号：1SVR040001R0400

：4013614362897

目录说明：CC-U/STD 通用信号转换器 110-240VAC 50/60Hz / 100-300VDC

详细描述：CC-U/STD 是 CC-U 系列的标准模拟信号转换器。该转换器具有 3 路电气隔离功能，额定控制电源电压为 110-240 V AC。它提供短路保护信号输出、可插拔连接端子和可配置的输入电压信号中断检测（低故障安全/高故障安全）。28 个输入信号范围（16 个标准和 12 个非标准）和 41 个输出信号范围（8 个标准和 33 个非标准）可通过直接访问的横向 DIP 开关进行配置。增益和失调调整通过正面操作元件进行。施加的电源电压由绿色 LED 显示。产品技术参数资料

Analog Signal Converters Data SheetControl Cabinet Solutions

法例与合规

 不适用

 符合声明

COO (Country of Origin): DE

产品详细信息

通用信号转换器，用于标准信号

3 路隔离

输出信号在受到干扰时可进行配置

防短路信号输出可防止损坏

ABB DIN 卡轨信号转换器，模拟

所有装置都适合在 -20 至 +60°C 的环境温度范围中使用。 模块尺寸：高 105 x 宽 22.5 x 深 129.5mm

1SVR040000R1700  标准模拟信号转换器 具有 3 路电气隔离功能

【英文介绍】

Expanded product type: CC-U/STD

Product ID: 1SVR040001R0400

: 4013614362897

CC-U/STD Universal Signal converter 110-240VAC 50/60Hz / 100-300VDC

Description: CC-U/STD is the standard analog signal converter for the CC-U series. The converter has 3-way electrical isolation and is rated for 110-240 V AC control supply voltage. It provides short-circuit protection signal output, pluggable connection terminals, and configurable input voltage signal interruption detection (low fail-safe/high fail-safe). 28 input signal ranges (16 standard and 12 non-standard) and 41 output signal ranges (8 standard and 33 non-standard) can be configured with direct access to the transverse DIP switch. Gain and offset adjustments are made by front operating elements. The applied power supply voltage is displayed by a green LED. Product technical data

Analog Signal Converters Data SheetControl Cabinet Solutions

Legislation and compliance

inapplicability

Declaration of conformity

COO (Country of Origin): DE

Product Details

Universal signal converter for standard signals

Three-way isolation

The output signal can be configured in case of interference

Anti-short circuit signal output prevents damage

ABB DIN rail signal converter, analog

All units are suitable for use in the ambient temperature range from -20 to +60°C. Module dimensions: H 105 x W 22.5 x D 129.5mm
