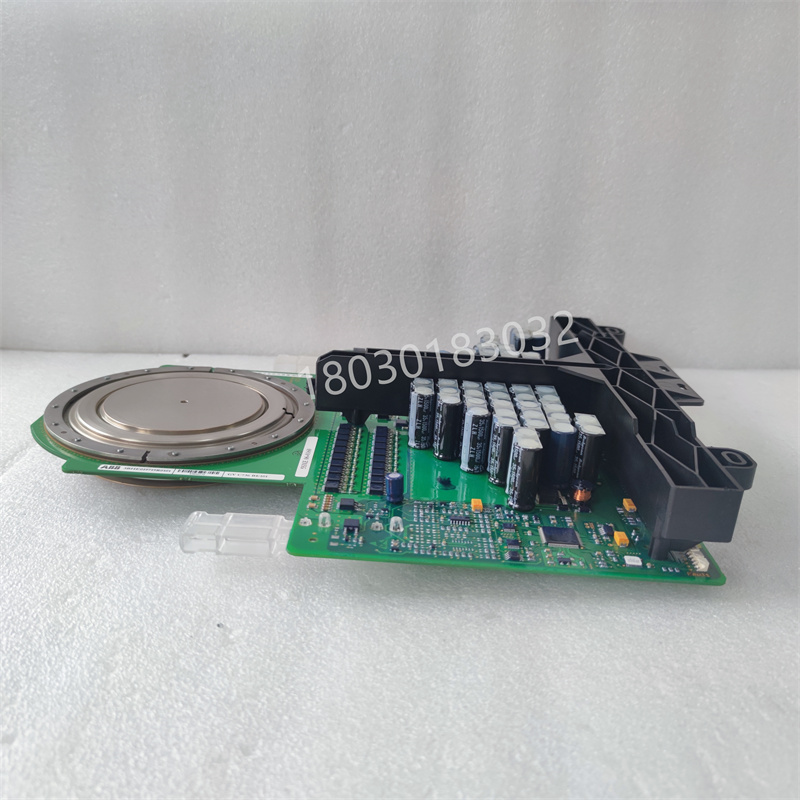

GV C707 AE01 3BHB045668R0005 栅极驱动板套件

【产品详情】

3 BH B045647R0011

PM套件用于14X 91MM光- GV C707 AE01;

栅极驱动板套件

一般信息

产品ID

3 BHB045647R0011

ABB型号

PM套件用于14x 91mm光- gv c707 aeo1

目录描述

PM套件用于14x 91mm光- gv c707 ae01;栅极驱动板套件

产品净重

28.56公斤

产品净宽度

技术

技术信息

该材料套件包含闸板单元板和螺钉

额外的信息

产品名称

栅极驱动板套件

3 BH B045647R0011栅极驱动板是一种用于放大来自微控制器或其他来源的低电压或低电流的缓冲电栅极驱动板，其原理及应用分析如下：

GBT/功率MOSFET的结构使得栅极形成一个非线性电容。给栅极电容充电会使功率器件导通，并允许电流在其漏极和源极引脚之间流动，而放电则会使器件关断，漏极和源极引脚上就可以阻断大电压。当栅极电容充电且器件刚好可以导通时的最小电压就是阈值电压(VTH)。为将IGBT/功率MOSFET用作开关，应在栅极和源极/发射极引脚之间施加一个充分大于VTH的电压。

GV C707 AE01 3BHB045668R0005 栅极驱动板套件

【英文介绍】

3 bh B045647R0011

PM Kit for 14x 91mm optical - gv c707 ae01;

Grid drive board kit

General information

Product ID

3 bhb045647r0011

ABB model

PM kit for 14x 91mm optical - gv c707 aeo1

Directory description

PM Kit for 14x 91mm optical - gv c707 ae01; Grid drive board kit

Net product weight

28.56 kg

Net width of product

technology

Technical information

The material kit consists of ram unit plates and screws

Additional information

Product name

Grid drive board kit

The grid driver board is a buffer electric grid driver board used to amplify low voltage or low current from a microcontroller or other sources. Its principle and application are analyzed as follows:

The structure of the GBT/ power MOSFET allows the gate to form a nonlinear capacitor. Charging the gate capacitor causes the power device to be on and allows current to flow between its drain and source pins, while discharging causes the device to be turned off and large voltages can be blocked at the drain and source pins. The minimum voltage when the gate capacitor is charged and the device is just ready to be switched on is the threshold voltage (VTH). To use an IGBT/ power MOSFET as a switch, a voltage sufficiently greater than VTH should be applied between the gate and source/emitter pins.
