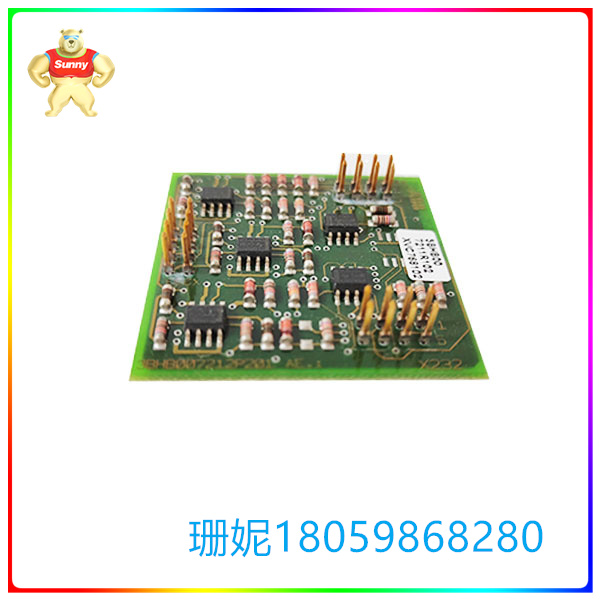

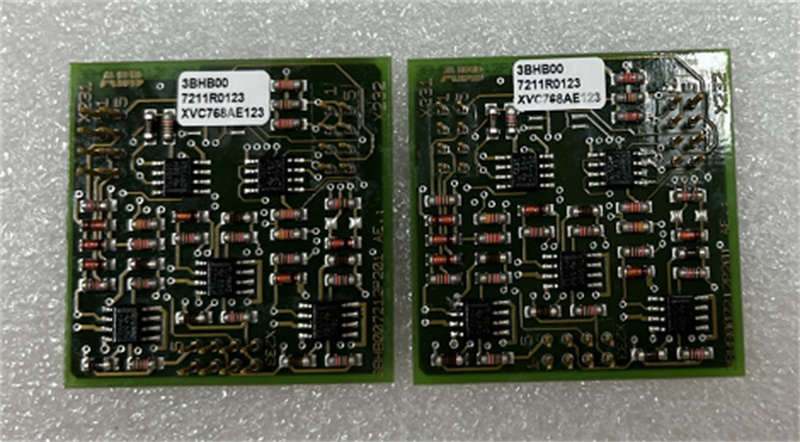

XVC768102 主控板为驱动器的控制中枢 ABB
【产品详情】
XVC768102 3BHB007211R102ABB自动化
产品参数
型号:XVC768102
产品编号:3BHB007211R102
XVC768102主控板为驱动器的控制中枢,包括控制电源、调制脉冲的产生、控制方式及保护逻辑等四部分电路。它接受来自面板和外控接口的信号,控制和保护射频单元的工作,同时它把驱动器运行的状态信号输到面板和外控接口。
IGBT主控板主要以高频感应加热主控制板和两个驱动为主,高频板技术采用了SG3525A作为PWM脉冲形成,输出脉冲频率范围20KHZ—60KHZ,脉冲间隔互为180度,死区时间可以自行调整。可适用于IGBT全桥逆变串联谐振感应加热装置用斩波器调压调功。
IGBT高频控制板,主要采用SG3525A作为PWM脉冲形成,输出脉冲频率范围20KHz—60KHz,脉冲间隔互为180度,死区时间可以自行调 整。可适用于IGBT全桥逆变串联谐振感应加热装置调频调功。
功率范围:10KW—120KW,该控制板接线少,控制集中,无须调试,工作电源电压为三路 交流双18V/1A及四个22V/0.5A的电源。
具有过流,过压,却水,多种状态指示,并提供开关型霍尔保护接口和线性霍尔保护接口,有全桥逆变 IGBT驱动电路,此板可直接组装IGBT高频感应加热装置。
XVC768102 主控板为驱动器的控制中枢 ABB
【英文介绍】
XVC768102 3BHB007211R102ABB Automation
Product parameter
Model: XVC768102
Product number: 3BHB007211R102
XVC768102 main control board is the control center of the driver, including four parts of the circuit, such as control power supply, modulation pulse generation, control mode and protection logic. It accepts the signal from the panel and the external control interface, controls and protects the work of the RF unit, and it transmits the status signal of the driver operation to the panel and the external control interface.
The IGBT main control board is mainly composed of high frequency induction heating main control board and two drivers. The high frequency board technology adopts SG3525A as PWM pulse formation, the output pulse frequency range is 20Khz-60khz, the pulse interval is 180 degrees each other, and the dead time can be adjusted by itself. It can be applied to voltage and power regulation by chopper of IGBT full-bridge inverter series resonant induction heating device.
The IGBT high-frequency control board mainly adopts SG3525A as PWM pulse formation, the output pulse frequency range is 20Khz-60khz, the pulse interval is 180 degrees each other, and the dead time can be adjusted by itself. It can be applied to frequency and power regulation of IGBT full-bridge inverter series resonant induction heating device.
Power range: 10kwe-120kW, the control board less wiring, centralized control, no need to debug, the working power supply voltage for three AC double 18V/1A and four 22V/0.5A power supply.
With over current, over voltage, but water, a variety of state indicators, and to provide switching type Hall protection interface and linear hall protection interface, a full bridge inverter IGBT drive circuit, this board can be directly assembled IGBT high frequency induction heating device.
XVC768102 主控板为驱动器的控制中枢 ABB
