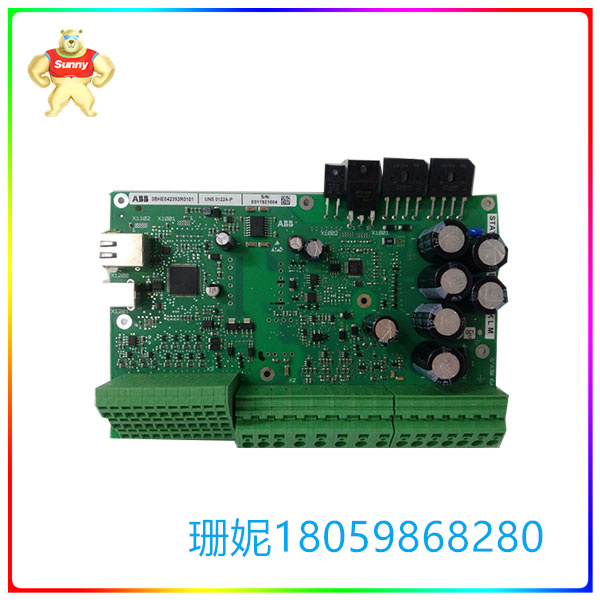

UNS0122A-P ABB  脉冲编码器模块

【产品详情】

UNS0122A-P ABB 脉冲编码器模块

品牌:ABB

型号:UNS0122A-P

产品描述

脉冲编码器是一种光学式位置检测元件,编码盘直接装在电机的旋转轴上，以测出轴的旋转角度位置和速度变化，其输出信号为电脉冲。脉冲编码器是一种光学式位置检测元件，编码盘直接装在电机的旋转轴上，以测出轴的旋转角度位置和速度变化，其输出信号为电脉冲。脉冲编码器可以用来检测物体的位置、速度和加速度等参数，常用于数控机床、机器人等自动化控制系统中，还可以用于测量旋转或线性运动，将物理运动转化为电信号，以供计算机或其他电子设备处理。

此外，脉冲编码器还可以计算目标物体的运动速度和加速度，因为可以测量两个时间点之间标尺的相对位移，从而计算出运动的速度和加速度，在机器人、汽车、航空航天等领域有着广泛的应用。

优缺

优点是无摩擦和磨损，驱动力矩小,响应速度快。缺点是抗污染能力差，容易损坏。

应用

脉冲编码器是一种角位移传感器，同时也作为速度检测装置用于速度检测，它能够把机械转角变成电脉冲。脉冲编码器可分为光电式、接触式和电磁式三三种,其中,光电式应用比较多。

 UNS0122A-P ABB  脉冲编码器模块

【英文介绍】

UNS0122A-P ABB pulse encoder module

Brand :ABB

Model :UNS0122A-P

Product description

The pulse encoder is an optical position detection element. The encoding disk is directly installed on the rotating shaft of the motor to measure the rotation Angle position and speed change of the shaft. The output signal is an electrical pulse. The pulse encoder is an optical position detection element. The encoding disk is directly installed on the rotating shaft of the motor to measure the rotation Angle position and speed change of the shaft. The output signal is an electrical pulse. Pulse encoders can be used to detect the position, speed and acceleration of the object and other parameters, often used in CNC machine tools, robots and other automatic control systems, can also be used to measure rotational or linear motion, the physical motion into electrical signals for computer or other electronic equipment processing.

In addition, the pulse encoder can also calculate the speed and acceleration of the target object, because it can measure the relative displacement of the scale between two time points, so as to calculate the speed and acceleration of the movement, which has a wide range of applications in robotics, automobiles, aerospace and other fields.

Advantages and disadvantages

The advantages are no friction and wear, small driving torque and fast response speed. The disadvantage is that the anti-pollution ability is poor and easy to damage.

Apply

The pulse encoder is a kind of angular displacement sensor, and it is also used as a speed detection device for speed detection, which can turn the mechanical Angle into an electrical pulse. Pulse encoders can be divided into photoelectric, contact and electromagnetic three kinds, of which photoelectric application is more.

 UNS0122A-P ABB  脉冲编码器模块
