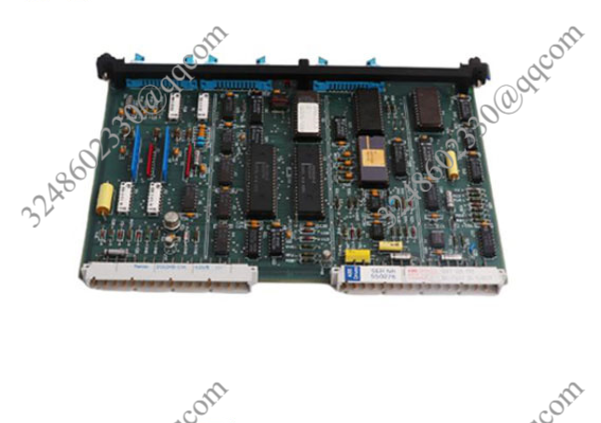

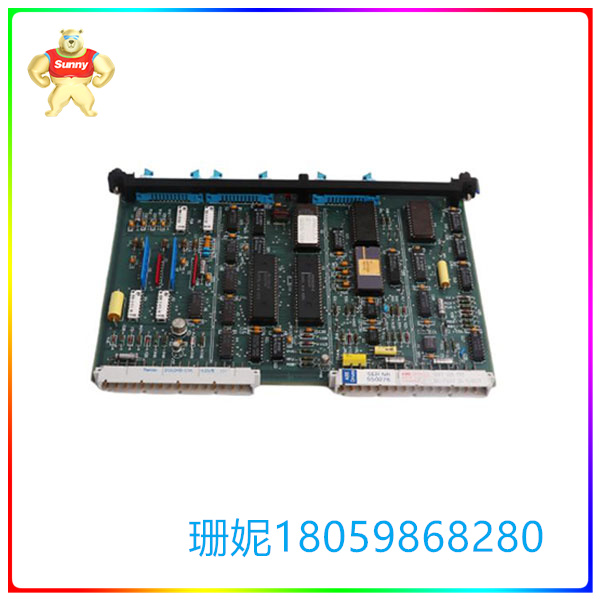

SAFT 185 TBC 输入模块 ABB
【产品详情】
品牌:ABB
P/ n：SAFT 185 TBC
目录描述:输入模块
原产地:美国
输入模块需要三个过程。它们是：
1. 使用 IEC 61131 工具集的字典编辑器为字段输入数据和模块
状态数据定义必要的 I/O 变量。
2. 在 I/O 连接编辑器中为每个 I/O 模块创建
I/O 模块定义。I/O 模块定义定义物理信息，例如机箱和插槽位置，
并允许将变量连接到
模块的 I/O 通道。
3. 使用受信任®的系统配置管理器，定义自定义
LED 指示灯模式、每通道阈值电平和噪声过滤以及其他
模块设置。
如果主模块是当前活动模块，则“主模块处于活动状态”通道设置为非零，即活动模块
位于 OEM 参数中定义的机箱和插槽
编号中。
如果正在
模拟活动模块，则“活动模块已模拟”通道设置为“1”，仅当模块不存在或无法运行且已在 System.INI 文件中的模块
配置中设置了模拟启用时，才会设置此通道。
每个布尔输入变量都可以配置为自动
事件序列 （SOE） 日志记录。这适用于输入状态和线路故障状态
变量。在数据字典编辑器中定义变量
期间，为 SOE 配置布尔变量。要选择 SOE，请按“布尔变量定义”对话框中的“扩展”按钮以打开“扩展
SAFT 185 TBC 输入模块 ABB
【英文介绍】
Brand :ABB
P/ n: SAFT 185 TBC
Directory description: Enter the module
Country of Origin: USA
The input module requires three processes. They are:
1. Use the dictionary editor of the IEC 61131 tool set to enter data and modules for the fields
The status data defines the necessary I/O variables.
2. Create one for each I/O module in the I/O Connection editor
I/O module definition. I/O module definition Defines physical information, such as chassis and slot locations,
And allows variables to be connected to
Module I/O channel.
3. Use Trusted ® System Configuration Manager to define customizations
LED indicator mode, threshold level per channel and noise filtering, among others
Module Settings.
If the main module is a currently active module, the "Main module is active" channel is set to non-zero, that is, the active module
Located in the chassis and slot defined in OEM parameters
Number in progress.
If is
If an active module is simulated, the Active Module emulated channel is set to 1, only if the module does not exist or cannot run and is already in the System.INI file
This channel is set only when emulation is enabled in the configuration.
Each Boolean input variable can be configured to be automatic
Event sequence (SOE) logging. This applies to both the input state and the line fault state
Variable. Define variables in the data dictionary editor
During this period, the SOE is configured with Boolean variables. To select SOE, press the Extension button in the Boolean Variable Definition dialog box to open the Extension
SAFT 185 TBC 输入模块 ABB
