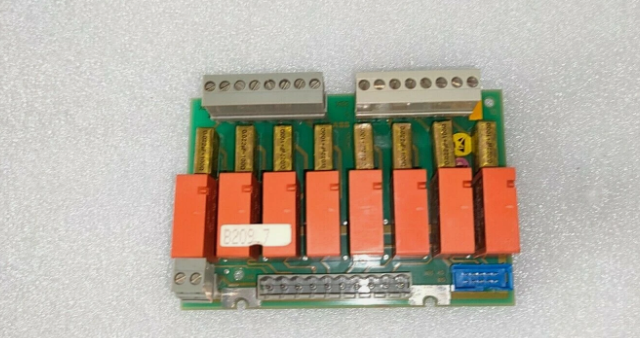

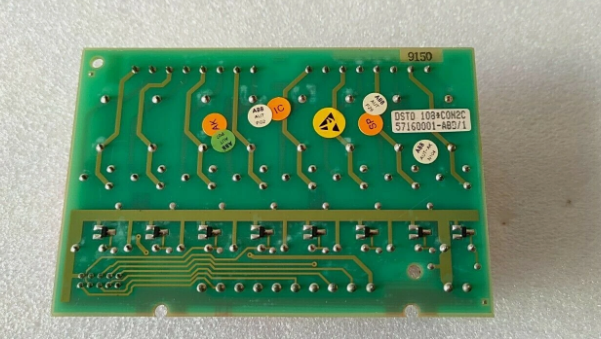

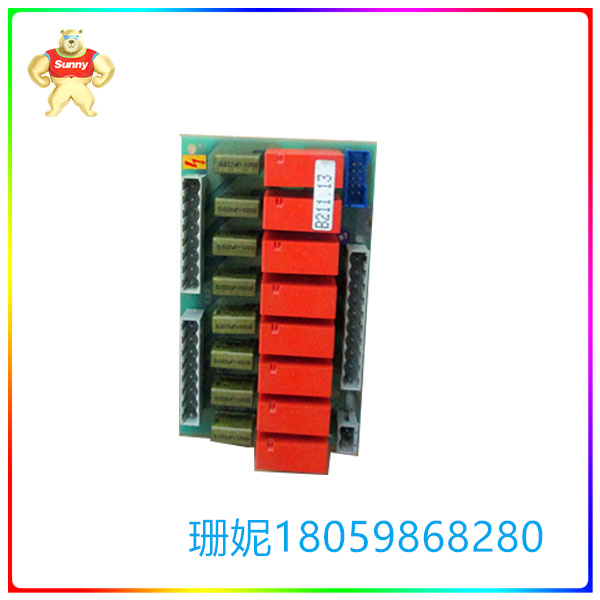

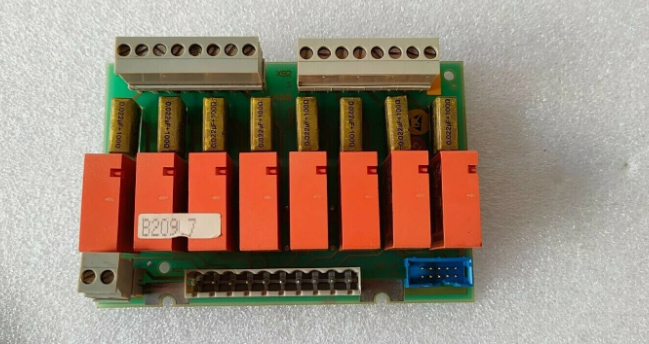

DSTD108-57160001-ABD ABB DSTD 108 连接单元 8 通道 24-250 VAC
【产品详情】
57160001-ABD
基本信息
产品编号:57160001-ABD
ABB型号名称:DSTD 108
目录说明:DSTD 108 连接单元,用于 8 通道 24-250 VAC
附加信息
介质描述:带 8 个继电器 C 的连接单元
技术信息:DSTD 108 连接单元,带 8 个继电器通道
输入:24 V 直流输出:24-250 V 交流/直流
继电器数据:负载电流:3 V
时最大 0 A,最小 1.24 A 请参阅安装螺钉套件:3BSE021202R1
或 2.5 VA。分断能力交流.max 720 VA 在 cos F >
0.4 d.c.max 44 W 在 L/R <40 ms
注意!本部分不受2011/65/EU(RoHS)第2(4)(c)、(e)、(f)和(j)
条规定的范围
(参考:3BSE088609 – 欧盟符合
性声明-ABBAdvant Master Process Control System)
产品类型:未分类
订购
海关编码:853890-- 适合单独或主要与品目 85.35、85.36 或 85.37 设备一起使用的部件。
海关关税编号:85389091
尺寸
产品净重:0.22 千克
环境的
报废电子电气设备类别:5.小型设备(外部尺寸不超过50厘米)
电池数量:0
DSTD108-57160001-ABD ABB DSTD 108 连接单元 8 通道 24-250 VAC
【英文介绍】
57160001-ABD
Basic information
Product Number: 57160001-ABD
ABB model name: DSTD 108
Catalog Description: DSTD 108 connection unit for 8-channel 24-250 VAC
Additional information
Medium description: Connection unit with 8 relay C
Technical information: DSTD 108 connection unit with 8 relay channels
Input: 24 V DC Output: 24-250 V AC/DC
Relay data: Load current: 3 V
When the maximum is 0 A, the minimum is 1.24 A, see the mounting screw kit: 3BSE021202R1
Or 2.5 VA. Breaking capacity AC.max 720 VA in cos F >
0.4 D.C.AX 44 W in L/R <40 ms
Attention! This part is not subject to paragraphs 2 (4) (c), (e), (f) and (j) of 2011/65/EU (RoHS)
The scope of the article
Reference: 3BSE088609 - EU compliance
Sex Declaration -ABBAdvant Master Process Control System)
Product type: Not classified
order
Customs Code: 853890- Parts suitable for use alone or mainly with equipment of heading 85.35, 85.36 or 85.37.
Customs Tariff Number: 85389091
dimension
Net weight: 0.22 kg
environmental
Category of discarded electrical and electronic equipment: 5. Small equipment (external size does not exceed 50 cm)
Battery number: 0
