AC800F ABB AC 800F控制器
【产品详情】
| AC 800F控制器技术数据概览 | |
| CPU | 32-bit super scalar RISC 处理器实现快速bit处理 |
| RAM | 16 MB (SD-RAM)用于电池备份应用程序 |
| 任务执行 | 周期性(可配置周期时间 5 ms) |
| 事件驱动(预定义的事件) | |
| 尽可能快的(PLC模式) | |
| 接口 | 以太网 PROFIBUS FOUNDATION Fieldbus MODBUS TCP CAN总线 |
| 串口: RS485/422/232 Modbus protocol IEC 60870-5-101 Telecontrol protocol | |
| 外围温度 | 0...60°C (32...140°F)，不需要强制冷却 |
| 认证 | CE，NAMUR，UL，ISA-S71.04 (G3 severity level) |
AC 800F控制器支持过程自动化应用的所有主要现场总线，并且支持冗余配置。单个控制器典型带点能力约为1000个I/O点。

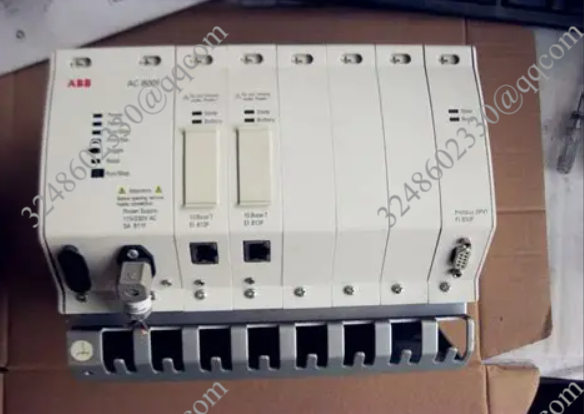

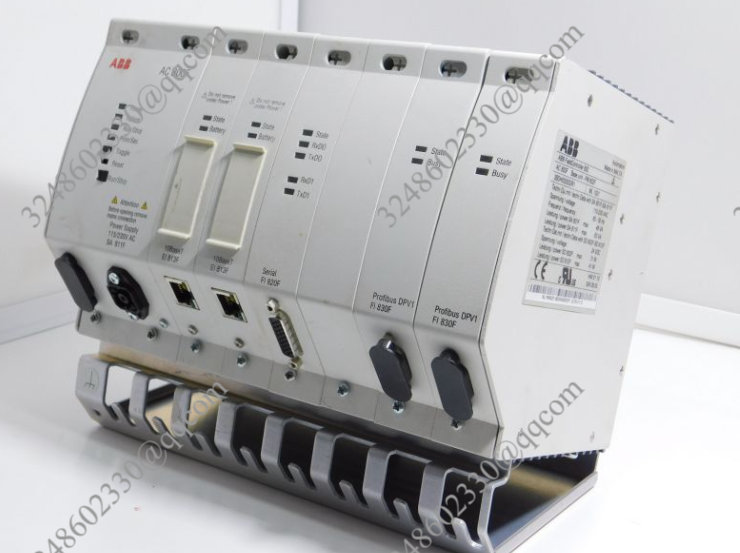

AC 800F控制器具有模块化结构。CPU设计为背板方式，根据应用的不同连接不同模块——供电单元、以太网和现场总线模块，主要支持的总线协议包括：
PROFIBUS-DPV1
FOUNDATION Fieldbus HSE
MODBUS（主/从，RTU或ASCII）
IEC 60870-5-101, IEC 60870-5-104
用于Freelance机架式I/O的CAN总线
现场总线和设备连接能够完全通过Freelance工程师站软件进行组态和参数设置。组态过程无需其它外部软件工具。
AC800F ABB AC 800F控制器
【英文介绍】
The AC 800F controller supports all major fieldbuses for process automation applications and supports redundant configurations. A single controller typically has a dot capacity of about 1000 I/O points.
The AC 800F controller has a modular structure. The CPU is designed as a backplane to connect different modules - power supply unit, Ethernet and fieldbus modules - according to different applications. The main supported bus protocols include:
PROFIBUS-DPV1
FOUNDATION Fieldbus HSE
MODBUS (Master/slave, RTU or ASCII)
IEC 60870-5-101, IEC 60870-5-104
CAN bus for Freelance rack-mounted I/O
The fieldbus and device connection can be configured and parameterized entirely through the Freelance engineer station software. No additional external software tools are required for the configuration process.
