8C-PCNT02 热电偶和/或 RTD 霍尼韦尔

【产品详情】

霍尼韦尔C300控制器为分布式控制系统(DCS)提供强大而稳健的控制。

C300是霍尼韦尔现场验证的确定性控制执行环境(CEE)的一个节点。

核心软件。CEE软件提供了优越的控制执行和调度环境。控制

每个控制节点的策略都是通过一个通用的Control Builder配置和加载的

直观的工程工具。

除了标准和健壮的预建功能块和算法库，C300控制器也

支持自定义算法块(cab)。自定义算法块在目的和结构上与

与Control Builder一起分发的标准功能块。但是，cab具有用户定义的算法

以及数据结构，允许针对特定需求开发定制的策略。

C300控制器与系列8 I/O共享其硬件设计，提供了一种创新的设计，减少了数据流

占地面积、安装和维护成本。C300控制模块安装在C300 Input上

输出终止组件(IOTA)。C300 IOTA仅包含FTE地址等无源设备

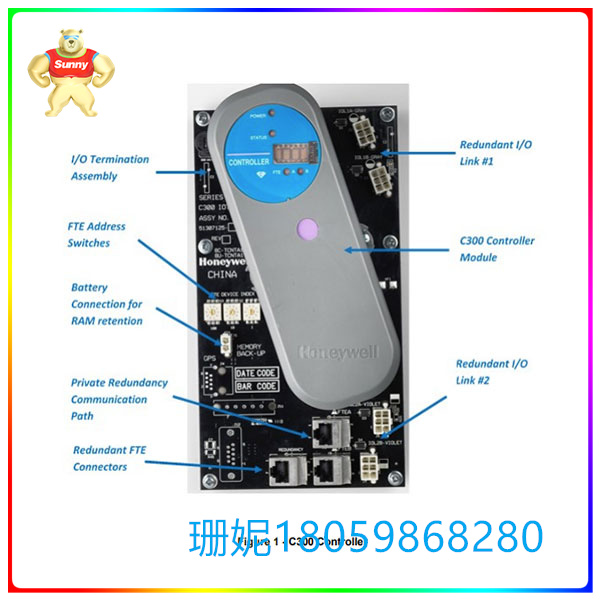

开关。下面的图1描述了IOTA组件。

输入类型 热电偶和/或 RTD

输入通道 64 个完全隔离的通道到通道、通道到 PM、和通道到电源共同在 16通道增量。

输入扫描率 1 秒由 IOM 固定（高达 64 通道/秒最大限度。）

信道带宽 0 至 4.7 赫兹（-3 分贝）

标称输入范围（仅限 TC） -20 至 +100 毫伏

最大正常模式连续输入无损坏（任何热电偶类型配置） -10 至 +10 伏 (TC)-1 至 +2 伏 @ 100 毫安 (RTD)

8C-PCNT02 热电偶和/或 RTD 霍尼韦尔

【英文介绍】

The Honeywell C300 controller provides powerful and robust control for distributed control systems (DCS).

The C300 is a node in Honeywell's field-proven Deterministic Control Execution Environment (CEE).

The core software. CEE software provides a superior control execution and scheduling environment. Controls

The policies for each Control node are configured and loaded through a generic Control Builder

Intuitive engineering tools.

In addition to standard and robust pre-built function blocks and algorithms libraries, the C300 controller also

Supports Custom algorithm blocks (cab). A custom algorithm block is similar in purpose and structure

A standard feature block distributed with Control Builder. However, cab has a user-defined algorithm

And data structures that allow customized policies to be developed for specific needs.

The C300 controller shares its hardware design with the Series 8 I/O, providing an innovative design with reduced data flow

Floor space, installation and maintenance costs. The C300 control module is installed on the C300 Input

Output Termination Component (IOTA). The C300 IOTA contains only passive devices such as FTE addresses

Switch. Figure 1 below depicts the IOTA components.

Input type Thermocouple and/or RTD

Input channels 64 fully isolated channel-to-channel, channel-to-PM, and channel-to-power in 16-channel increments.

Input scan rate 1 SEC fixed by IOM (up to 64 channels/SEC Max.)

Channel bandwidth 0 to 4.7 Hz (-3 dB)

Nominal input range (TC only) -20 to +100 millivolts

Maximum Normal mode Continuous input No damage (any thermocouple type configuration) -10 to +10 volts (TC)-1 to +2 volts @ 100 mA (RTD)
