531X185CPTALG1 GE板组件 有六个变压器

【产品详情】

531X185CPTALG1是GE制造的电路板组件，作为DC-300驱动器的一部分。它还可用于通用电气制造的其他通用驱动系统。GE通用驱动器是灵活，强大的系统，主要用于工业应用。您的用户指南或系统手册将帮助您确定您的特定系统是否与 531x 系列主板兼容。

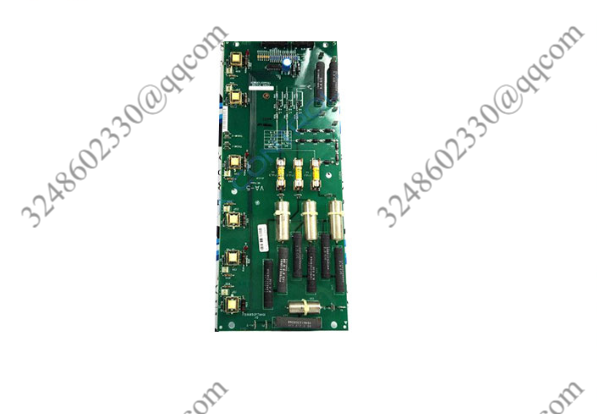

531X185CPTALG1 是一种长矩形板，组件很少。 电路板的底部边缘有六个变压器放置在一条间隔良好的线上。 其中三个组件与红色 LED 指示灯配对。每个元件附近都有一个两针接头连接器，以及三个不同材料的电阻器。

531X185CPTALG1 将三个保险丝组件安装到保险丝夹中。 该板具有四个通孔电解电容器和一个超级电容器。它有绕线电阻器、碳复合电阻器和金属膜电阻器。

531X185CPTALG1标有代码VA-5。它在每个角落钻两次，并在板体内有额外的钻痕。该板由两个垂直引脚电缆连接器（公头）以及多个卡入式连接器构成。电路板的中心被表面上的印刷表格占据，允许用户立即获得电路板功能的信息。有关该板操作的更多信息，或有关板组件的信息，请参阅本系列中引用此特定板号的手册、数据表或用户指南。

531X185CPTALG1 GE板组件 有六个变压器

【英文介绍】

The 531X185CPTALG1 is a circuit board component manufactured by GE as part of the DC-300 driver. It can also be used in other general-purpose drive systems manufactured by GE. GE Universal Drives are flexible, powerful systems primarily used in industrial applications. Your user guide or system manual will help you determine if your particular system is compatible with the 531x Series motherboard.

The 531X185CPTALG1 is a long rectangular board with few components. The bottom edge of the board has six transformers placed in a well-spaced line. Three of the components are paired with red LED indicators. There is a two-pin connector near each element, as well as three resistors of different materials.

531X185CPTALG1 Installs the three fuse assemblies into the fuse clamp. The plate has four through-hole electrolytic capacitors and one supercapacitor. It has winding resistors, carbon composite resistors and metal film resistors.

531X185CPTALG1 is labeled with code VA-5. It is drilled twice in each corner and has additional drill marks inside the board. The board consists of two vertical pin cable connectors (male) and a plurality of snap-in connectors. The center of the board is occupied by a printed form on the surface, allowing the user to immediately obtain information about the board's function. For more information about the operation of this board, or about board components, see the manual, data sheet, or user guide in this series that references this particular board number.

531X185CPTALG1 GE板组件 有六个变压器
