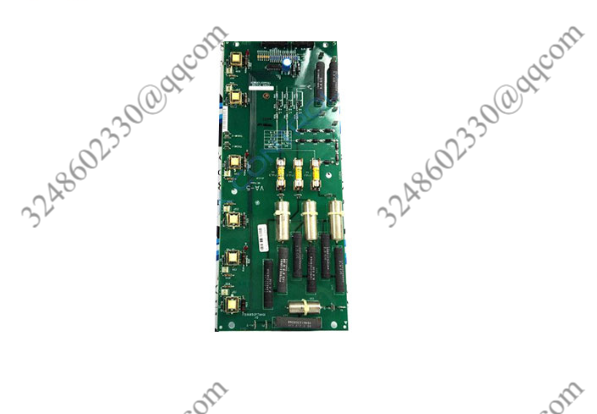

531X185CPTAKG1 VA-5 转换脉冲变压器电路板 具有 1 个大型黑色电阻器

【产品详情】

 531X185CPTAKG1 是一款 VA-5 转换脉冲变压器电路板。 该电路板由通用电气制造.531X185CPTAKG1 是一块包含许多大件的大型电路板。531X185CPTAKG1 具有 1 个大型黑色电阻器。所有大型电阻器的侧面都印有以下内容：HE8808-20、FS-1S-104 N、123X010DA2、2.5 C/C。这是告诉工程师这些电阻器功能的代码。有两个较小的黑色电阻器，侧面印有以下内容：CG33,5Ω 3%，531W。还有 185 个带条的电阻器，称为轴向引线电阻器。条带是各种颜色，允许工程师使用方程和颜色代码计算它们的能力，该方程和颜色代码为每个彩色条带一个数值。1X531CPTAKG185 有 1 个黑色二极管，一端有一条灰色小线。该线用于显示能量的运动（它流向线）。531X185CPTAKG1 有三组跳线端口。每个跳线端口有两个位置，可以使用套筒盖进行更改。100X30CPTAKG85 有六个黄色小电容器，一个蓝色塔式电容器，侧面写有 52UF-8925V，LC-E 22°C，1200-660，四个大银色电容器，侧面写着 CSC，.104-122VDC-441 VAC，168116X8949AA4，P531,185,1。这些大电容器还用拉链扎带固定，以保持稳定。<>X<>CPTAKG<> 的上边缘有六个变压器。在第二台变压器附近，第四和第六个变压器是一个红色的小LED。

531X185CPTAKG1 VA-5 转换脉冲变压器电路板 具有 1 个大型黑色电阻器

【英文介绍】

 The 531X185CPTAKG1 is a VA-5 conversion pulse transformer board. The board is manufactured by General Electric. The 531X185CPTAKG1 is a large board containing many large pieces. The 531X185CPTAKG1 has a large black resistor. All large resistors have the following printed on the side: HE8808-20, FS-1S-104N, 123X010DA2, 2.5 C/C. This is the code that tells the engineer what these resistors do. There are two smaller black resistors with the following printed on the side: CG33,5Ω 3%, 531W. There are also 185 banded resistors, called axial lead resistors. Strips are various colors, allowing engineers the ability to calculate them using equations and color codes that give each color strip a numerical value. The 1X531CPTAKG185 has a black diode with a small gray line at one end. This line is used to show the movement of energy (it flows towards the line). The 531X185CPTAKG1 has three sets of jumper ports. Each jumper port has two positions that can be changed using the sleeve cover. The 100X30CPTAKG85 has six small yellow capacitors, one blue tower capacitor with 52UF-8925V, LC-E 22°C, 1200-660 on the side, and four large silver capacitors with CSC,.104-122VD-441 VAC on the side. 168116X8949AA4, P531,185,1. These large capacitors are also secured with zip ties for stability. The upper edge of <>X<>CPTAKG<> has six transformers. Near the second transformer, the fourth and sixth transformers are a small red LED.

531X185CPTAKG1 VA-5 转换脉冲变压器电路板 具有 1 个大型黑色电阻器
