531X184IPTAFG1 反脉冲变压器卡 GE  有八个连接器

【产品详情】

531X184IPTAFG1--反脉冲变压器卡

531X184IPTAFG1是GE制造的PCB组件，适用于其多个通用驱动系统，如DC-300或AC-300。其中许多系统现已过时。然而，它们是由GE设计的，用于各种工业应用。

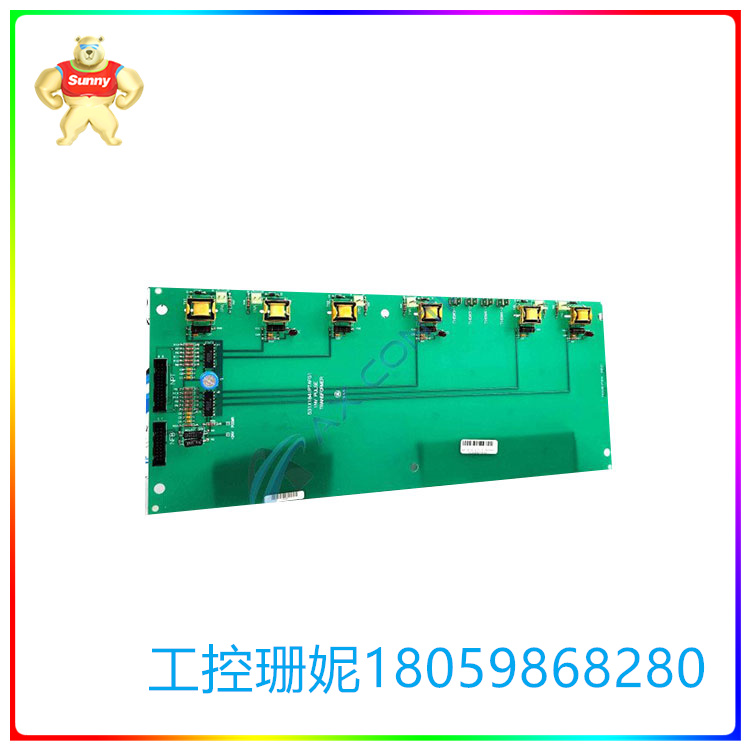

531X184IPTAFG1 是一款反脉冲变压器板。它的表面成分很少。大多数组件单独分组在电路板的左边缘和上边缘。

531X184IPTAFG1 有八个连接器，用于与其他电路板或板外组件通信。这包括六个 2 针针座连接器（公头）和两个公头垂直针电缆连接器。针座沿顶部边缘放置，电缆连接器位于左边缘。该板还具有两个端子引脚连接器。这些标有 24V 和 PCOMR。最后，有八个卡入式连接器沿着电路板的顶部边缘放置在一条线上。

531X184IPTAFG1 有六个变压器。每个变压器与一个陶瓷电容器、一个二极管和两个电阻器（一个CCR和一个金属膜）配对。三个晶体管旁边还有一个LED指示灯。

531X184IPTAFG1有两个集成电路。 它们之间有一个大容量电解电容器。电路板在每个角落和每个长边上钻孔，以便安装。通用电气最初负责531x板的所有技术支持。请参考GE用户指南、数据表或手册，了解有关该板的安装、维护或操作的更多信息。

531X184IPTAFG1 反脉冲变压器卡 GE  有八个连接器

【英文介绍】

531X184IPTAFG1- reverse pulse transformer card

The 531X184IPTAFG1 is a PCB component manufactured by GE for use in several of its general-purpose drive systems, such as the DC-300 or AC-300. Many of these systems are now obsolete. However, they were designed by GE for use in a variety of industrial applications.

The 531X184IPTAFG1 is an anti-pulse transformer board. It has very little surface composition. Most components are grouped separately on the left and top edges of the board.

The 531X184IPTAFG1 has eight connectors for communicating with other board or off-board components. This includes six 2-pin base connectors (male) and two male vertical pin cable connectors. The pin holder is placed along the top edge and the cable connector is located on the left edge. The board also has two terminal pin connectors. These are labeled 24V and PCOMR. Finally, there are eight snap-in connectors placed in a line along the top edge of the board.

The 531X184IPTAFG1 has six transformers. Each transformer is paired with a ceramic capacitor, a diode, and two resistors (a CCR and a metal film). There is also an LED indicator next to the three transistors.

The 531X184IPTAFG1 has two integrated circuits. Between them is a high-capacity electrolytic capacitor. Boards are drilled in each corner and on each long edge for easy installation. Ge was initially responsible for all technical support for the 531x board. Refer to the GE user Guide, data sheet, or manual for more information about the installation, maintenance, or operation of the board.
