SDCS-POW-4-SD 是为DCS800转换器模块设计

【产品详情】

产品编号:64162993

ABB型号:SDCS-POW-4

目录描述:SDCS-POW-4;电力供应

长描述:SDCS-POW-4

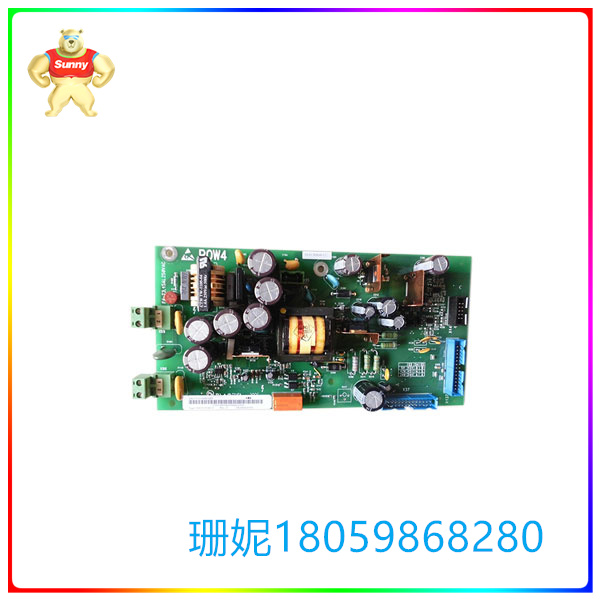

SDCS-POW-4板是为DCS800转换器模块设计的，安装在电子支架上。适用于D5、D6、D7 (> 1000a，重建systemDCS800-R)所有型号模块。SDCS-POW-4在飞回配置中工作在切换模式基础上。它为SDCS-CON-4和所有其他电子板产生所有必要的直流电压。输入电压自动检测并设置为230v AC或115v AC。以下图显示了编码器电源电压选择的说明

SDCS-POW-4-SD 是为DCS800转换器模块设计

【英文介绍】

 The SDCS POW-4 board is designed for the DCS800 converter module and is mounted on an electronic holder. It applies to all models of D5, D6, and D7 (> 1000a, rebuild systemDCS800-R). Sdss-pow-4 works in fly-back configuration on a switching mode basis. It generates all the necessary DC voltage for SDSC-CON-4 and all other electronic boards. The input voltage is automatically detected and set to 230v AC or 115v AC. The following figure shows an illustration of the encoder power supply voltage selection

SDCS-POW-4-SD 是为DCS800转换器模块设计
