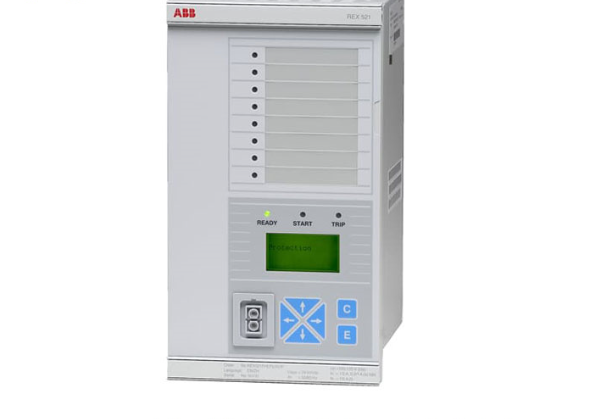

REX521GHHGSH50G 馈线保护继电器 中压网络中的保护

【产品详情】

• 产品ID:
• REX521GHHGSH50G

• ABB型号名称:
• PROTECTION UNIT

• 详细描述:
• PROTECTION UNIT
• 原产地:
• Finland (FI)

• 海关关税号:
• 85364900

• 外形尺寸:
• Spare_Parts

• 毛重:
• 5 kg

• 发票说明:
• PROTECTION UNIT

• 按订单生产:
• No

• 最小起订量:
• 1 piece

• 订单倍数:
• 1 piece


馈线保护继电器 REX 521 设计用于中压网络中的保护、控制、测量和监控，以及断路器控制电机驱动器中的大中型三相交流电机的保护。典型应用包括进料、出料馈线和电机馈线以及变电站保护。此外，该继电器可以用作电力变压器的后备保护和高压线路保护继电器的备用保护。

保护继电器配有用于传统电流和电压互感器的通电输入。此外，还提供带电流和电压传感器输入的硬件版本。

REX 521馈线保护继电器进一步丰富了附加功能，为您的电网提供更高效的保护、扩展的测量功能、监控、控制功能和连接性。REX 521主要用于单母线解决方案，使用一个断路器进行各种保护。

通过预制的标准配置，该装置可用于不同类型的网络，典型应用包括径向隔离中性、谐振接地、固体接地和电阻接地系统中的输入和输出馈线。

REX521GHHGSH50G 馈线保护继电器 中压网络中的保护

【英文介绍】

The feeder protection relay REX 521 is designed for protection, control, measurement and monitoring in medium voltage networks, as well as protection of medium to large three-phase AC motors in circuit breaker control motor drivers. Typical applications include feed, discharge and motor feeders and substation protection. In addition, the relay can be used as backup protection for power transformers and backup protection for high-voltage line protection relays.

Protective relays are equipped with energized inputs for conventional current and voltage transformers. In addition, hardware versions with current and voltage sensor inputs are available.

The REX 521 feeder protection relay is further enriched with additional features to provide more efficient protection, expanded measurement, monitoring, control and connectivity for your power grid. REX 521 is primarily used in single-bus solutions, using a single circuit breaker for various protections.

With prefabricated standard configurations, the unit can be used in different types of networks, with typical applications including input and output feeders in radially isolated neutral, resonant grounded, solid grounded and resistance grounded systems.

Radius

Protection, control, measurement and monitoring in medium voltage networks, as well as protection of large and medium-sized three-phase AC motors

Product advantage

Multifunctional protection

Product characteristics

Energized input to conventional current and voltage transformers

Versions with current and voltage sensor inputs are also available

Prefabricated standard configuration

REX521GHHGSH50G 馈线保护继电器 中压网络中的保护
