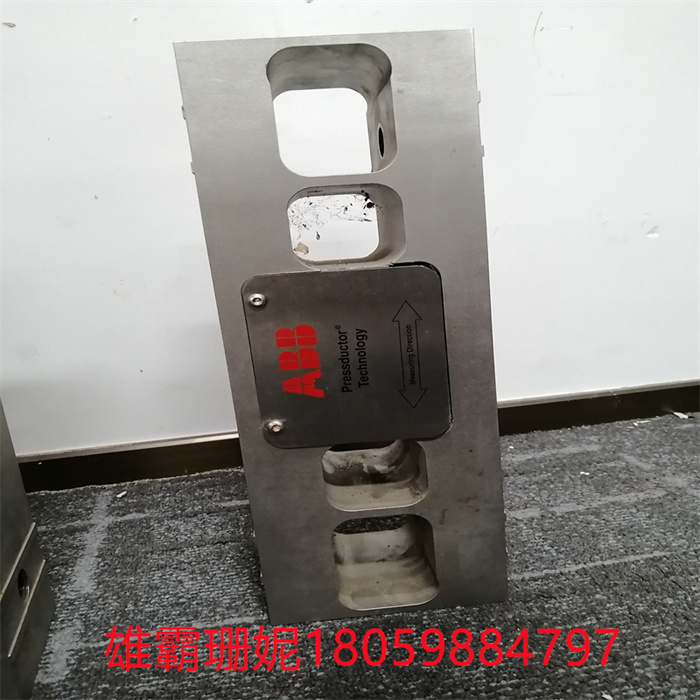

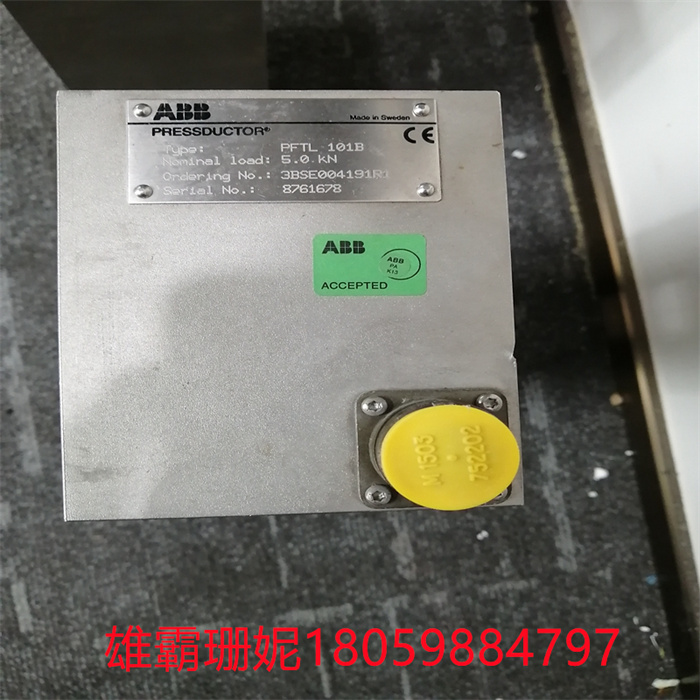

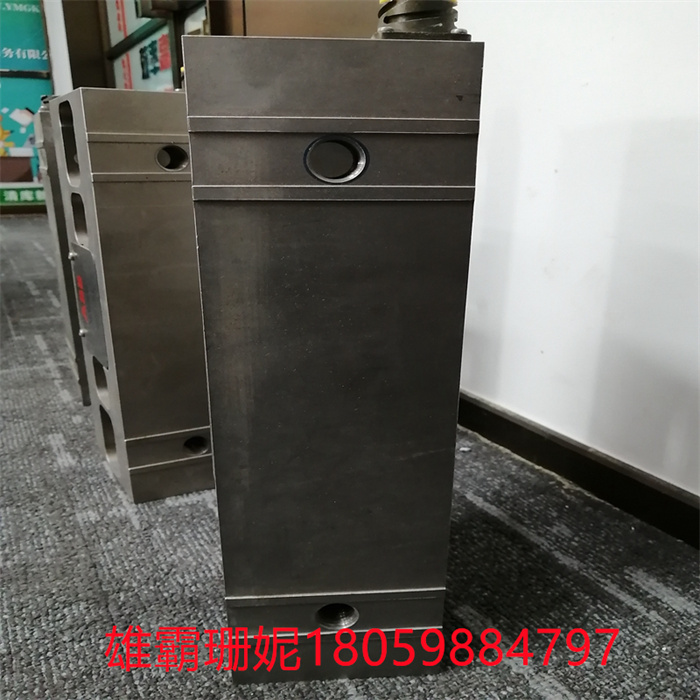

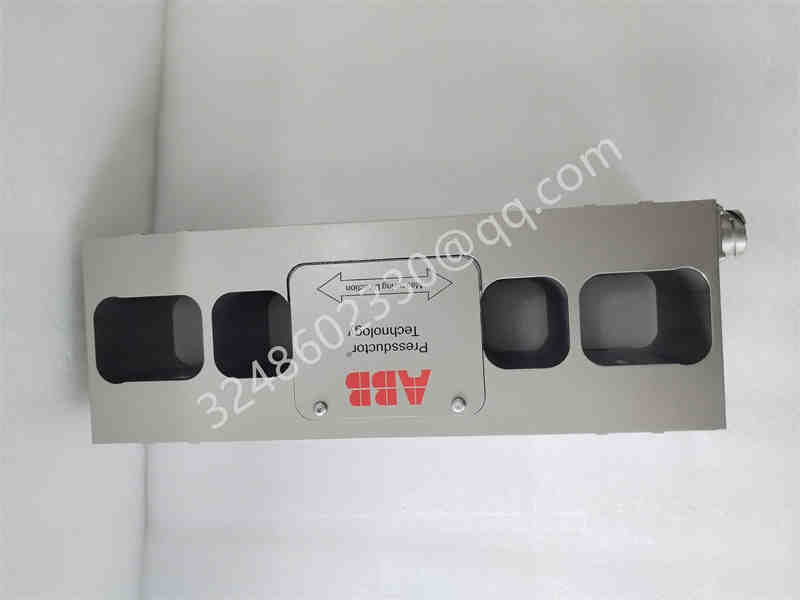

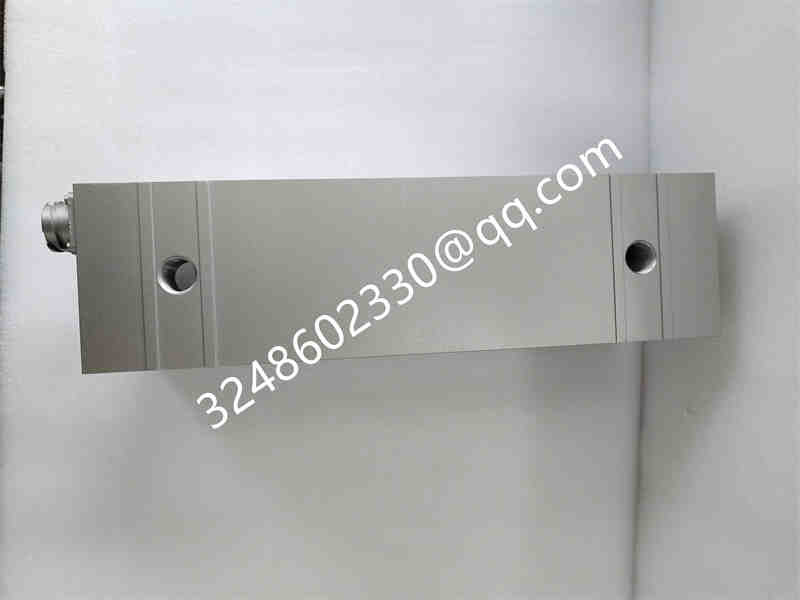

ABB PFTL101B 5.0KN 3BSE004191R1 张力称重传感器

ABB PFTL101B 5.0KN 3BSE004191R1 张力称重传感器

ABB PFTL101B 5.0KN 3BSE004191R1 张力称重传感器

ABB PFTL101B5.0KN3BSE004191R1张力传感器。ABB测量与分析压力传感器枕形称重传感器水平测量PETL101测压元件安装在滚动轴承下，测量平行于安装表面的力。来自网/条的反作用力与网/条的张力成比例，通过辑和轴承传递到测压元件

测压元件通过接线盒连接到控制单元。控制单元将称重传感器信号转换成与反作用力成比例的DC电压。根据选择的控制单元，可能有两个单独称重传感器的模拟信号(A和B)、称重传感器信号的总和(A+B)和/或称重传感器信号之间的差值(A-B).

ABB PFTL101B 5.0KN 3BSE004191R1 张力称重传感器

ABB PFTL101B5. 0 kn3bse004191r1 tension sensor. ABB Measurement and Analysis Pressure sensors Pillow load cell Horizontal measurement The PETL101 load cell is mounted under a rolling bearing and measures forces parallel to the mounting surface. The reaction force from the mesh/strip is proportional to the tension of the mesh/strip and is transmitted to the load cell through the hose and bearing

The load cell is connected to the control unit through a junction box. The control unit converts the load cell signal into a DC voltage proportional to the reaction force. Depending on the control unit selected, there may be analog signals (A and B) of two separate load cells, the sum of load cell signals (A+B), and/or the difference between load cell signals (A-B).

ABB PFTL101B 5.0KN 3BSE004191R1 张力称重传感器
