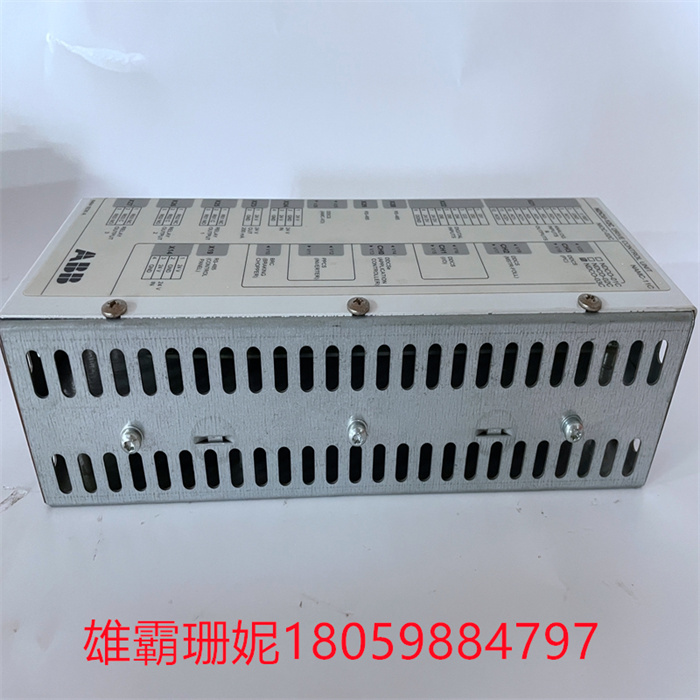

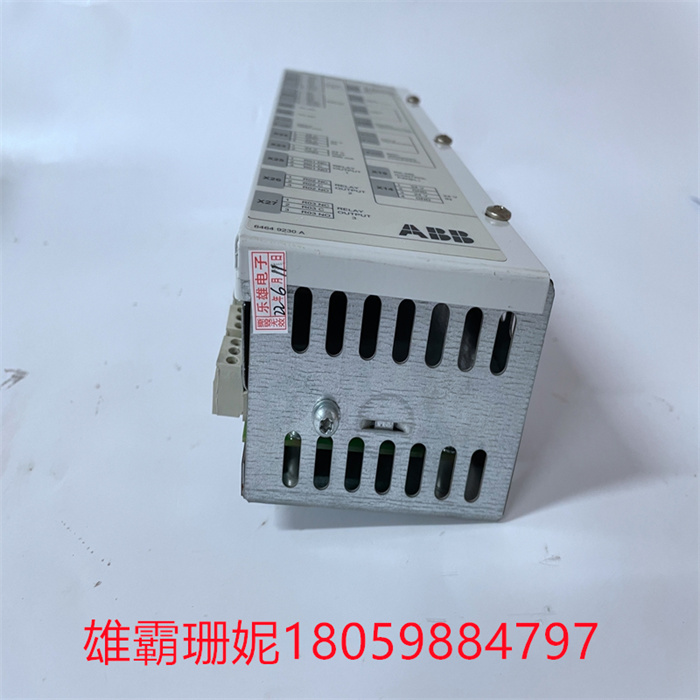

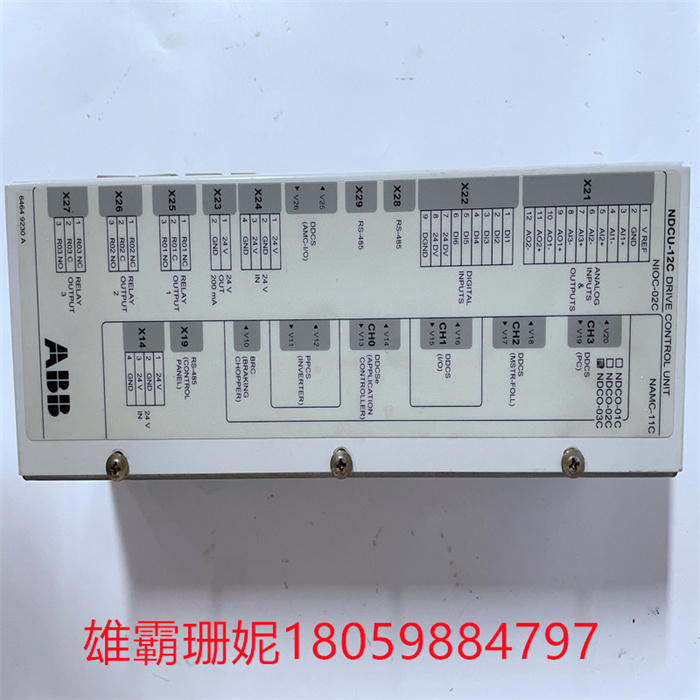

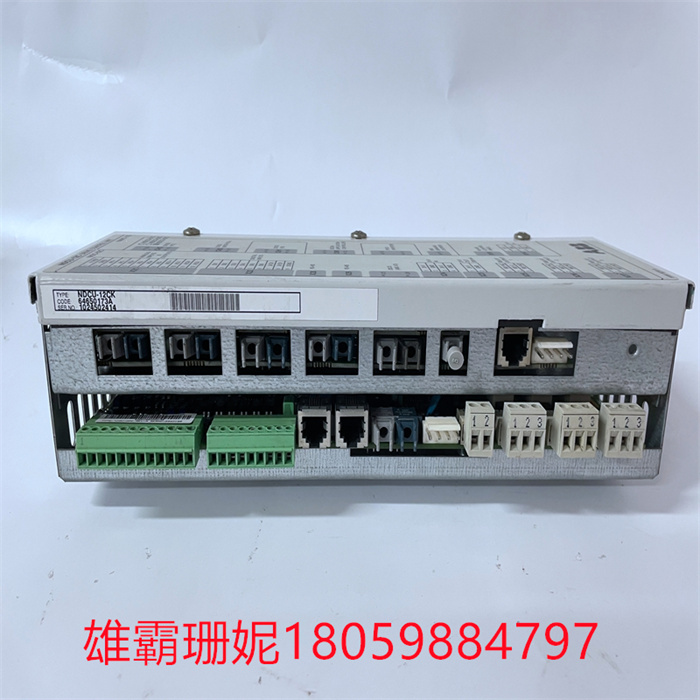

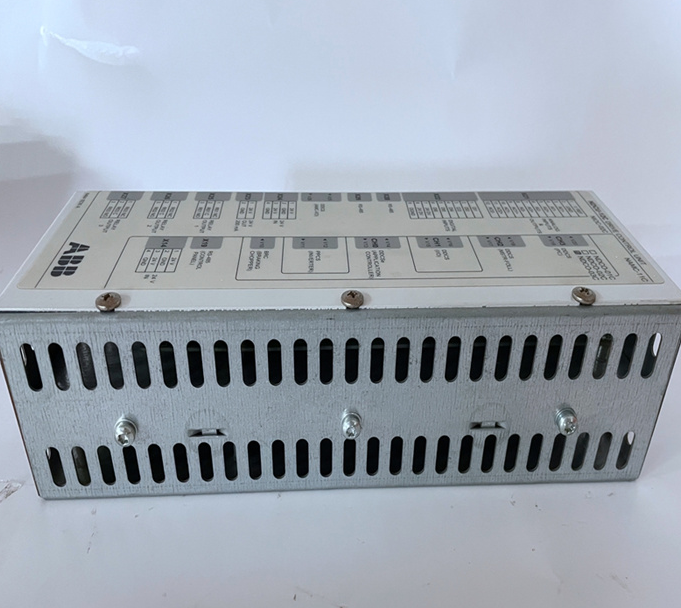

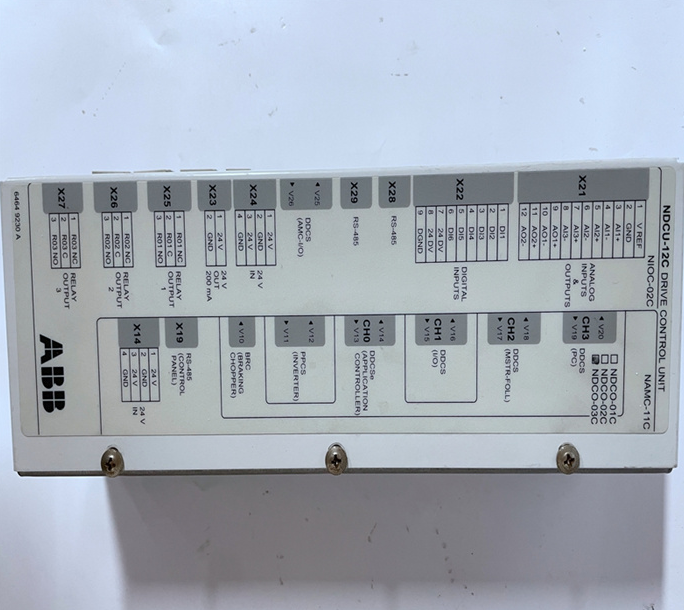

ABB NDCU-12C NDCU-12CK DCS系统 PLC模块

ABB NDCU-12C NDCU-12CK  DCS系统 PLC模块

ABB NDCU-12C NDCU-12CK  DCS系统 PLC模块

ABB在其产品系列中增加了另一种 紧凑的无外壳运动控制器 运动控制器非常适合集成到设备制造和医疗技术应用中。在 36 V 和 3 A（峰值电流 9 A）的情况下，它涵盖的功率范围高达约 100 W，适用于带编码器的直流电机、无刷驱动器或直线电机。

微型电机和微型电机只有与匹配的运动控制器结合使用才能成为可靠的驱动系统。这就是为什么驱动 ABB（见公司框）提供的 电机系列包括多种运动控制器选择，这些运动控制器设计为不同功率等级，带或不带外壳，适用于各种应用。现在，无外壳运动控制器系列又添新成员：MC3603（图 1），由于其紧凑的尺寸，非常适合集成到设备制造和医疗技术应用中 运动控制器具有 36 V 和 3 A（峰值电流 9 A），覆盖中等功率范围，可达约。100 W。适用于带编码器的“普通”直流电机、无刷驱动器和直线电机。I/O 选项和编码器接口与该产品系列的其他产品相同。USB、RS232、CANopen 和 EtherCAT 可用于通信。运动控制器已经有了新的固件版本“M”。为确保简单方便的系统设置，应使用 FAULHABER 运动管理器的 新更新（6.9 版）。

适用于所有运动控制器的 EMC 兼容设计

随着 MC 3603 的推出，运动控制器现在涵盖了微型电机和微型电机的整个典型应用范围（图 2），从邮票尺寸的 MC 3001 开始，具有 30 W 和 1 A（峰值电流 2 A）直到 MC 5010，该系列中的成员具有 10 A（峰值电流 30 A），专为安装在开关柜中而设计，主要在工业领域进行了试验和测试。所有运动控制器都符合当前的 EMC 规定。这就是为什么驱动 们非常详细地探讨了这个复杂的话题。不仅硬件得到了适当的优化，文档也经过了重新设计，为用户在自己设备的认证过程中提供的支持。

ABB NDCU-12C NDCU-12CK  DCS系统 PLC模块

ABB has added another compact shell-less motion controller to its product line, which is very suitable for integration into equipment manufacturing and medical technology applications. At 36 V and 3 A (peak current 9 A), it covers a power range of up to about 100 W, and is suitable for DC motors with encoders, brushless drives or linear motors.

Micro-motors and micro-motors can become reliable driving systems only when they are combined with matched motion controllers. This is why the motor series provided by Driving ABB (see company box) includes a variety of motion controllers, which are designed for different power levels, with or without housings, and are suitable for various applications. Now, a new member has been added to the series of shell-less motion controllers: MC3603 (Figure 1). Because of its compact size, it is very suitable to be integrated into equipment manufacturing and medical technology applications. The motion controller has 36 V and 3 A (peak current 9 A), covering a medium power range, which can reach about. 100 W。 Suitable for "ordinary" DC motors with encoders, brushless drives and linear motors. I/O options and encoder interfaces are the same as other products in this product family. USB, RS232, CANopen and EtherCAT can be used for communication. The motion controller has a new firmware version "M". In order to ensure simple and convenient system setup, the new update of FAULHABER Motion Manager (version 6.9) should be used.

EMC Compatible Design for All Motion Controllers

With the introduction of MC 3603, the motion controller now covers the whole typical application range of micro-motors and micro-motors (Figure 2), starting from the stamp-sized MC 3001, with 30 W and 1 A (peak current 2 A) until the MC 5010. The members in this series have 10 A (peak current 30 A), which is specially designed for installation in switchgear, and has been tested and tested mainly in the industrial field. All motion controllers comply with current EMC regulations. This is why drivers have discussed this complicated topic in great detail. Not only the hardware has been properly optimized, but also the document has been redesigned to provide support for users in the authentication process of their own equipment.
