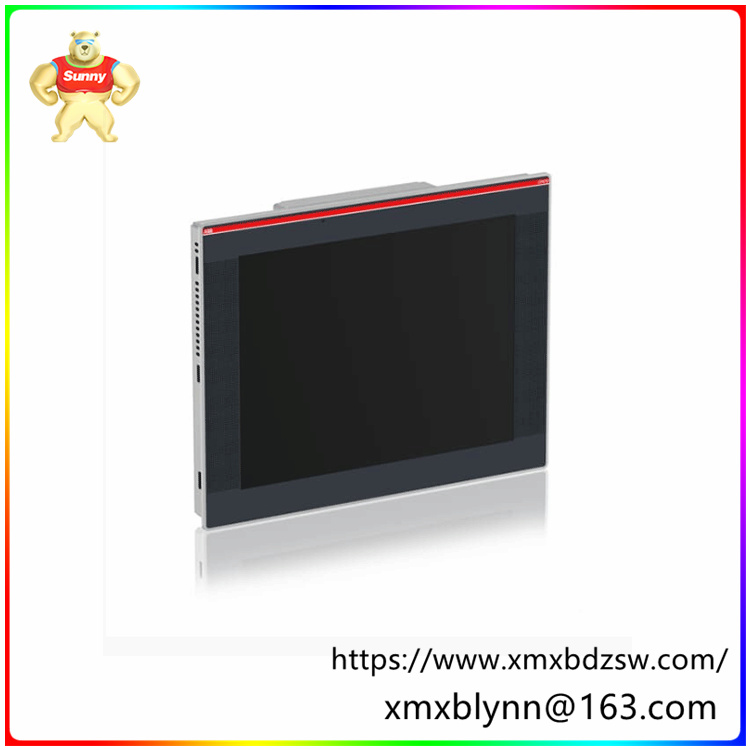

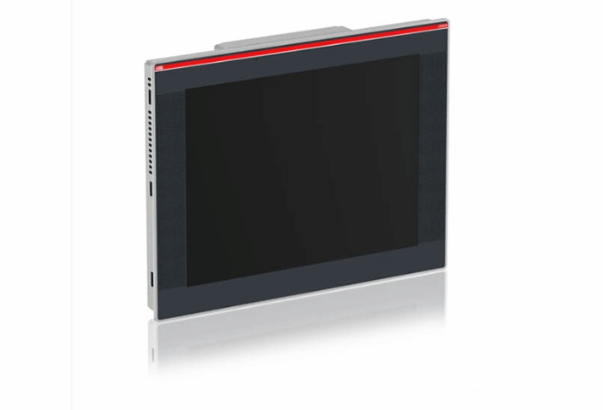

CP676 3ABD00038801 控制面板 支持丰富的调色板

☆型号：CP676 3ABD00038801  控制面板   支持丰富的调色板

【产品详情】

扩展产品类型:CP676

产品编号:3ABD00038801

ABB型号:CP676

EAN: 4013614493171

目录描述:CP676控制面板15“TFT触摸屏

详细描述:CP676控制面板15英寸TFT触摸屏，64k色，1024 x 768像素，PB610运行许可

产品净重:3.3 kg

产品净深度/长度:64mm

产品净高:307mm

产品净宽:392毫米

毛重:4.9 kg

包装1级深度/长度:510mm

1级包装高度:145mm

包装一级宽度:410毫米

包装级别1单位:1个纸箱

特征：

15英寸TFT触摸屏显示器：提供高分辨率图形用户界面 （GUI），用于用户与连接的系统进行交互。

触摸屏技术：通过触摸显示屏上的按钮或元素进行直观控制。

64K 颜色：支持丰富的调色板，用于显示视觉对象、图形和其他信息。

1024 x 768 像素分辨率：为各种控制应用提供清晰详细的查看体验。

PB610 运行时许可证：这可能表明预装的软件使控制面板能够运行特定的人机界面（HMI）应用程序（PB610可能是ABB的软件版本或产品线）。

应用：

CP676  3ABD00038801  控制面板适用于需要用户与系统交互的各种工业自动化和过程控制应用。以下是一些常见用例：

机器控制：提供用于监控机器状态、发出命令和调整操作参数的界面。

过程控制：显示实时过程数据（温度、压力、流量），使操作员能够进行调整并监控性能。

SCADA系统：集成到监控和数据采集系统中，用于集中监控和控制工业过程。

数据可视化：以易于理解的图形格式呈现复杂数据，以便操作员做出明智的决策。

【英文介绍】

Extended product type :CP676

Product Number :3ABD00038801

ABB model :CP676

EAN: 4013614493171

Catalog Description :CP676 Control Panel 15 "TFT touch screen

Description :CP676 Control panel 15 inch TFT touch screen, 64k color, 1024 x 768 pixels, PB610 operating license

Product Net Weight:3.3 kg

Product Net Depth / Length:64 mm

Product Net Height:307 mm

Product Net Width:392 mm

Gross Weight:4.9 kg

Package Level 1 Depth / Length:510 mm

Package Level 1 Height:145 mm

Package Level 1 Width:410 mm

Package Level 1 Units:1 carton

Features:

15-inch TFT touchscreen display: provides a high-resolution graphical user interface (GUI) for users to interact with the connected system.

Touch screen technology: Intuitive control by touching buttons or elements on the display.

64K colors: Supports a rich color palette for displaying visual objects, graphics, and other information.

1024 x 768 pixel resolution: provides a clear and detailed viewing experience for various control applications.

PB610 Runtime License: This may indicate that pre-installed software enables the control panel to run a specific Human Machine interface (HMI) application (PB610 may be a software version or product line of ABB).

Applications:

The CP676 control panel is suitable for a variety of industrial automation and process control applications that require user interaction with the system. Here are some common use cases:

Machine control: Provides an interface for monitoring machine status, issuing commands, and adjusting operating parameters.

Process control: Displays real-time process data (temperature, pressure, flow) to enable operators to make adjustments and monitor performance.

SCADA systems: Integrated into monitoring and data acquisition systems for centralized monitoring and control of industrial processes.

Data visualization: Present complex data in an easy-to-understand graphical format for operators to make informed decisions.
