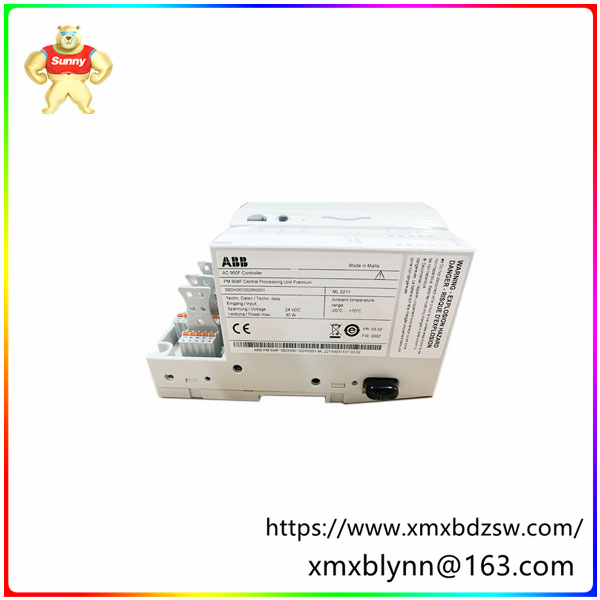

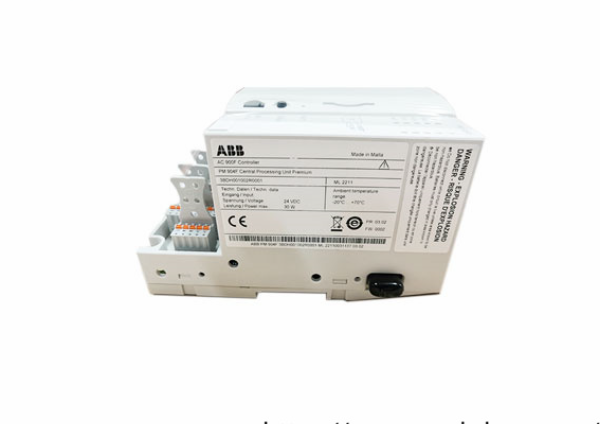

PM904F 3BDH001002R0001 高性能处理器 具有强大的处理器

☆型号：PM904F  3BDH001002R0001  高性能处理器    具有强大的处理器

【产品详情】

产品编号:3BDH001002R0001

ABB型号:PM 904F

目录描述:PM 904F CPU模块

产品净深度/长度:95毫米

产品净高:152毫米

产品净宽:285毫米

产品净重:1.1 kg

中央处理单元(CPU)模块配备了高性能处理器，可执行多任务和快速循环周期。它通过可插拔的SD卡提供了扩展的灵活性，高可用性的冗余选项和大约1500个I/ o的电源。

PM904F 3BDH001002R0001是ABB为工业自动化应用中使用的Freelance AC 900F控制器系列制造的高性能CPU模块。以下是其功能和主要特性的细分：

功能：

PM904F 充当 Freelance AC 900F 控制器系统的中央处理器 （CPU）。它负责执行控制逻辑程序，管理与连接设备的通信，并执行整体系统操作。

主要特点：

高端CPU：该模块被定位为 AC 900F 控制器系列中的高端产品，可能具有强大的处理器，用于处理复杂的控制任务。

48 MB 控制器内存：提供 48 MB 的控制器内存，为存储控制程序、系统配置数据和过程变量提供充足的空间。

4 个以太网接口：配备四个以太网接口，支持多种网络功能，可连接到各种设备，如 HMI 面板、编程工具和其他控制器。

800 MHz CPU 时钟速度：800 MHz 的高 CPU 时钟速度表明能够处理需要快速处理和实时响应的苛刻控制应用。

4 个通信模块插槽：提供 4 个插槽，用于安装额外的通信接口模块，允许根据项目要求（通信协议、连接设备数量）进行扩展和定制。

24VDC操作：设计用于使用 24VDC 电源供电。

应用：

PM904F 3BDH001002R0001 适用于需要高性能和广泛连接的各种工业自动化应用。以下是一些示例：

大规模制造工艺：控制工厂中复杂的生产线，包括物料搬运、机器操作和质量控制。

发电和配电：监测和控制发电厂的过程，包括涡轮机控制、发电机同步和开关设备操作。

水和污水处理厂：实现水处理、过滤和分配以及废水处理和排放过程的自动化。

楼宇自动化系统：管理复杂的楼宇自动化系统，包括大型商业或工业建筑中的暖通空调控制、照明控制和安全系统。

【英文介绍】

Product ID:3BDH001002R0001

ABB Type Designation:PM 904F

Catalog Description:PM 904F CPU Module

Product Net Depth / Length:95 mm

Product Net Height:152 mm

Product Net Width:285 mm

Product Net Weight:1.1 kg

Long Description:The Central Processing Unit (CPU) module is equipped with a high-performance processor for multitasking and executing fast loop cycle times.  It offers expanded flexibility via a pluggable SD card, redundancy options for high availability and powers for around 1500 I/Os.

PM 904F 3BDH001002R0001 is a high-performance CPU module manufactured by ABB for the Freelance AC 900F controller family used in industrial automation applications. Here is a breakdown of its functions and key features:

Features:

The PM904F acts as the central processing unit (CPU) for the Freelance AC 900F controller system. It is responsible for executing control logic programs, managing communication with connected devices, and performing overall system operations.

Main features:

High-end CPU: This module is positioned as a high-end product in the AC 900F controller family and may have a powerful processor for handling complex control tasks.

48 MB Controller memory: 48 MB controller memory is provided to provide sufficient space to store control programs, system configuration data, and process variables.

Four Ethernet interfaces: Equipped with four Ethernet interfaces that support multiple networking functions and can be connected to various devices such as HMI panels, programming tools, and other controllers.

800 MHz CPU clock speed: A high CPU clock speed of 800 MHz indicates the ability to handle demanding control applications that require fast processing and real-time response.

4 communication module slots: 4 slots are provided for the installation of additional communication interface modules, allowing expansion and customization according to project requirements (communication protocol, number of connected devices).

24VDC operation: Designed for use with 24VDC power supply.

Applications:

The PM904F 3BDH001002R0001 is suitable for a wide range of industrial automation applications requiring high performance and extensive connectivity. Here are some examples:

Large-scale manufacturing processes: Control complex production lines in a plant, including material handling, machine operation and quality control.

Power generation and distribution: Monitoring and controlling processes in power plants, including turbine control, generator synchronization, and switchgear operation.

Water and wastewater treatment plants: Automate water treatment, filtration and distribution, and wastewater treatment and discharge processes.

Building Automation Systems: Manage complex building automation systems, including HVAC control, lighting control and security systems in large commercial or industrial buildings.
