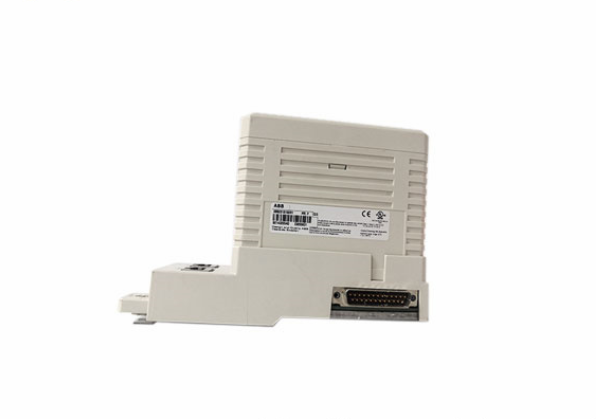

CI855 3BSE018106R1 通信接口模块 确保数据的准确传输

☆型号：CI855 3BSE018106R1  通信接口模块    确保数据的准确传输

【产品详情】

产品 ID：编号：3BSE018106R1

ABB型号名称：CI855K01

目录说明：CI855K01 MB 300 接口

产品净厚度/长度：65 毫米

产品净高：203 毫米

产品净宽：157 毫米

产品净重：0.62 千克

详细描述：套餐包括：

- CI855、MB300接口模块

- TP853，底板

.它支持AC 800M系统与使用MasterBus 300（MB300）协议的其他设备之间的通信，通过CEX-Bus网络[1]。

以下是其功能和应用程序的细分：

功能：

将 AC 800M 系统连接到控制器，操作台，以及通过 CEX-Bus 网络支持 MB300 协议的其他设备。

MB300是ABB开发的一种通信协议，专门用于其Advant控制系统。它促进了工厂或设施内各种自动化设备之间的通信。

CI855 充当 MB300 接口，使AC 800M系统（通常使用不同的协议）能够与CEX-Bus网络上基于MB300的设备进行通信。

应用：

CI855 用于工业自动化应用，其中 AC 800M 系统需要与现有的 Advant 控制系统或其他 MB300 兼容设备集成。以下是一些示例：

工厂自动化：将 AC 800M 系统集成到已经使用 Advant 控制器或其他 MB300 设备与传感器通信的生产线中，驱动器和其他设备。

过程控制：实现 AC 800M 系统与发电等过程中使用的基于 MB300 的设备之间的通信，油气生产，和化工厂。

楼宇自动化：将 AC 800M 系统连接到 MB300 兼容设备，控制加热等功能，通风和建筑物中的空调（不太常见的应用）。

主要特点：

通过特定连接器连接到CEX-Bus网络（有关详细信息，请参阅数据表）。

启用 AC 800M 系统和 MB300 设备之间的通信。

通过 CEX-Bus 为 CI855 模块供电，无需外部电源。

可能包括用于监控通信活动的状态 LED 等功能（取决于变体）。

兼容ABB的AC 800M控制系统和基于MB300的设备。

通常带有一个底板 （TP853），该底板提供第二个 RJ45 以太网连接器，用于网络冗余或菊花链连接其他模块

【英文介绍】

Product ID: Number: 3BSE018106R1

ABB model name: CI855K01

Directory Description: CI855K01 MB 300 port

Net product thickness/length: 65 mm

Product height: 203mm

Product width: 157mm

Net weight: 0.62 kg

Detailed description: Package includes:

- CI855 and MB300 interface modules

- TP853, mainboard

It supports communication between the AC 800M system and other devices using the MasterBus 300 (MB300) protocol, via the CEX-Bus network [1].

Here's a breakdown of its features and applications:

Features:

Connect the AC 800M system to the controller, console, and other devices that support the MB300 protocol over the CEX-Bus network.

MB300 is a communication protocol developed by ABB specifically for use in its Advant control systems. It facilitates communication between various automated devices within a factory or facility.

The CI855 acts as the MB300 interface, enabling AC 800M systems (often using a different protocol) to communicate with MB300-based devices on the CEX-Bus network.

Applications:

The CI855 is used in industrial automation applications where AC 800M systems need to be integrated with existing Advant control systems or other MB300 compatible devices. Here are some examples:

Factory automation: Integrate AC 800M systems into production lines that already use Advant controllers or other MB300 devices to communicate with sensors, drives, and other equipment.

Process control: Enables communication between AC 800M systems and MB300-based equipment used in processes such as power generation, oil and gas production, and chemical plants.

Building automation: Connecting AC 800M systems to MB300 compatible devices, controlling functions such as heating, ventilation and air conditioning in buildings (less common applications).

Main features:

Connect to the CEX-Bus network with a specific connector (see data sheet for more information).

Enable communication between the AC 800M system and the MB300 device.

The CI855 module is powered by the CEX-Bus without the need for an external power supply.

Features such as status leds for monitoring communication activity may be included (depending on the variant).

Compatible with ABB's AC 800M control system and MB300-based devices.

It usually comes with a backboard (TP853) that provides a second RJ45 Ethernet connector for network redundancy or Daisy chain connections to other modules
