CI868A 3BSE092691R1 AC 800M 控制器 允许在同一模块中组合两种协议

☆型号：CI868A 3BSE092691R1  AC 800M 控制器    允许在同一模块中组合两种协议

【产品详情】

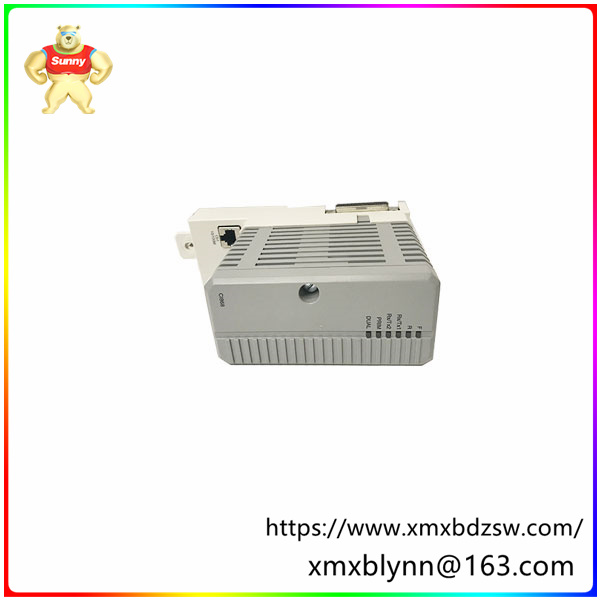

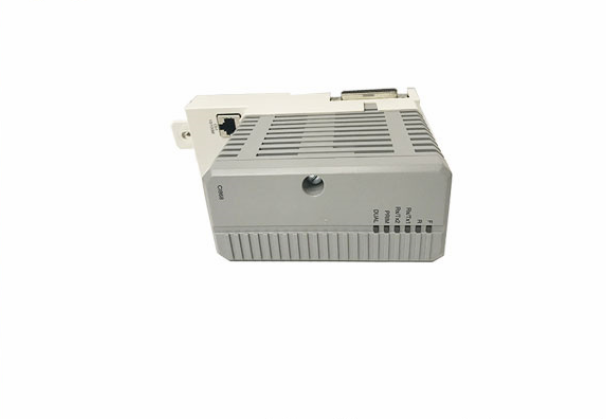

CI868A 可用于使用 IEC 61850 – 第 2 版标准将 AC 800M 控制器连接到外部以太网设备。由于这是变电站自动化的标准，因此可以在同一控制器中结合过程自动化和电气控制。

TP868 底板有两个 RJ45 以太网连接器，其中 CH1 连接器可以使用 10Mbps 或 100Mbps（兆位/秒）。底板具有密码锁，可防止将不正确类型的设备安装到 TP867 底板上。

CI868扩展单元包含CEX-Bus逻辑、通信单元和DC/DC转换器，通过CEX-Bus从+24 V电源提供适当的电压。以太网电缆必须通过以太网交换机连接到主网络。

特点和优势

允许通过 IEC 61850 标准定义的两种协议进行通信：MMS（客户端）和 GOOSE

根据 CI868A，最多允许 120 个 IED （GOOSE） 和 40 个 IED （MMS）。允许在同一模块中组合两种协议。（40简易爆炸装置/CI868A）

一个 AC 800M 控制器最多可使用 12 个模块

CI868A 3BSE092691R1模块具有特定的通信功能，可以与系统中的其他模块或外部设备进行数据交换。在工业自动化和控制系统中，通信模块扮演着至关重要的角色，它们确保各个组件之间的顺畅通信，从而实现整个系统的协同工作。

此外，CI868A 3BSE092691R1模块的设计也考虑了易用性和可靠性。它采用DIN导轨式安装，方便用户进行安装和维护。同时，该模块还具备高度的稳定性和耐用性，能够在各种工业环境中长期稳定运行。

在实际应用中，CI868A 3BSE092691R1模块可以与其他AC 800M系列模块配合使用，构建出功能强大的工业自动化和控制系统。这些系统广泛应用于制造业、能源、化工等各个行业，提高了生产效率、降低了运营成本，并为企业带来了显著的经济效益。

【英文介绍】

The CI868A can be used to connect AC 800M controllers to external Ethernet devices using the IEC 61850-2nd edition standard. Since this is the standard for substation automation, it is possible to combine process automation and electrical control in the same controller.

The TP868 baseboard has two RJ45 Ethernet connectors, of which the CH1 connector can use either 10Mbps or 100Mbps (megabits per second). The baseplate has a combination lock that prevents incorrect type of equipment from being installed to the TP867 baseplate.

The CI868 expansion unit contains the CEX-Bus logic, communication unit, and DC/DC converter, providing the appropriate voltage from a +24 V power supply via the CEX-Bus. Ethernet cables must be connected to the main network through an Ethernet switch.

Characteristics and advantages

Communication is allowed through two protocols defined by the IEC 61850 standard: MMS (client) and GOOSE

Under CI868A, a maximum of 120 IEDs (GOOSE) and 40 IEDs (MMS) are allowed. Allows two protocols to be combined in the same module. (40 Improvised Explosive Devices /CI868A)

An AC 800M controller can use up to 12 modules

The CI868A 3BSE092691R1 module has specific communication functions and can exchange data with other modules in the system or external devices. In industrial automation and control systems, communication modules play a crucial role in ensuring smooth communication between individual components to enable the entire system to work together.

In addition, the CI868A 3BSE092691R1 module has been designed with ease of use and reliability in mind. It is mounted with DIN rail for easy installation and maintenance. At the same time, the module also has a high degree of stability and durability, capable of long-term stable operation in various industrial environments.

In practical applications, the CI868A 3BSE092691R1 module can be used in conjunction with other AC 800M series modules to build powerful industrial automation and control systems. These systems are widely used in manufacturing, energy, chemical and other industries, improving production efficiency, reducing operating costs, and bringing significant economic benefits to enterprises.
