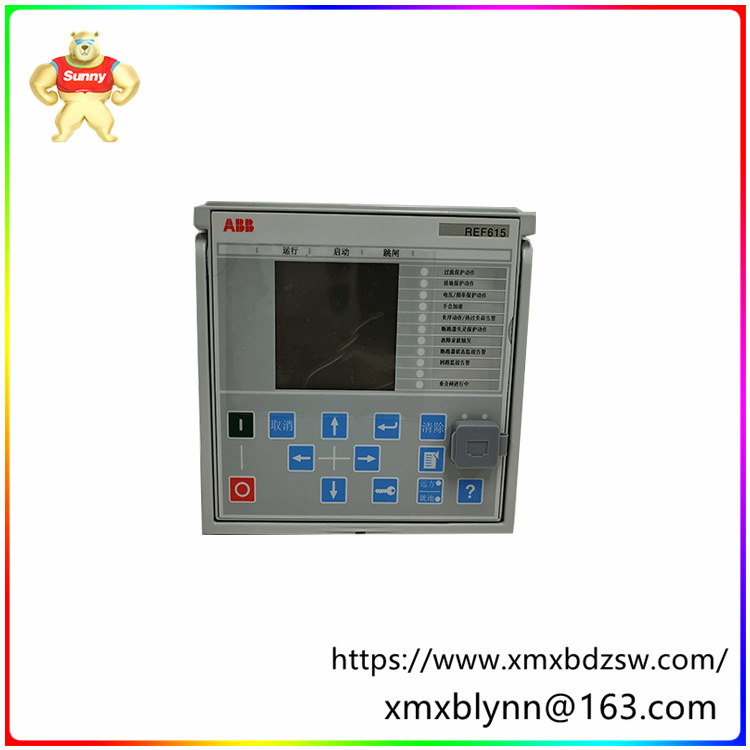

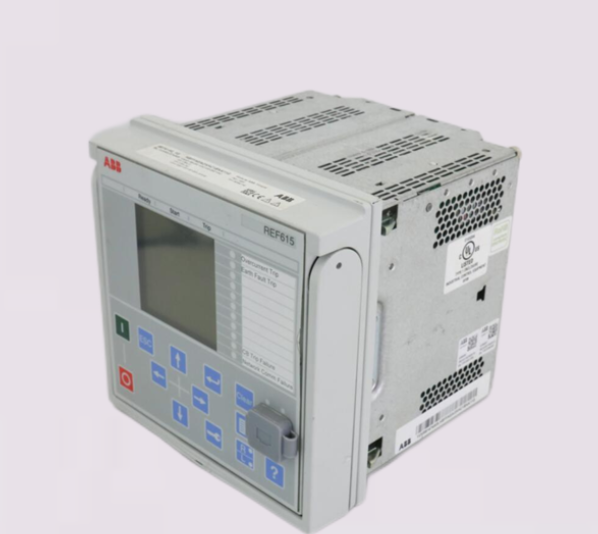

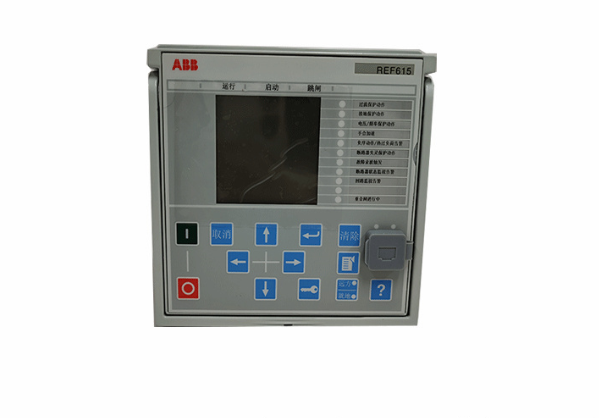

REF615C_E-HCFFAEAGABC2BAA11E 馈线保护和控制继电器 支持高精度时间同步和变电站级

☆型号：REF615C_E-HCFFAEAGABC2BAA11E  馈线保护和控制继电器   支持高精度时间同步和变电站级

【产品详情】

REF615 是一款专用的馈线保护和控制继电器，用于保护、控制、测量和监督公用事业和工业配电系统中的架空线路和电缆馈线，包括径向、环形和网状配电网络，无论是否分布式发电。

REF615是ABB的Relion系列的成员，也是其615保护和控制产品系列的一部分。

范围:馈线保护

产品优势:

广泛的保护和控制功能，包括传感器或传统互感器

现成的标准配置，可快速轻松地进行设置，并具有定制功能

可抽出式插入式单元设计，便于快速安装和测试

大型图形显示屏，用于显示可定制的 SLD，可在本地访问或通过易于使用的基于 Web 浏览器的 HMI 访问

广泛的生命周期服务

产品特点

定向和非定向过流和接地故障保护，基于电压、频率和功率的保护和测量功能

广泛的接地故障保护产品组合，具有独特的基于多频导纳的保护，可实现更高的灵敏度和选择性

可选配短路和接地故障的先进快速故障定位、电弧保护和高速输出

支持 IEC 61850 版本 1 和 2，包括 HSR 和 PRP、GOOSE 消息传递和 IEC 61850-9-2 LE，可减少布线和监督通信

IEEE 1588 V2 支持高精度时间同步和变电站级以太网通信的最大优势

支持 Modbus、DNP3 和 IEC 60870-5-103 通信协议

【英文介绍】

The REF615 is a dedicated feeder protection and control relay designed to protect, control, measure and supervise overhead lines and cable feeders in utility and industrial distribution systems, including radial, ring and mesh distribution networks, with or without distributed generation.

The REF615 is a member of ABB's Relion family and part of its 615 protection and control product family.

Scope: Feeder protection

Product advantages:

A wide range of protection and control functions, including sensors or conventional transformers

Off-the-shelf standard configuration, quick and easy to set up, with customization capabilities

Pull-out plug-in unit design for quick installation and testing

Large graphic display for displaying customizable SLD, accessible locally or through an easy-to-use Web browser-based HMI

Wide range of life cycle services

Product characteristics

Directional and non-directional overcurrent and ground fault protection, based on voltage, frequency and power protection and measurement functions

Extensive grounding fault protection portfolio with unique multi-frequency admittance based protection for greater sensitivity and selectivity

Advanced rapid fault location, arc protection and high-speed output for short and ground faults are optional

Support for IEC 61850 versions 1 and 2, including HSR and PRP, GOOSE messaging, and IEC 61850-9-2 LE for reduced wiring and supervised communication

IEEE 1588 V2 supports the greatest benefits of high-precision time synchronization and substance-level Ethernet communication

Supports Modbus, DNP3, and IEC 60870-5-103 communication protocols
