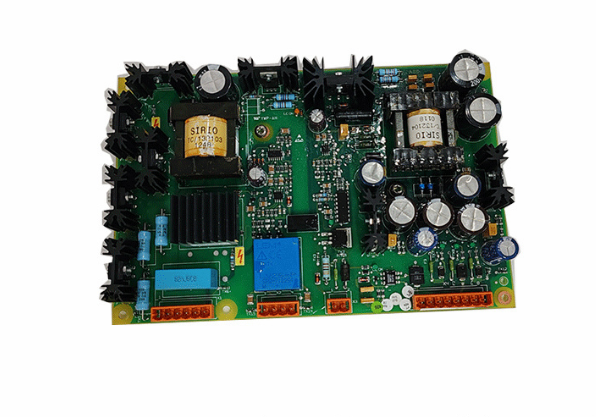

DYPS154C-61430001-YP 分布式控制系统 能实时响应和处理系统中的事件

>>>>>型号:DYPS154C-61430001-YP   分布式控制系统  能实时响应和处理系统中的事件

【功能描述】

原产国:美国

品牌名称: ABB

型号: DYPS154C 61430001-Yp

付款和运输条款:

最小起订量: 1

件包装细节:新厂和原厂,分开包装

交货时间: 2-3个工作日

付款方式:电汇,西联

汇款供货能力: 10+件

数据电接口:

9针的Sub_D插孔连接器，管脚定义符合Profibus DP的协议规范.

支持Profibus DP总线标准.

通信速率：9.6kBit/s、19.2 kBit/s、45.45kBit/s、93.75k kBit/s、187.5kBit/s、500kBit/s、1.5MBit/s、6MBit/s and 12MBit/s.

 速率设置：自动识别或拨码开关设置

信号延时（电口）：≤11Bit

具备4000V的防雷击以及1.5A的过流保护和600W浪涌保护功能；

终端电阻：本机不带终端电阻,请按需要外接.

光纤接口：

光纤波长：多模850nm、1310 nm; 单模1310 nm、1550nm。

传输光纤：多模50/125 um、62.5/125 um、100/140um;单模8.3/125 um、9/125um、10/125um 。

传输距离：多模2Km，单模20Km，更远距离可选。

光纤接口类型：SC、FC、 ST可选,标配SC光接口。

【英文介绍】

Country of origin: USA

Brand Name: ABB

Model: DYPS154C 61430001-Yp

Payment and shipping Terms:

Minimum order quantity: 1

Package details: new factory and original factory, separate packaging

Delivery time: 2-3 working days

Payment method: Wire transfer, Western Union

Remittance supply capacity: 10+ pieces

Data electrical interface:

9-pin Sub_D jack connector with pin definition conforming to the Profibus DP protocol specification.

Supports Profibus DP bus standard.

Communication rates: 9.6kBit/s, 19.2 kBit/s, 45.45kBit/s, 93.75k kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s and 12MBit/s.

Rate Settings: Automatic identification or dip switch Settings

Signal delay (electrical) : ≤11Bit

With 4000V lightning protection and 1.5A overcurrent protection and 600W surge protection function;

Terminal resistance: This machine does not have terminal resistance, please connect it as required.

Optical fiber interface:

Optical fiber wavelength: multi-mode 850nm, 1310nm; Single mode 1310 nm, 1550nm.

Transmission fiber: multi-mode 50/125um, 62.5/125um, 100/140um; Single mode 8.3/125um, 9/125um, 10/125um.

Transmission distance: multi-mode 2Km, single-mode 20Km, more distance optional.

Optical fiber port type: SC, FC, ST Optional. SC optical ports are standard.
