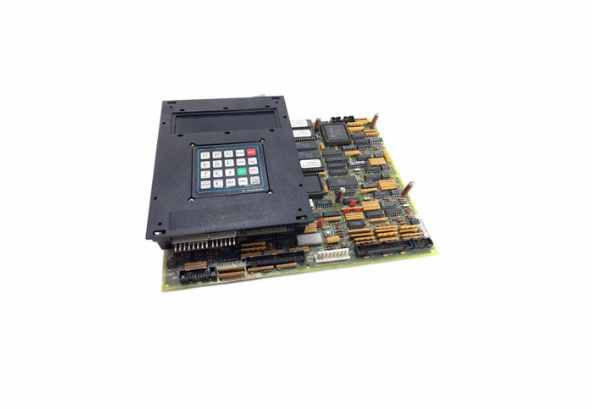

109-0943-3801-05 总线终端模块I/O 以太网标准

>>>>>型号:109-0943-3801-05  总线终端模块I/O    以太网标准

【功能描述】

 INDRAMAT 109-0943-3801-05扩展了IEEE 802.3以太网标准，使数据传输具有可预测性、定时性和高精度同步的特点。EtherCAT通信速度极快。系统周期为100 μ s(最小50 μ s)，减少了数据传输时间，加快了任务执行速度。1000个分布式I/O数据的刷新时间仅为30 μ S(包括终端模块周期时间)。

系统的总线终端模块I/O通过109-0943-3801-05进行通信。连接通信的总线耦合器EK1100作为总线通信终端模块。它可以自动识别所连接的总线终端模块，并自动将输入/输出分配到过程映像区域中的字节。

【英文介绍】

 INDRAMAT 109-0943-3801-05 extends the IEEE 802.3 Ethernet standard, making the data transmission have the characteristics of predictability, timing and high-precision synchronization. EtherCAT communication speed is extremely fast. The system cycle time is 100 μ s (min. 50 μ s), which reduces the data transmission time and accelerates the task execution speed. The refresh time of 1000 distributed I/O data is only 30 μ S - including terminal module cycle time.

 The bus terminal module I/O of the system communicates through 109-0943-3801-05. The bus coupler EK1100 connected to the communication is used as the bus communication terminal module. It can automatically identify the connected bus terminal module and automatically allocate the input/output to the bytes in the process image area.
