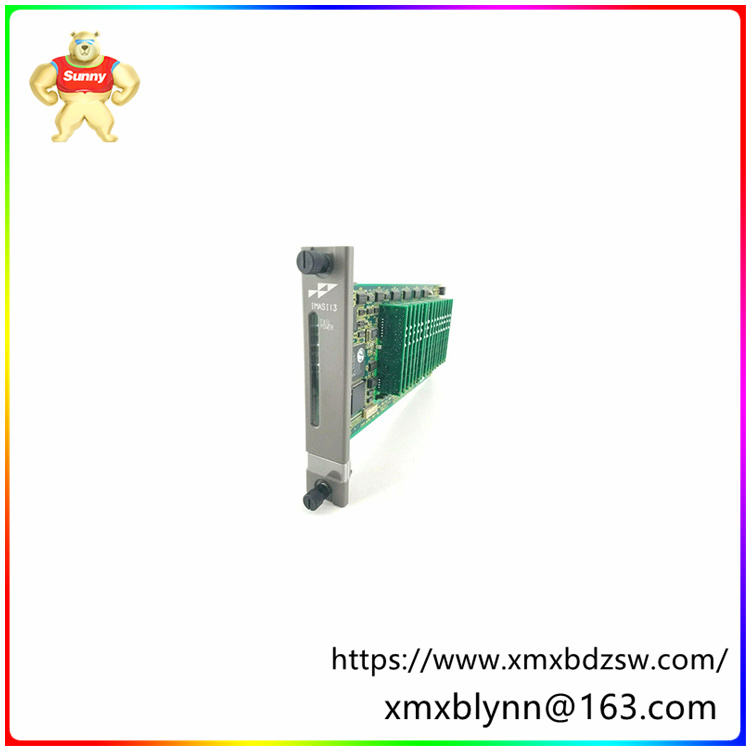

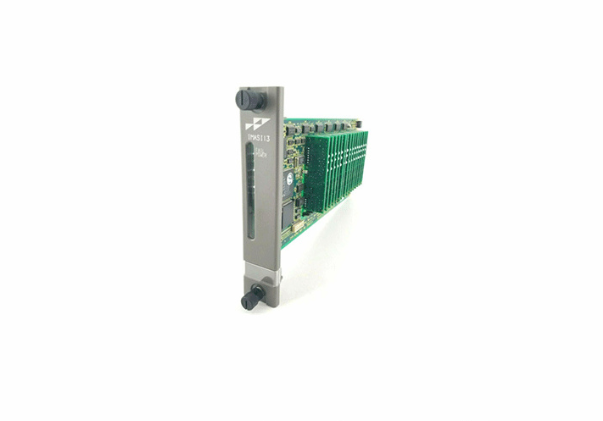

IMASI23 模拟输入模块 提供控制器理解和处理

>>>>>型号:IMASI23  模拟输入模块  提供控制器理解和处理

【功能描述】

IMASI23是ABB制造的16通道通用模拟输入模块。它设计用于ABB Infi 90工业自动化系统。以下是对其功能和主要特征的详细介绍：

功能：

该IMASI23充当各种传感器和变送器之间的接口，以及Infi 90系统中的主控制器。它从这些外部设备收集模拟信号，并将其转换为数字信号，提供控制器理解和处理。这使得系统能够根据实时传感器数据监测和控制各种过程参数。

主要特点：

通用输入：该IMASI23可以接受各种模拟输入信号，包括：

电压 （0-10V）

热电偶 （TC）

电阻温度检测器（RTD）

毫伏信号

高电平电压信号

通道数：16 - 这样可以同时从 16 个不同的传感器采集数据。

模数转换：该模块将来自传感器的模拟信号转换为分辨率为 24 位的数字数据。这种高分辨率确保了控制器模拟信号的准确表示。

从模块：该IMASI23作为从设备运行，这意味着它需要 Infi 90 系统中的主控制器才能运行。它通过通信总线与主控制器通信，以传输收集的传感器数据。

应用：

该IMASI23适用于需要模拟信号监测和控制的各种工业自动化应用。以下是一些示例：

过程控制：监测和控制工业过程中的温度、压力、流量和液位等参数。

数据采集：从传感器收集数据，用于分析、监控和优化工业过程。

机器监控：通过从振动传感器、温度传感器等获取数据来监控机器的健康和性能。

【英文介绍】

IMASI23 is a 16-channel universal analog input slave module manufactured by ABB. It is designed for use in ABB Infi 90 industrial automation systems. The following is a detailed introduction to its functions and main features:

Features:

The IMASI23 acts as the interface between various sensors and transmitters, as well as the main controller in the Infi 90 system. It collects analog signals from these external devices and converts them into digital signals for the controller to understand and process. This enables the system to monitor and control various process parameters based on real-time sensor data.

Main features:

Universal input: The IMASI23 can accept a variety of analog input signals, including:

Voltage (0-10V)

Thermocouple (TC)

Resistance Temperature Detector (RTD)

Millivolt signal

High level voltage signal

Number of channels: 16 - This allows data acquisition from 16 different sensors at the same time.

Analog-to-digital conversion: This module converts the analog signal from the sensor into digital data with a resolution of 24 bits. This high resolution ensures an accurate representation of the controller's analog signal.

Slave Module: The IMASI23 runs as a slave device, which means it requires a master controller in the Infi 90 system to run. It communicates with the master controller via a communication bus to transmit the collected sensor data.

Applications:

The IMASI23 is suitable for a variety of industrial automation applications requiring analog signal monitoring and control. Here are some examples:

Process control: Monitor and control parameters such as temperature, pressure, flow and liquid level in industrial processes.

Data acquisition: Collecting data from sensors for analyzing, monitoring, and optimizing industrial processes.

Machine monitoring: Monitor the health and performance of machines by obtaining data from vibration sensors, temperature sensors, etc.
