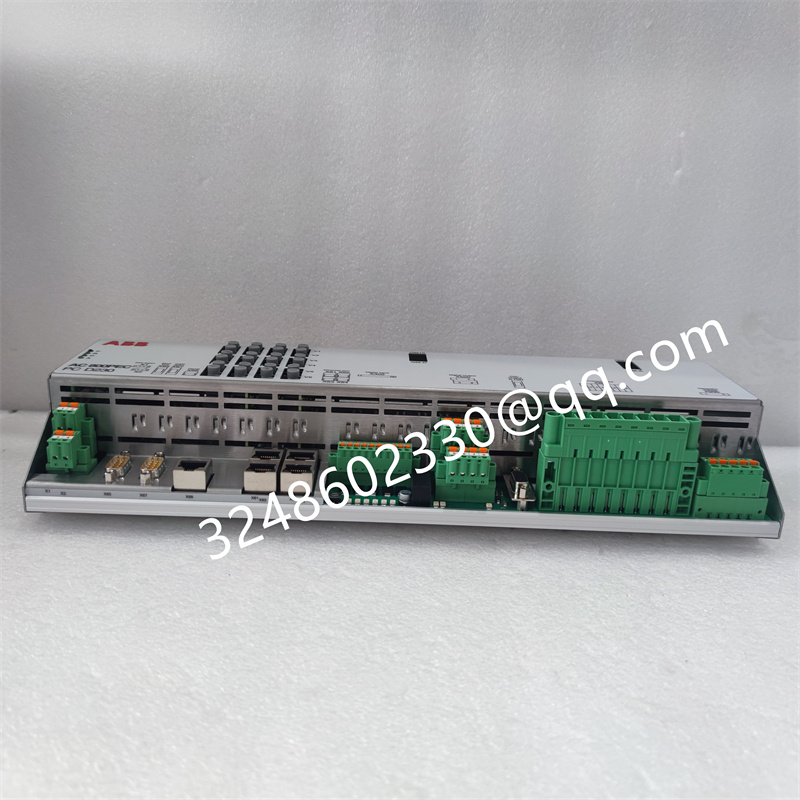

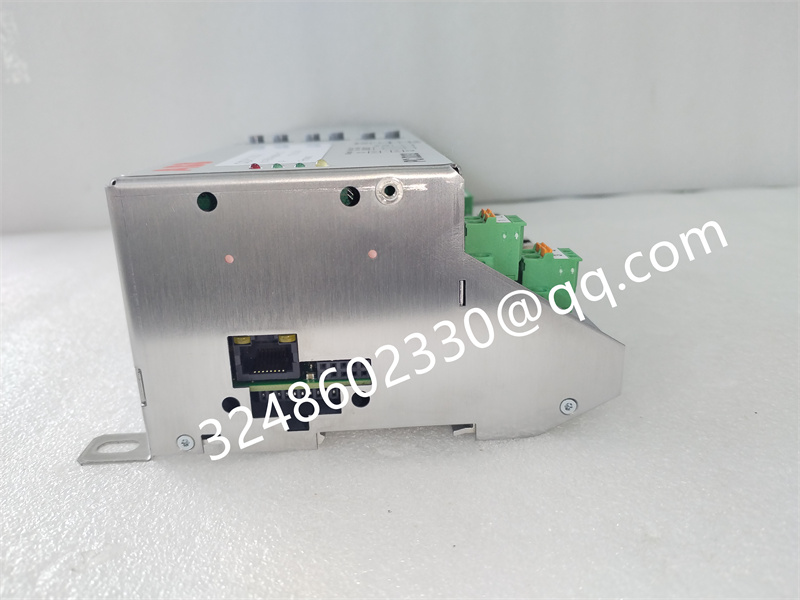

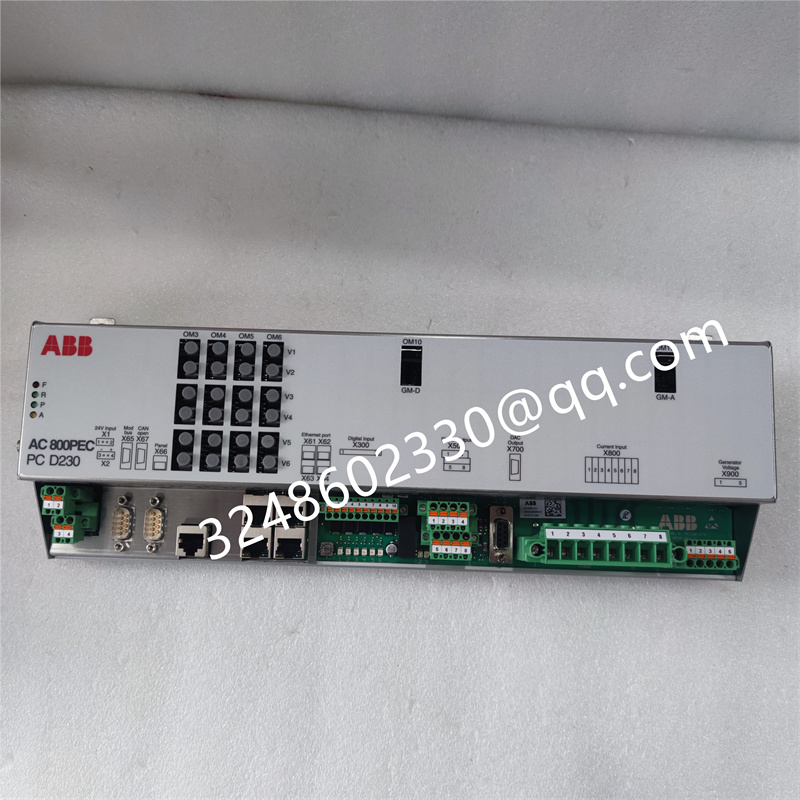

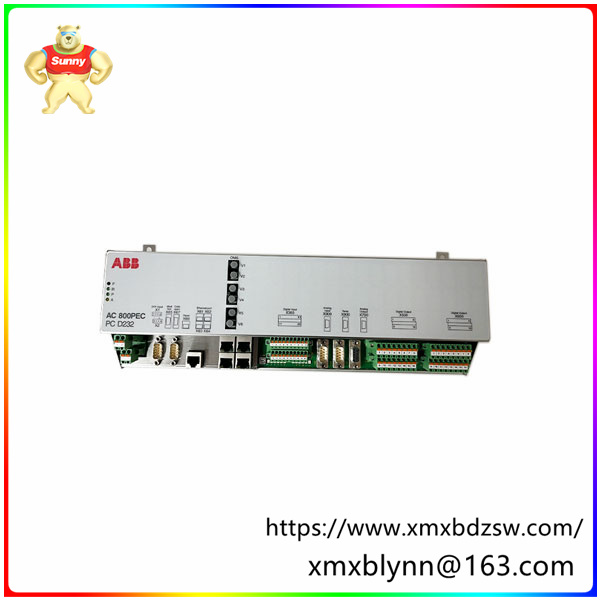

PCD232A101 3BHE022293R0101 控制器处理单元 读取和发出控制信号

>>>>>型号:PCD232A101 3BHE022293R0101  控制器处理单元 读取和发出控制信号

【功能描述】

PCD232A101 3BHE022293R0101是一款控制器处理单元，通常也被称为控制单元（Control Unit，CU）。它在CPU部件中占据重要地位，有时也安装在CPU的外部。其基本功能是从内存中读取指令、分析指令，并执行这些指令。通过发出的控制信号，它能够对CPU的各个部分进行控制。

这款控制单元PCD232A101 3BHE022293R0101是微程序式的，这意味着它通过微程序来读取和发出控制信号。它根据用户预先编好的程序，从存储器中依次取出各条指令，并放在指令寄存器IR中。通过指令译码（分析），确定应该执行什么操作，然后通过操作控制器OC，按确定的时序，向相应的部件发出微操作控制信号。

特别值得一提的是，PCD232A101 3BHE022293R0101在电力系统中的发电机励磁系统中有广泛应用。例如，在电力发电厂中，这种励磁控制器能够确保发电机的励磁系统稳定运行，以产生所需的电力。此外，它也可以用于需要可靠电力供应的工业领域，以确保发电机在各种负载条件下提供稳定的电力输出。

在信号处理方面，PCD232A101 3BHE022293R0101能够采用电缆隔离的方式将信号进行隔离，防止因地电势差产生的干扰。同时，它还可以采用分层铺设的方式对电缆进行调控，保证电缆之间不会相互作用。此外，它还可以采用隔离放大器将信号的输入端与计算机完全隔离，阻断干扰信号之间形成回路，从而抑制干扰的危害，保证系统的正常运行。

此外，这款控制单元支持多个通讯扩展接口模块，并可以与不同等级的CPU配合使用。这些CPU均支持使用相同的编程软件进行编程，提供了极大的灵活性和便利性。

【英文介绍】

The PCD232A101 3BHE022293R0101 is a controller processing Unit, commonly known as a Control Unit (CU). It plays an important role in the CPU components and is sometimes installed on the outside of the CPU. Its basic function is to read instructions from memory, analyze instructions, and execute these instructions. Through the control signal issued, it can control various parts of the CPU.

The PCD232A101 3BHE022293R0101 control unit is microprogrammed, which means it reads and sends control signals through microprogramming. According to the user's pre-programmed program, it takes out each instruction from the memory in turn and puts it in the instruction register IR. Through instruction decoding (analysis), it is determined what operation should be performed, and then by operating the controller OC, according to the determined timing, the microoperation control signal is sent to the corresponding component.

In particular, PCD232A101 3BHE022293R0101 is widely used in generator excitation systems in power systems. In an electric power plant, for example, this excitation controller ensures that the excitation system of the generator operates stably to generate the required power. In addition, it can also be used in industrial areas where a reliable power supply is required to ensure that generators provide stable power output under various load conditions.

In terms of signal processing, PCD232A101 3BHE022293R0101 can use cable isolation to isolate the signal to prevent interference caused by ground potential difference. At the same time, it can also regulate the cable by layering to ensure that the cable will not interact with each other. In addition, it can also use the isolation amplifier to completely isolate the input end of the signal from the computer, blocking the formation of a loop between the interference signals, so as to suppress the harm of interference and ensure the normal operation of the system.

In addition, the control unit supports multiple communication expansion interface modules and can be used with different levels of CPU. These cpus all support programming using the same programming software, providing great flexibility and convenience.

Overall, the PCD232A101 3BHE022293R0101 is a powerful and flexible control unit for a wide range of applications requiring accurate and efficient control and monitoring.
