4104C 混合域示波器 提高了测试效率和便捷性

☆型号： 4104C  混合域示波器 提高了测试效率和便捷性

【产品详情】

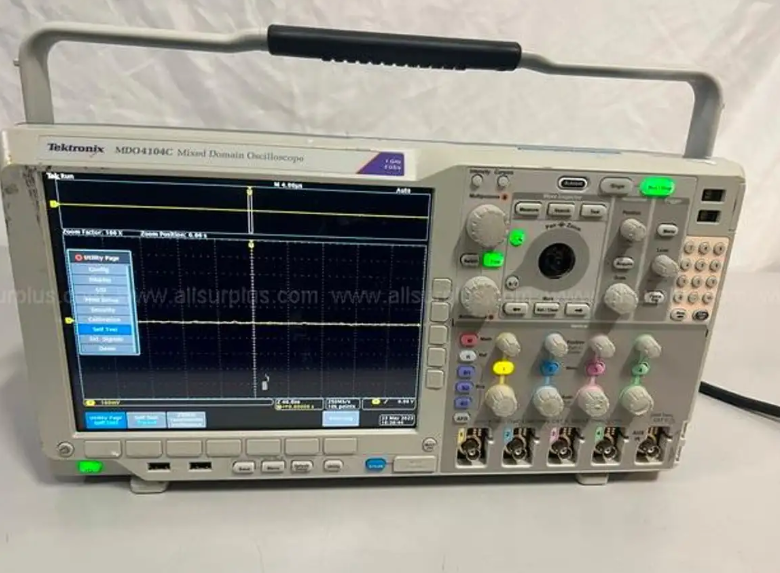

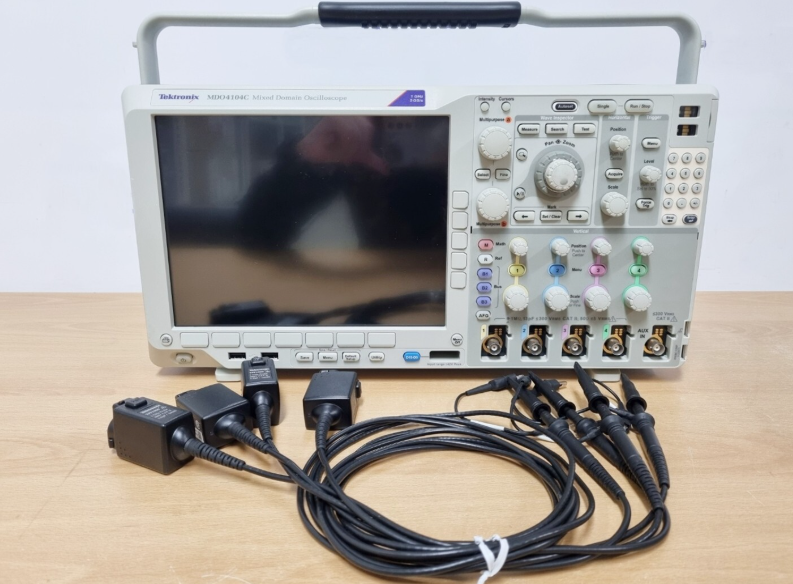

MDO4104C是一款1 GHz、4通道的混合域示波器，用于随时间测量电子电路或组件中的电压或电流信号，以显示幅度、频率、上升时间等。它具有广泛的应用，包括故障排除、生产测试和设计。

它的主要功能和特点包括：

1. 高性能集成：该示波器集混合域示波器、频谱分析仪、频率计、模拟信号发生器等多种仪器功能于一体，大大提高了测试效率和便捷性。
2. 带宽和采样率：具有1 GHz的带宽和5 GS/s的采样率，所有通道上可达20 M的记录长度，支持超宽的捕获带宽（≥1 GHz）。
3. 波形捕获和分析：具有高达340,000 wfm/s的最大波形捕获率，支持FastAcq快速波形捕获，以及色彩等级显示，有助于理解感兴趣的事件。
4. 数字分析功能：可配置16条数字通道和1条射频通道进行同步分析，支持串行总线触发和分析，包括I2C、SPI、RS-232/422/485/UART、USB 2.0、以太网、CAN、CAN FD、LIN、FlexRay、MIL-STD-1553和音频标准等。
5. 频率和时间分析：具有任意/函数发生器、逻辑分析仪、协议分析仪和数字电压表/频率计数器等可选功能，支持频率范围为9 kHz - 3 GHz或9 kHz - 6 GHz的频谱分析。
6. 易用性：内置SignalVu-PC矢量信号分析软件，支持蓝牙和WLAN（IEEE 802.11 a/b/g/n/p/ac）信号质量分析、脉冲分析、音频测量、AM/FM/PM调制分析、通用数字调制等。
7. 长期价值：支持离线波形分析，可观察、测量和分析实验室中捕获的数据，并可通过TekScope Anywhere的示波器硬件进行使用。

【英文介绍】

The MDO4104C is a 1 GHz, 4-channel hybrid domain oscilloscope designed to measure voltage or current signals in electronic circuits or components over time to display amplitude, frequency, rise time, and more. It has a wide range of applications, including troubleshooting, production testing and design.

Its main functions and features include:

High performance integration: the oscilloscope sets mixed domain oscilloscope, spectrum analyzer, frequency meter, analog signal generator and other instrument functions in one, greatly improving the test efficiency and convenience.

Bandwidth and sampling rate: With 1 GHz bandwidth and 5 GS/s sampling rate, up to 20 M recording length on all channels, supporting ultra-wide capture bandwidth (≥1 GHz).

Waveform capture and analysis: Features a maximum waveform capture rate of up to 340,000 wfm/s, FastAcq fast waveform capture support, and color-grade display to help understand events of interest.

Digital analysis features: It CAN be configured with 16 digital channels and 1 RF channel for synchronous analysis, supporting serial bus triggering and analysis, including I2C, SPI, RS-232/422/485/UART, USB 2.0, Ethernet, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553 and audio standards.

Frequency and time analysis: Optional features such as an arbitrary/function generator, logic analyzer, protocol analyzer, and digital voltmeter/frequency counter support spectrum analysis in the frequency range of 9 kHz-3 GHz or 9 kHz-6 GHz.

Ease of use: Built-in SignalVu-PC vector signal analysis software, support Bluetooth and WLAN (IEEE 802.11a /b/g/n/p/ac) signal quality analysis, pulse analysis, audio measurement, AM/FM/PM modulation analysis, universal digital modulation, etc.

Long-term value: Enables offline waveform analysis to observe, measure, and analyze data captured in the lab, and can be used with TekScope Anywhere's oscilloscope hardware.
