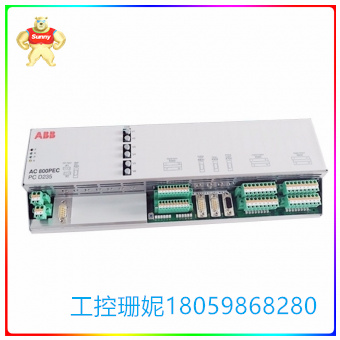

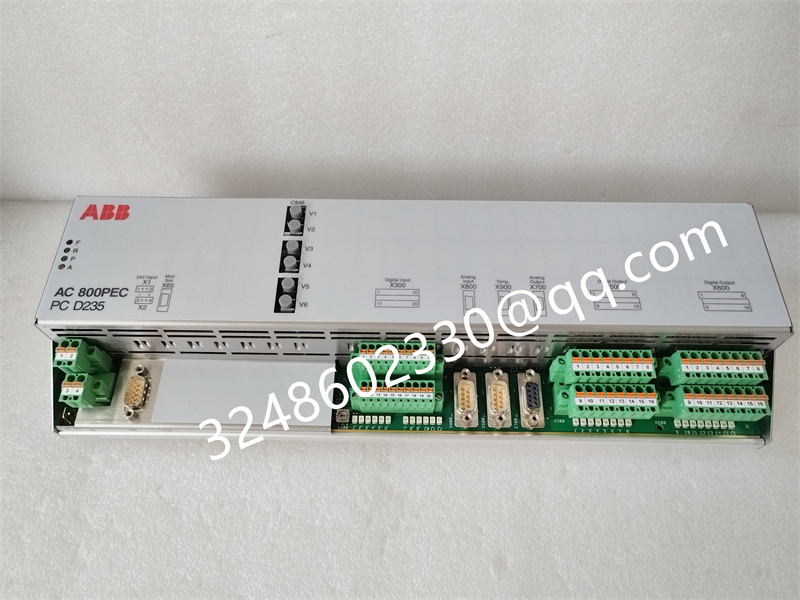

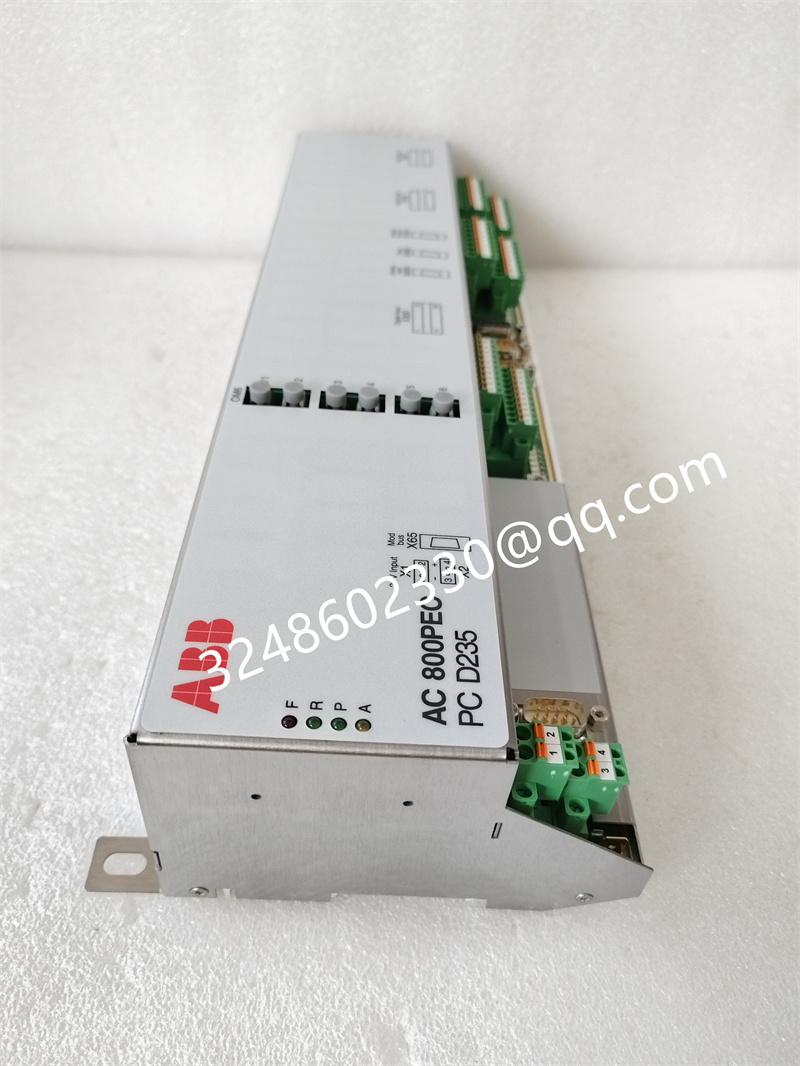

PDC235 3BHE032025R0101 Unitrol PC D235 励磁机控制模块

☆型号：PDC235 3BHE032025R0101 Unitrol PC D235 励磁机控制模块

【产品详情】

编号： 3BHE032025R0101

型号：PCD235A101

Unitrol PC D235 励磁机控制模块

制造商

ABB

型号

ABB UNITROL

预计运输尺寸

：15.0 英寸 x 6.0 英寸 x 3.0 英寸

（38.1 厘米 x 15.2 厘米 x 7.6 厘米）

重量：3 磅 3.5 盎司（1.5 千克）)

发电机励磁功率取自发电机端，经过励磁变压器LB降压，可控硅整流器KZL整流后给发电机励磁。自动励磁调节器根据装在发电机出口的电压互感器TV和电流互感器TA采集的电压、电流信号以及其它输入信号，按事先确定的调节准则控制触发三相全控整流桥可控硅的移相脉冲，从而调节发电机的励磁电流，使得在单机运行时实现自动稳压，在并网时实现自动调节无功功率，提高电力系统的稳定性。

发电机的线电压UAC和相电流IB分别经电压互感器和电流互感器变送后，经鉴相电路产生电压周期的方波脉冲和电压电流相位差的方波脉冲信号送PIC16F877微控制器，用PIC的计数器测量这两脉冲的宽度，便可得到相位差计数值，即电网的功率因素角。然后通过查表得出相应的功率因素，进一步求出有功功率和无功功率。

☆型号：PDC235 3BHE032025R0101 Unitrol PC D235 励磁机控制模块

【英文介绍】

Number: 3BHE032025R0101

Model: PCD235A101

Unitrol PC D235 exciter control module

manufacturer

ABB

Model number

ABB UNITROL

Estimated shipping size

: 15.0 inches x 6.0 inches x 3.0 inches

(38.1 cm x 15.2 cm x 7.6 cm)

Weight: 3 pounds 3.5 ounces (1.5 kg)

The excitation power of the generator is obtained from the generator end, reduced by the excitation transformer LB, and the thyristor rectifier KZL excites the generator after rectification. According to the voltage and current signals collected by the voltage transformer TV and the current transformer TA installed at the generator outlet and other input signals, the automatic excitation regulator controls and triggers the phase shift pulse of the three-phase fully controlled rectifier bridge thyristor according to the regulation criteria determined in advance, so as to adjust the excitation current of the generator and realize automatic voltage regulation during the operation of a single machine. The automatic adjustment of reactive power during grid connection can improve the stability of power system.

After the line voltage UAC and phase current IB are transmitted by the voltage transformer and the current transformer respectively, the square wave pulse of voltage period and the square wave pulse signal of voltage and current phase difference are generated by the phase detection circuit and sent to the PIC16F877 microcontroller. The width of the two pulses is measured by the PIC counter, and the phase difference meter value can be obtained, that is, the power factor Angle of the grid. Then the corresponding power factors are obtained by looking up the table, and the active power and reactive power are further calculated.

☆型号：PDC235 3BHE032025R0101 Unitrol PC D235 励磁机控制模块
