☆型号：P0101AG 16个离散输出通道 电流隔离
【产品详情】
产品描述

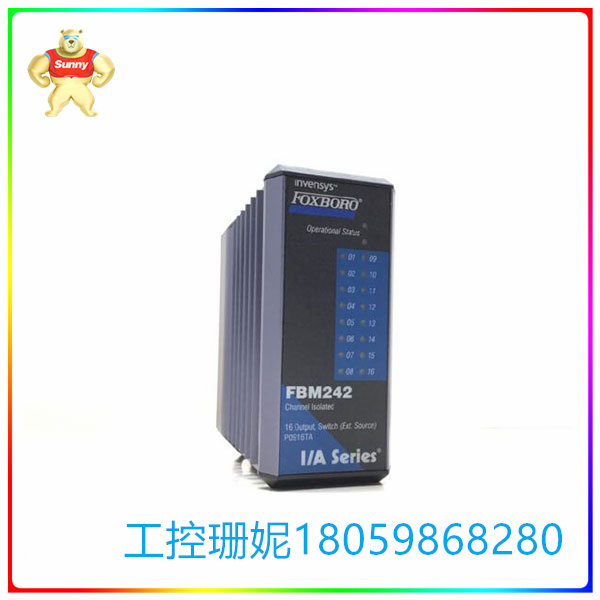

Compact FBM242离散输出接口模块包含16个离散输出通道，由您选择的客户选择的外部电源供电。
FOXBORO P0101AG FBM242的参数如下：
电压：24V
电流：100-400A
离散输出：16路
输入输出隔离：电流隔离
输入输出组隔离：支持
适用环境：G3类（恶劣）环境
输入滤波时间、故障安全配置、故障、安全回退以及持续或瞬时输出可配置
输入电压范围（冗余）：24伏直流电+5%，-10%
功耗（最大值）：24伏直流电时为3瓦（最大值）
散热：24伏直流电时为6.5瓦（最大值）
校准要求：模块和终端组件不需要校准。
温度模块：-20至+70摄氏度（-4至+158华氏度）
终端组件PVC：-20至+50摄氏度（-4至+122华氏度）
相对湿度：5至95%（非冷凝）
尺寸（长x宽x高）：10.4厘米x 4.5厘米x 11.4厘米
重量：0.284千克
FOXBORO P0101AG FBM242的特点如下：
支持15至60Vdc、120Vac/125Vdc、240Vac电压下的离散输出信号：每个输入和输出均为电流隔离，与外部激励一起使用时为组隔离，紧凑、坚固的设计适合G3类（恶劣）环境中的外壳，执行离散I/O或梯形逻辑程序，具有以下可配置选项输入滤波时间、故障安全配置、故障、安全回退以及持续或瞬时输出。
具有故障安全配置：在出现故障时，可以及时进行安全配置，保证设备安全。
具有故障、安全回退功能：在出现故障时，可以及时进行安全回退，保证设备正常运行。
☆型号：P0101AG 16个离散输出通道 电流隔离
【英文介绍】
Product description
The Compact FBM242 discrete Output Interface module contains 16 discrete output channels that are powered by an external power supply of your choice.
The FOXBORO P0101AG FBM242 parameters are as follows:
Voltage: 24V
Current: 100-400A
Discrete output: 16 channels
Input/output isolation: current isolation
Input/output group isolation: Supported
Applicable environment: G3 (harsh) environment
Input filtering time, fail-safe configuration, failure, safe rollback, and continuous or instantaneous output can be configured
Input voltage range (redundancy) : 24V DC +5%, -10%
Power consumption (Max) : 3 watts at 24 volts DC (Max)
Heat dissipation: 6.5 watts at 24 volts DC (Max)
Calibration requirements: Modules and terminal components do not require calibration.
Temperature module: -20 to +70 degrees Celsius (-4 to +158 degrees Fahrenheit)
End component PVC: -20 to +50 degrees Celsius (-4 to +122 degrees Fahrenheit)
Relative humidity: 5 to 95% (non-condensing)
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
Weight: 0.284 kg
FOXBORO P0101AG FBM242 has the following features:
Supports discrete output signals at voltages from 15 to 60Vdc, 120Vac/125Vdc, 240Vac: Each input and output is current isolated and group isolated when used with external excitation, compact, rugged design for enclosures in G3 class (harsh) environments, performs discrete I/O or ladder logic programs, with the following configurable options input filtering time, fail-safe configuration, failure, safe fallback, and continuous or instantaneous output.
Fail-safe configuration: When a fault occurs, you can configure the fail-safe configuration in time to ensure device security.
Failback and safety rollback: When a fault occurs, the device can be safely rolled back in time to ensure normal running of the device.
