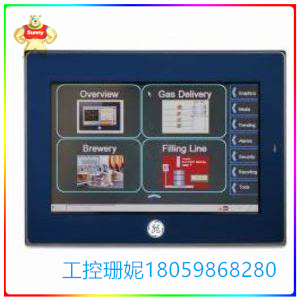

IC755CSS06RDA 带有彩色TFT LCD触摸屏操作界面

☆型号：IC755CSS06RDA 带有彩色TFT LCD触摸屏操作界面

【产品详情】

产品描述

IC755CSS06RDA是GE Automation QuickPanel + HMI，带有彩色TFT LCD触摸屏操作界面。 这种多合一微型计算机旨在为工业互联网提供最大的灵活性。整体设计基于先进的ARM内核微处理器，该微处理器将高分辨率触摸屏界面与可指定给用户的各种通信选项相结合。这款QuickPanel非常适合通过各种通信端口连接大多数工业设备，可以满足所有用户的需求。IC755CSS06RDA具有多种内存类型，其中 512 MB 的 DRAM 部分在对象存储、应用程序内存和操作系统之间分配。此外，还包括一个 256 MB 的非易失性闪存部分，用作虚拟硬盘驱动器。保持存储器是 512 KB 的电池备份 SRAM，可在电源故障时保护数据。

IC755CSS06RDA的操作系统Microsoft具有 RAM、ROM 和 SRAM 内存类型的 Windows Embedded Compact 7。7 英寸。触摸屏显示屏提供 LED 背光和两点投射电容式触摸。以太网、串行端口、USB（主机和设备）是标准配置。该装置的重量不到 2 磅，确实有安装选项，包括面板开孔和 VESA 安装，以便于访问。状态指示灯显示设备的功能，并带有用于音频指示的蜂鸣器。

本机的入门非常简单。用户只需连接随附的快速连接插头即可开始配置。可以在启动时添加选项输入配置。首先，包括一个 24 VDC 电源（通过接线端子）、一根带有 30-14 AWG 电线的电源线，如果需要，还包括一个 USB 兼容键盘和鼠标。

GE Fanuc IC755CSS06RDA终端是作为 Quickpanel+ 系列的一部分制造的产品。它旨在用于工业环境，是用于告知用户应用过程以及向用户提供有关整个系统运行状态的所有基本信息的重要工具。该端子设计用于额定输入电压为 24 伏直流电的电源，最大额定功耗为 15 瓦。GE Fanuc IC755CSS06RDA 操作终端采用对角线尺寸为 7 英寸的 TFT LCD 屏幕，并具有 LED 背光，可提供高水平的可视性。本机的显示分辨率为800 x 480像素。此外，它还支持飞思卡尔 i.MX535 ARM Cortex A8 处理器，速度为 1 GHz，以及容量为 2 MB 的 DDR512 RAM。其他存储器包括容量为 256 MB 的 SLC NAND ROM 和容量为 512 KB 的 SRAM。

GE Fanuc Quickpanel+ IC755CSS06RDA 操作界面终端具有多个通信端口，如 RS-232 UART 串行端口、3 个 USB 2.0 端口和 10/100BaseT 以太网端口，也称为 RJ-45 端口。此外，该操作界面终端还带有一个用于 SDHC 或 SD 存储卡的卡插槽，用于额外的存储目的或数据备份。IC755CSS06RDA 操作界面终端的尺寸为 7.5 x 5.3 x 1.4 英寸。本机支持面板安装，但也可支持 VESA 安装。它重约 0.8 公斤（1.7 磅）。此外，它适合将本机安装在相对湿度高达 85% 且无冷凝的环境中，并且其工作温度范围为 0 至 55 摄氏度。

☆型号：IC755CSS06RDA 带有彩色TFT LCD触摸屏操作界面

【英文介绍】

Product description

The IC755CSS06RDA is GE Automation QuickPanel + HMI with a color TFT LCD touch screen operator interface. This all-in-one microcomputer is designed to provide maximum flexibility for the industrial Internet. The overall design is based on an advanced ARM-core microprocessor that combines a high-resolution touchscreen interface with a variety of communication options that can be specified to the user. This QuickPanel is ideal for connecting most industrial equipment through a variety of communication ports and can meet the needs of all users. The IC755CSS06RDA has a variety of memory types, with a 512 MB DRAM portion divided between object storage, application memory, and the operating system. In addition, a 256 MB non-volatile flash memory section is included for use as a virtual hard drive. The hold memory is a 512 KB battery backup SRAM that protects data in the event of a power failure.

The IC755CSS06RDA's operating system, Microsoft, has Windows Embedded Compact 7 with RAM, ROM, and SRAM memory types. Seven inches. The touchscreen display offers LED backlight and two-point projection capacitive touch. Ethernet, serial ports, and USB (host and device) are standard. The unit weighs less than 2 pounds and does have mounting options, including panel openings and VESA mounting for easy access. The status indicator shows the functionality of the device and comes with a buzzer for audio indication.

Getting started with this unit is easy. Users simply connect the included quick connection plug to start the configuration. Option input configuration can be added at startup. First, include a 24 VDC power supply (via the terminal), a power cord with 30-14 AWG wires, and if required, a USB-compatible keyboard and mouse.

The GE Fanuc IC755CSS06RDA terminal is manufactured as part of the Quickpanel+ family. It is intended for use in industrial environments and is an important tool for informing the user about the application process as well as providing the user with all the basic information about the operating status of the entire system. The terminal is designed for power supplies with a rated input voltage of 24 volts DC and a maximum rated power consumption of 15 watts. The GE Fanuc IC755CSS06RDA operating terminal features a 7-inch TFT LCD screen with a diagonal size and an LED backlight to provide a high level of visibility. The display resolution is 800 x 480 pixels. It also supports a Freescale i.MX535 ARM Cortex A8 processor with a speed of 1 GHz, and DDR512 RAM with a capacity of 2 MB. Additional memory includes SLC NAND ROM with a capacity of 256 MB and SRAM with a capacity of 512 KB.

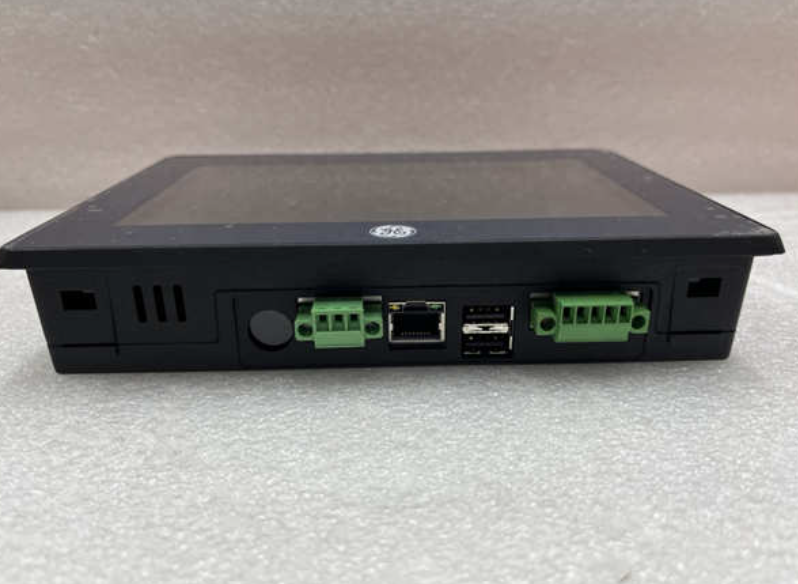

The GE Fanuc Quickpanel+ IC755CSS06RDA Operating interface terminal has multiple communication ports such as the RS-232 UART serial port, 3 USB 2.0 ports, and 10/100BaseT Ethernet port, also known as the RJ-45 port. In addition, the operating interface terminal comes with a card slot for SDHC or SD memory cards for additional storage purposes or data backup. The IC755CSS06RDA operator interface terminal measures 7.5 x 5.3 x 1.4 inches. Panel installation is supported, but VESA installation is also supported. It weighs about 0.8 kilograms (1.7 pounds). In addition, it is suitable for installing the unit in an environment with a relative humidity of up to 85% and no condensation, and its operating temperature range is 0 to 55 degrees Celsius.

☆型号：IC755CSS06RDA 带有彩色TFT LCD触摸屏操作界面
