IC200UDR005 微型PLC模块 直流输入

☆型号：IC200UDR005 微型PLC模块 直流输入

【产品详情】

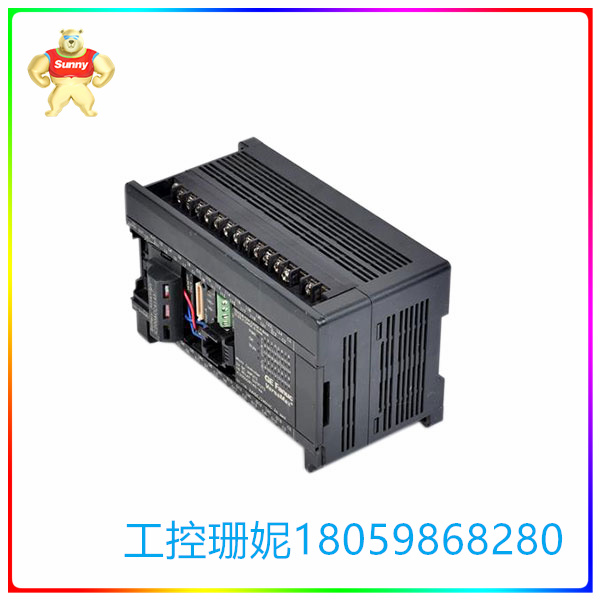

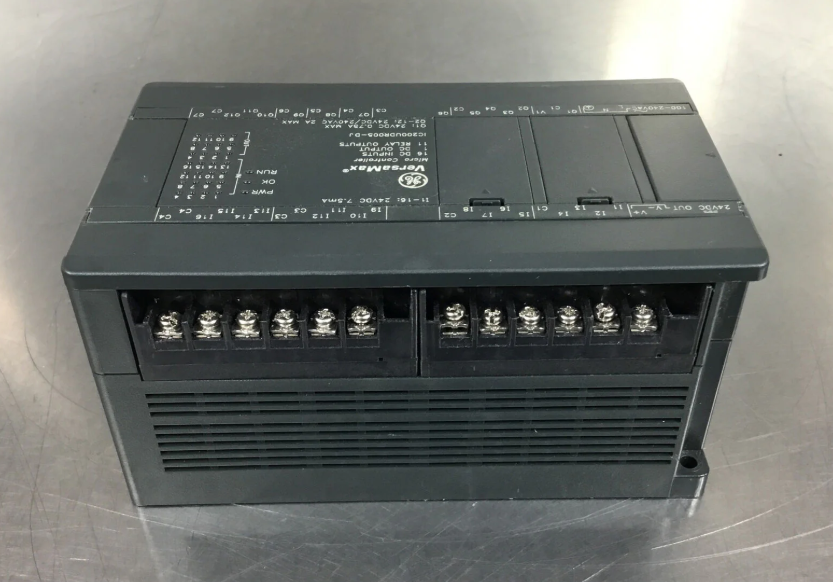

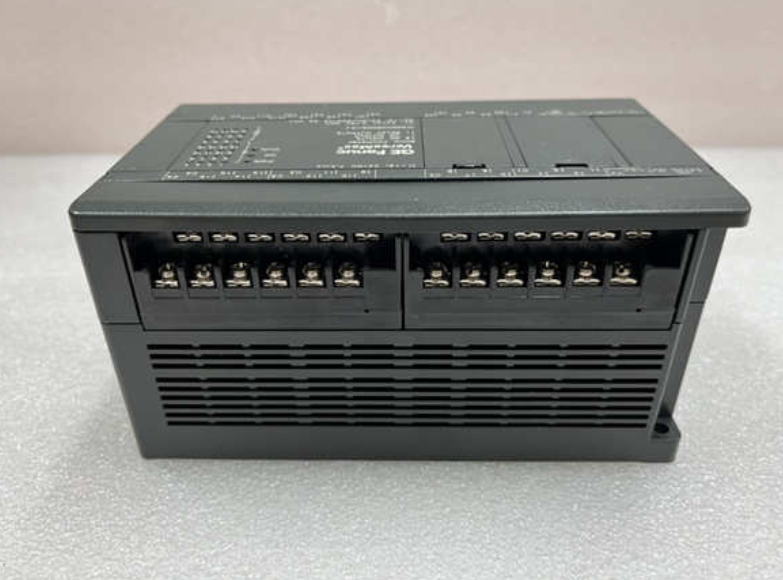

IC200UDR005模块是由GE Fanuc Automation制造的28点微型PLC模块，是Versamax产品线的成员。它具有 16 个直流输入、1 个额定电压为 24 伏的直流输出和 11 个额定电流为 2 安培的常开继电器输出。该 PLC 模块支持多达 4 个扩展单元，允许以任意组合进行连接。PLC 模块的标称工作输入功率要求为 100 至 240 伏。IC200UDR005 可编程逻辑控制器模块的功能包括 2 个串行通信端口、2 个模拟电位器、一个实时时钟和一组具有浮点数学运算功能的全功能编程指令。可以使用软件配置串行端口，以帮助在系统 CPU 和串行设备之间建立可靠的通信。

GE Fanuc IC200UDR005 28点微型PLC模块支持不同的编程语言，如指令表和梯形图语言。它的出货尺寸为 90 x 76 x 150 毫米，支持 1 个 A 型计数器、1 个 B 型计数器和 4 个 A 型高速计数器。该模块的直流输入可与多种输入设备一起使用，例如限位开关、按钮和电子接近开关。GE Fanuc IC200UDR005 PLC模块兼容并使用大值电容器，该电容器至少可将内存内容保留30分钟。它还能够将直流输入配置为高速计数器、标准输入、脉冲序列输入或PWM输入。有一个 A 型继电器输出，它是一种单掷和单极继电器，用于控制螺线管、电机启动器和指示灯等设备。

☆型号：IC200UDR005 微型PLC模块 直流输入

【英文介绍】

The IC200UDR005 module is a 28-point micro PLC module manufactured by GE Fanuc Automation and is a member of the Versamax product line. It has 16 DC inputs, 1 DC output rated at 24 volts, and 11 normally open relay outputs rated at 2 amps. The PLC module supports up to 4 expansion units, allowing connection in any combination. The nominal operating input power requirements for PLC modules are 100 to 240 volts. The functions of the IC200UDR005 programmable logic controller module include 2 serial communication ports, 2 analog potentiometers, a real-time clock and a set of full-featured programming instructions with floating-point math operations. Serial ports can be configured using software to help establish reliable communication between the system CPU and serial devices.

GE Fanuc IC200UDR005 28-point micro PLC module supports different programming languages such as instruction table and ladder diagram languages. It ships with A size of 90 x 76 x 150 mm and supports 1 Type A counter, 1 Type B counter and 4 Type A high-speed counters. The DC input of the module can be used with a variety of input devices, such as limit switches, buttons and electronic proximity switches. The GE Fanuc IC200UDR005 PLC module is compatible with and uses a high-value capacitor that can retain the contents of the memory for at least 30 minutes. It is also capable of configuring the DC input as a high-speed counter, standard input, pulse train input, or PWM input. There is A Type A relay output, which is a single throw and single pole relay for controlling devices such as solenos, motor starters and indicators.
