CRBX01 远程总线扩展器 主机体系结构

☆型号：CRBX01 远程总线扩展器 主机体系结构

【产品详情】

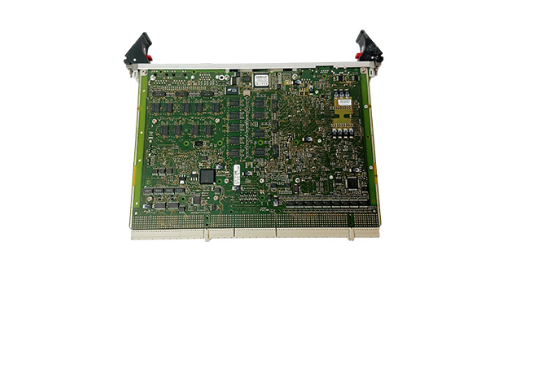

ABB-2VAA008424R1 cRBX01 远程总线扩展器

现场控制是一系列高度模块化的分布式I/O和控制产品。它们很合适

适用于各种主机体系结构。

现场控制系统的核心是总线接口单元。总线接口单元提供

智能处理、I/O扫描和*多八个I/O组的功能配置

模块。总线接口单元及其模块一起构成现场控制站（参见

插图（左）。

总线接口单元和I/O模块封装在坚固、紧凑的铝外壳中。公共汽车

接口单元和I/O模块用螺栓牢固地固定在单独的接线板上，接线板提供所有现场数据

接线端子。I/O接线板是通用的，允许使用不同的I/O模块类型

安装在同一基座上。I/O接线板可与箱式端子、屏障式端子一起使用

端子或线路板连接器。所有接线板必须安装在DIN导轨上。这个

DIN导轨作为接地系统的一个组成部分，也可以安装在面板上。

现场控制功能

现场控制的特点和好处包括：

„节省布线

„更好的准备时间

„易于安装和维护

„节省备件

„低成本

„功能灵活性

„开放式体系结构/适用于各种网络

„分布式I/O

„小型紧凑型输入/输出模块，带有通用端子接线底座。

„DIN导轨安装

☆型号：CRBX01 远程总线扩展器 主机体系结构

【英文介绍】

ABB-2VAA008424R1 cRBX01 Remote bus extender

Field Control is a series of highly modular distributed I/O and control products. They fit

Suitable for a variety of host architectures.

The core of the field control system is the bus interface unit. Bus interface unit provided

Intelligent processing, I/O scanning, and up to eight I/O groups

Modules. The bus interface unit and its modules together form a field control station (see

Illustration (left).

The bus interface unit and I/O module are packaged in a robust, compact aluminum housing. bus

Interface units and I/O modules are bolted securely to separate patch panels that provide all field data

The wiring terminals. The I/O patch board is generic and allows different I/O module types to be used

Mounted on the same base. I/O terminals can be used with box terminals and screen terminals

Terminal or circuit board connector. All connectors must be mounted on DIN rails. this

The DIN rail is an integral part of the grounding system and can also be mounted on the panel.

Field control function

Features and benefits of field control include:

„ Save wiring

„ Better preparation time

„ Easy to install and maintain

„ Spare parts saved

„ low cost

„ Functional flexibility

„ Open architecture/Suitable for a variety of networks

„ Distributed I/O

„ Small compact input/output module with universal terminal base.

„DIN rail mounting
