531X301DCCAFG2 处理器板 驱动控制板

☆型号：531X301DCCAFG2 处理器板 驱动控制板

【产品详情】

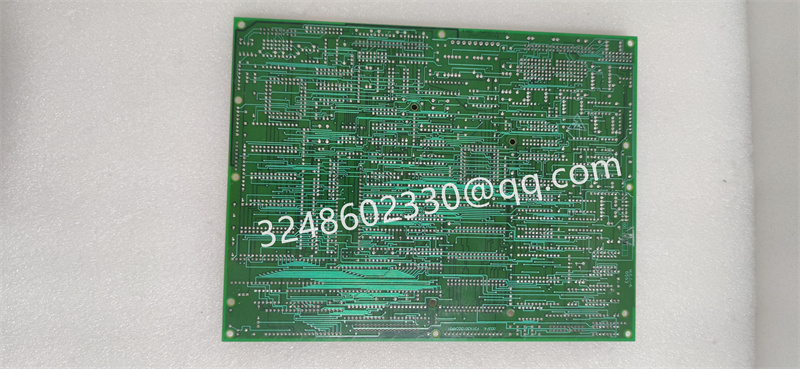

531X301DCCAFG2 是由通用电气制造和设计的驱动控制板，是用于驱动控制系统的 Mark V 系列的一部分。在控制处理器板上找到一个英特尔 80186 微处理器。将新软件下载到EEPROM上后，可以使用电路板上的一个小按钮开关来重新启动处理器。

电源要求

Mark V 面板可以从各种来源获取电力。在进入 Mark V 面板之前，每个电源输入源（两个交流电源和两个直流电源）应通过其自己的外部 30 A 2 极热磁断路器。一个 125 V 直流电源和/或最多两个 120/240 V 交流电源都可以用作电源。

通用的 125 V 直流面板配电总线用于为面板中每个内核所具有的每个电源板供电。

日志函数

警报在发生和清除时都以 62 毫秒的分辨率记录。

打印机以 62 毫秒的单个时间标签分辨率记录事件（涡轮机运行），例如接合转动齿轮或关闭发电机断路器。事件可以由用户定义并动态修改。

在打印机上，事件（触点输入）以 1 毫秒的唯一时间标签记录。事件日志记录对 Mark V 所做的每个触点输入，可以从事件日志中删除单个触点输入，并且可以在现场打开或关闭记录。

涡轮机跳闸分析在跳闸日志中有一个记录。每个样本最多可以包含 63 个参数，其中 3 个行程后样本持续 3 秒，38 个行程前样本持续 5 小时。您可以打印此信息或在显示屏上查看。当设备重新启动时，跳闸日志的冻结被打破，样本开始替换日志中的内存位置。

☆型号：531X301DCCAFG2 处理器板 驱动控制板

【英文介绍】

The 531X301DCCAFG2 is a drive control board manufactured and designed by General Electric as part of the Mark V series for drive control systems. Found an Intel 80186 microprocessor on the control processor board. After downloading the new software to the EEPROM, the processor can be restarted using a small pushbutton switch on the circuit board.

Power requirements

Mark V panels can draw power from a variety of sources. Before entering the Mark V panel, each power input source (two AC power supplies and two DC power supplies) should pass through its own external 30 A 2 extreme thermal magnetic circuit breaker. One 125 V DC power supply and/or up to two 120/240 V AC power supplies can be used as power supplies.

The universal 125 V DC panel distribution bus is used to power each power board that each core in the panel has.

Log function

Alerts are recorded at a resolution of 62 milliseconds when they occur and when they are cleared.

The printer records events (turbine operations), such as engaging a turning gear or turning off a generator circuit breaker, at a single time-label resolution of 62 milliseconds. Events can be user-defined and dynamically modified.

On the printer, the event (contact input) is recorded with a unique time label of 1 millisecond. Event log records every contact input made by Mark V, individual contact inputs can be deleted from the event log, and records can be turned on or off in the field.

Turbine trip analysis has a record in the trip log. Each sample can contain up to 63 parameters, with 3 post-trip samples lasting 3 seconds and 38 pre-trip samples lasting 5 hours. You can print this information or view it on the display. When the device restarts, the freeze on the trip log is broken and the sample begins to replace the memory location in the log.
