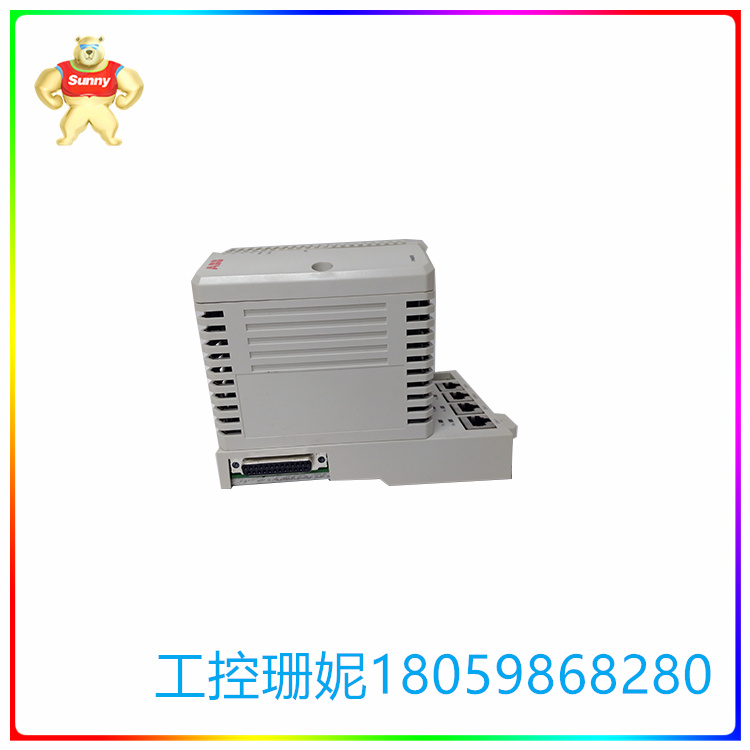

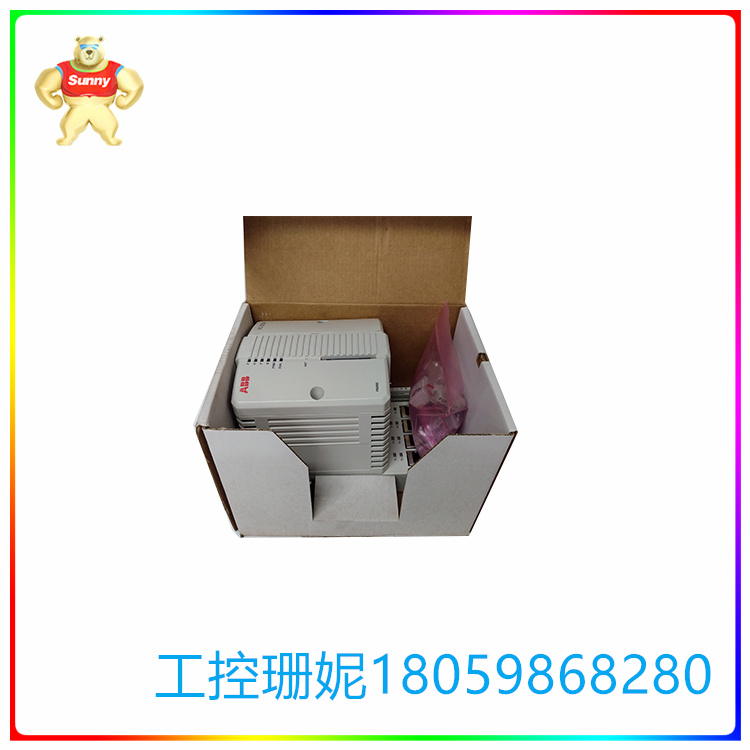

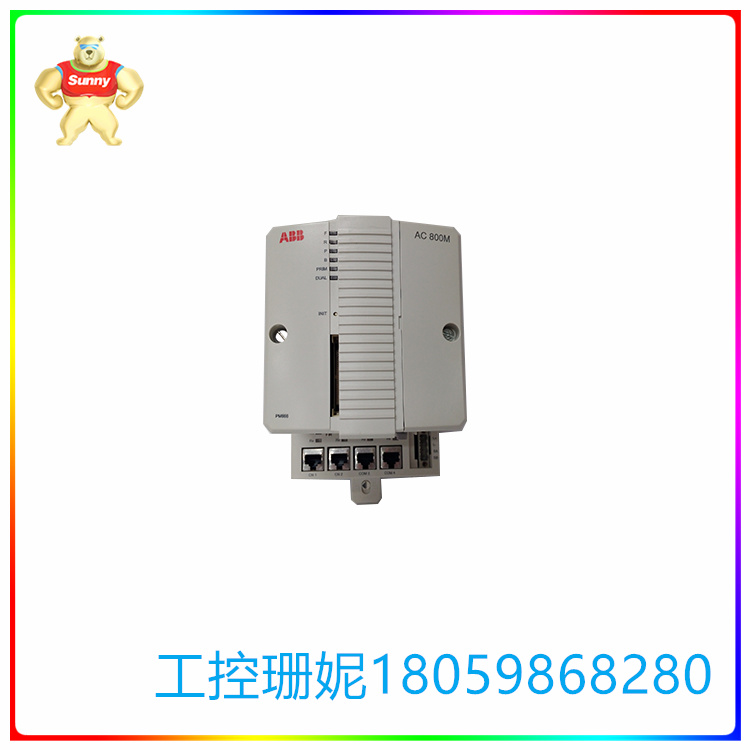

☆型号：PM866K01 3BSE050198R1 处理器单元 单元终结器
【产品详情】
PM866K01 3BSE050198R1 AC800M 处理器单元套件是一个整体单元，配备了电源、CPU主板和单元终结器。该设备包含微处理器和RAM、实时时钟、LED指示灯、启动按钮和安全的数字接口。它具有两个RJ45以太网端口（CN1、CN2）用于连接到控制网络，以及一个RJ45串行端口（COM4）。COM4端口被隔离并用于配置工具。AC800M支持CPU冗馀以实现高可用性（CPU、CEX-Bus、通信接口和S800 I/O）。通讯扩展总线（CEX-Bus）安装在设备上。CEX总线用于扩展带有通信接口单元的板上通信端口。此外，该设备使用光纤模块总线来连接七个S800 I/O单元群集（每个单元组成12个单元）。每个PM866K01 3BSE050198R1 AC800M附带一个唯一的以太网地址，可为设备提供硬件标识。
产品参数:
—型号:PM866K01
-部件编号:3BSE050198R1
-通信协议:以太网，Modbus, TCP, PROFIBUS
—供电方式:24vdc
-输入/输出通道:16个DI, 16个DO, 4个AI, 2个AO, 2个PT100输入
—内存:4mb RAM, 8mb Flash
规格:
—外形尺寸:150mm × 110mm × 75mm
—工作温度:-40℃~ +70℃
-认证:CE, UL, CSA
☆型号：PM866K01 3BSE050198R1 处理器单元 单元终结器
【英文介绍】
The PM866K01 3BSE050198R1 AC800M processor unit kit is an integral unit equipped with a power supply, CPU motherboard, and unit terminator. The device includes a microprocessor and RAM, a real-time clock, LED indicators, a start button, and a secure digital interface. It has two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, and a RJ45 serial port (COM4). The COM4 port is isolated and used for the configuration tool. The AC800M supports CPU redundancy for high availability (CPU, CEX-Bus, communication interfaces, and S800 I/O). The Communication Extension Bus (CEX-Bus) is installed on the device. The CEX bus is used to extend on-board communication ports with communication interface units. In addition, the device uses a fiber-optic module bus to connect clusters of seven S800 I/O units (each of which makes up 12 units). Each PM866K01 3BSE050198R1 AC800M comes with a unique Ethernet address that provides a hardware identity for the device.
Product parameters:
- Model :PM866K01
- Component number :3BSE050198R1
- Communication protocols: Ethernet, Modbus, TCP, PROFIBUS
- Power supply mode :24vdc
- Input/output channels :16 DI, 16 DO, 4 AI, 2 AO, 2 PT100 inputs
- Memory :4mb RAM and 8mb Flash
Specifications:
- Overall dimensions :150mm × 110mm × 75mm
- Operating temperature :-40 ° C to +70 ° C
- Certification :CE, UL, CSA
