☆型号：NTDI01 端子板 数字IO终端单元 过程管理系统 I/O 信号

【产品详情】

数字I/O终端单元（TDI）是INFI的接口®90过程管理系统 I/O 信号。它提供了用于过程现场布线的物理连接点，以及配置接收系统 I/O 信号。本说明描述了目的、特点和细节终端单元的 tions。它详细说明了要遵循的过程设置和安装终端单元，并解释维护Nance 和更换程序。使用 TDI 的系统工程师或技术人员应阅读并在安装和配置之前了解此说明 -使用终端单元。此外，一个完整的INFI 90 系统的地位对用户有利。

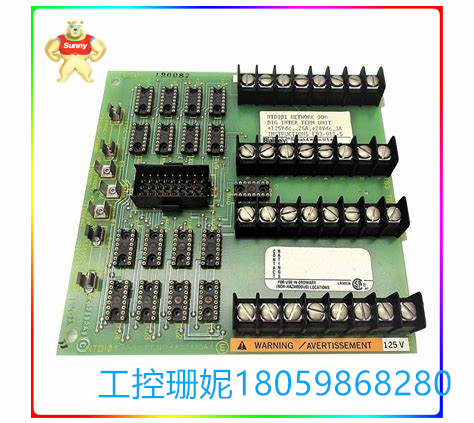

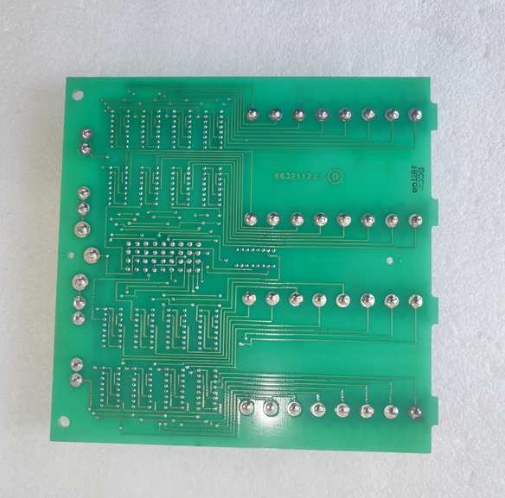

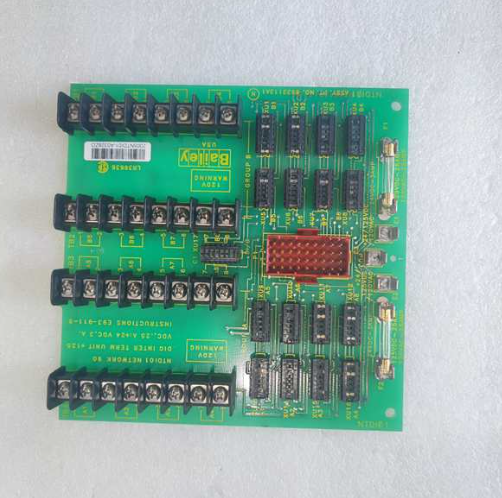

介绍硬件说明特征多才多艺适应可靠系统保护小修硬件说明1 - 2TDI 是连接到现场的单个印刷电路板INFI 90 机柜内的端接面板 （NFTP01）。二螺钉和垫片将 TDI 固定到位。多达 16 个 indi-vidual I/O 信号可以连接到 TDI。印刷的 cir-CUIT板由以下部分组成：1. 16 点配置插座（XU1 至 XU16）用于连接绘制每个 I/O 信号。2. 四个接线端子（TB1 至 TB4），提供物理I/O 信号的连接点。3. 连接终端的终端电缆插座 （P1） -将单元连接到其从站或主站模块。4. I/O 电源（24 VDC、125 VDC 或 120 VAC）连接点（E1、E2 和 E3 公共点）用于系统供电配置tions。5. 两个板载保险丝（F1 和 F2）用于保护 E1/E2 电源连接到终端单元的电源和现场设备。6. 终端单元配置插座（XU17）进行配置TDI 信号路由，适用于某些应用。TDI 的设计使其可以与各种 INFI 一起使用90 个模块。它可用于将数字或模拟信号输入到INFI 90 系统，或将数字或模拟信号输出到现场设备。这些信号提供了控制和监测能力。与系统的联系。16 个单独的 I/O 信号可以连接到 TDI。这些信号可以根据过程进行配置要求。终端单元上的分流器配置每个 I/O 通道。每个通道都可以配置为一个系统供电信号或现场供电信号。TDI 是无源组件，没有有源组件安装在其电路板上;它不需要电源即可操作吃。这使得终端单元不易发生故障。保险丝电源输入可保护 INFI 90 模块电路和专业CESS 现场设备。除 中定义的日常维护外TDI 没有任何特殊的维护要求。

☆型号：NTDI01 端子板 数字IO终端单元 过程管理系统 I/O 信号

【英文介绍】

The Digital I/O Terminal Unit (TDI) is INFI's interface ®90 process management system I/O signal. It provides a physical connection point for process site wiring, as well as configuration to receive system I/O signals. This note describes the purpose, characteristics and details of the end unit's tions. It details the process to follow to set up and install the terminal unit and explains maintenance Nance and replacement procedures. System engineers or technicians working with TDI should read and understand this instruction prior to installation and configuration - Use the terminal unit. In addition, the position of a complete INFI 90 system is beneficial to users.

Hardware description Feature Versatility Adaptability to reliable system protection Minor repair Hardware Description 1-2TDI is an end panel (NFTP01) in the INFI 90 cabinet that is connected to a single printed circuit board. Two screws and spacers hold the TDI in place. Up to 16 indi-vidual I/O signals can be connected to the TDI. The printed cir-CUIT board consists of the following parts: 1. A 16-point configuration socket (XU1 to XU16) is used to connect and draw each I/O signal. 2. Four terminals (TB1 to TB4) provide connection points for physical I/O signals. 3. Terminal cable socket (P1) connecting the terminal - connecting the unit to its slave or master module. 4. I/O power (24 VDC, 125 VDC, or 120 VAC) connection points (E1, E2, and E3 common points) for system power configuration tions. 5. Two onboard fuses (F1 and F2) are used to protect the E1/E2 power supply connected to the end unit's power supply and field equipment. 6. The terminal unit is configured with XU17 to configure the TDI signal route, which is suitable for some applications. TDI is designed so that 90 modules can be used with a variety of INFIs. It can be used to input digital or analog signals to INFI 90 systems, or to output digital or analog signals to field devices. These signals provide control and monitoring capabilities. Contact with the system. 16 individual I/O signals can be connected to the TDI. These signals can be configured according to process requirements. The shunt on the end unit configures each I/O channel. Each channel can be configured as either a system power signal or a field power signal. TDI is a passive component and has no active component installed on its board; It does not require a power source to operate. This makes the end unit less prone to failure. The fuse power input protects the INFI 90 module circuits and professional CESS field equipment. TDI does not have any special maintenance requirements other than the routine maintenance defined in this section.
