DI818 3BSE069052R1 有 32 个数字输入 电压监控

☆型号：DI818  3BSE069052R1 有 32 个数字输入 电压监控

【产品详情】

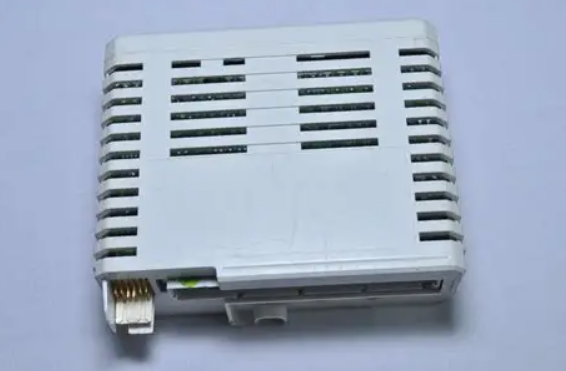

该模块有 32 个数字输入。输入电压范围为 18 至 30 V 直流，24 V 时输入电流为 4.3mA。输入分为两个独立隔离的组，每组有 16 个通道和一个电压监控输入。每个输入通道都由限流元件、EMC保护元件、输入状态指示LED和光隔离栅组成。如果电压消失，过程电压监控输入会给出通道错误信号。错误信号可以通过 ModuleBus 读取。

特点和优势

32 个通道，用于 24 V 直流输入，带电流吸收

两组 16 个通道的隔离组，带电压监控

电压监控

信号滤波

☆型号：DI818  3BSE069052R1 有 32 个数字输入 电压监控

【英文介绍】

The module has 32 numeric inputs. The input voltage range is 18 to 30 V DC, and the input current is 4.3mA at 24 V. The inputs are divided into two independently isolated groups, each with 16 channels and a voltage monitoring input. Each input channel consists of a current limiting element, an EMC protection element, an input status indicator LED, and an optical isolation gate. If the voltage disappears, the process voltage monitoring input will give a channel error signal. The error signal can be read by the ModuleBus.

Characteristics and advantages

32 channels for 24 V DC input with current absorption

Two 16-channel isolation groups with voltage monitoring

Voltage monitoring

Signal filtering

☆型号：DI818  3BSE069052R1 有 32 个数字输入 电压监控
