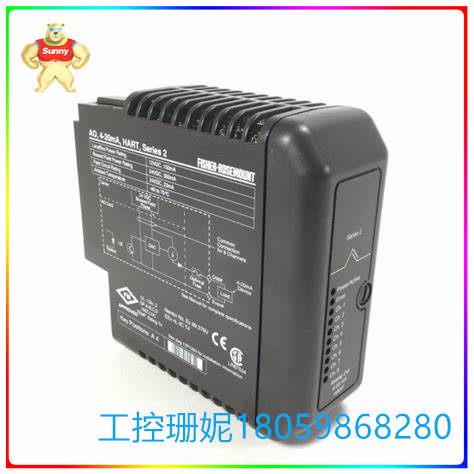

☆型号：KJ3221X1-BA1 HART 系列 2 冗余卡
【产品详情】
品牌 ： DeltaV （by Emerson）
产品编号型号： KJ3221X1-BA1
产品类型 ： AO， 8 通道， 4-20 mA， HART 系列 2 冗余卡
LocalBus 额定功率：150 mA 时为 12 VDC
总线励磁功率额定值：24 VDC at 300 mA
励磁电路额定值：24 VDC at 23 mA
环境规格
环境温度：-40至70°C
冲击：10g 1/2 正弦波，持续 11 毫秒
振动：1mm峰峰值，5至16Hz;0.5g（16 至 150Hz）
空气污染物 ： ISA-S71.04 –1985 空气污染物 G3 类
相对湿度：5 至 95%，无冷凝 IP 20 等级
接线端子按键位置：A4
这种模块的测量可以和其它模块的测量一起组成涡轮机械保护系统, 以及作为输入提供给分析诊断系统、现场总线系统、分散控制系统、电厂/主计算机、网络如：WAN/LAN网、以太网。对于蒸汽机、燃汽机、水轮机、压缩机、风扇、离心机以及其它涡轮机械。使用本系统可提高使用效率、运行安全性和延长机械使用寿命。
通过便携机（连接模块前面板RS232端口）可以对模块的运行方式进行组态或调整，还可以读出和显示测量值以及zui近一次的起机或停机的数据。
☆型号：KJ3221X1-BA1 HART 系列 2 冗余卡
【英文介绍】
Brand: DeltaV (by Emerson)
Product number Model: KJ3221X1-BA1
Product Type: AO, 8-channel, 4-20 mA, HART Series 2 redundant cards
LocalBus power rating: 12 VDC at 150 mA
Bus excitation power rating: 24 VDC at 300 mA
Excitation circuit rating: 24 VDC at 23 mA
Environmental specification
Ambient temperature: -40 to 70°C
Shock: 10g 1/2 sine wave for 11 milliseconds
Vibration: 1mm peak-to-peak value, 5 to 16Hz; 0.5g (16 to 150Hz)
Air pollutants: ISA-S71.04-1985 Air pollutants G3
Relative humidity: 5 to 95%, non-condensing IP grade 20
Terminal key position: A4
Measurements of this module can be combined with measurements of other modules to form turbomachinery protection systems, as well as provided as input to analytical diagnostic systems, fieldbus systems, decentralized control systems, power plants/main computers, networks such as WAN/LAN networks, and Ethernet. For steam engines, gas engines, water turbines, compressors, fans, centrifuges and other turbo-machinery. Using this system can improve the efficiency, operation safety and prolong the service life of the machine.
Through the portable computer (connected to the RS232 port on the front panel of the module), the operation mode of the module can be configured or adjusted, and the measurement value and the latest startup or shutdown data can be read and displayed.
