REF542plus多功能保护和开关室控制单元是前REF542单元的进一步发展。与其前身一样，它具有以下功能:

保护

测量

控制

监控

上述所有功能和电能质量功能都集成在一个可编程环境中。这些新一代设备的卓越灵活性和可扩展性导致了一个智能和干净的解决方案，传统方法将是无效和昂贵的。下图展示了几种配电盘中ref542 +的安装示例。

如图3所示，REF542plus由两个部分组成，一个中央单元和一个独立的人机界面(HMI)。中央单元包含电源、处理器、模拟和二进制输入输出(I/O)模块，以及用于补充功能的可选模块。

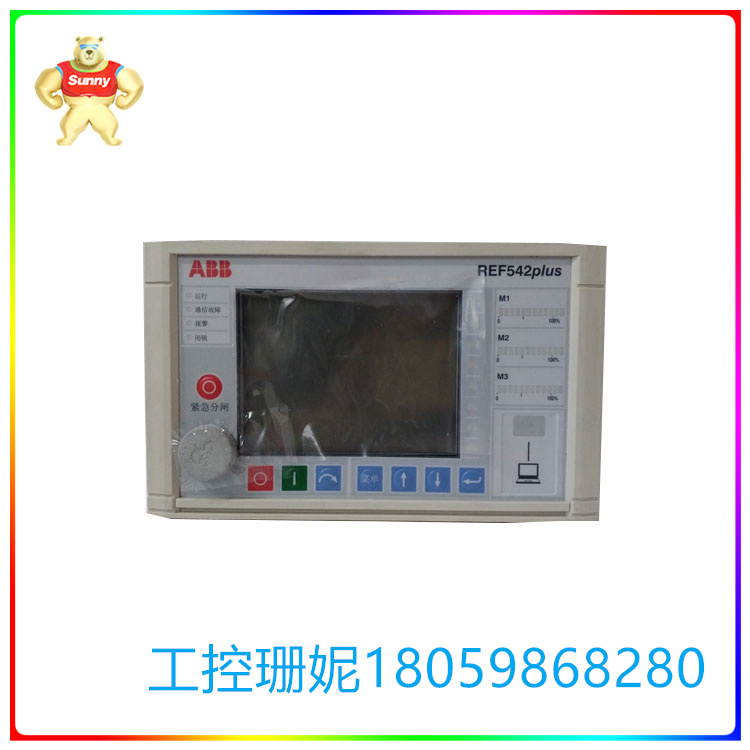

人机界面控制单元是一个独立的单元，有自己的电源。它可以安装在低电压(LV)舱门上，也可以安装在靠近中央机组的专用舱内。HMI通常用于设置保护参数和对开关柜内的开关设备进行本地操作。HMI通过RS485接口通过屏蔽隔离双绞线连接到中央单元。图4显示了中央单元和人机界面控制单元在开关柜配电盘的低压室中的安装情况

REF542plus多功能保护和开关控制单元将所有次要功能集成在一个单元中。这种多功能装置还具有自我监控功能。所有功能都设计为可自由配置的软件模块。因此，可以毫无问题地满足中压站的各种操作要求。该软件的多功能性使得可以在每个配电盘上独立使用REF542plus，而不依赖于所需的特定应用。

ABB REF542plus 1VCR007346 G0012多功能保护和开关室控制单元

【英文介绍】

The REF542plus multifunctional protection and switch room control unit is a further development of the former REF542 unit. Like its predecessor, it has the following features:

Protection

measure

Controls

Supervisory control

All of the above functions and power quality functions are integrated in a programmable environment. The superior flexibility and scalability of these new generation devices has resulted in a smart and clean solution where traditional methods would have been ineffective and expensive. The following figure shows an example of ref542 + installation in several switchboards.

As shown in Figure 3, the REF542plus consists of two parts, a central unit and a separate human machine interface (HMI). The central unit contains power, processor, analog and binary input/output (I/O) modules, as well as optional modules for complementary functions.

The HMI control unit is an independent unit with its own power supply. It can be installed on a low voltage (LV) cabin door or in a dedicated cabin close to the central unit. The HMI is typically used to set protection parameters and perform local operations on switchgear in the switchgear cabinet. The HMI is connected to the central unit through shielded isolated twisted pair cables over the RS485 port. Figure 4 shows the installation of the central unit and the HMI control unit in the low-voltage chamber of the switchboard

The REF542plus multifunctional protection and switching control unit integrates all secondary functions in a single unit. This multifunctional device also has a self-monitoring function. All functions are designed as freely configurable software modules. Therefore, the various operational requirements of the medium voltage station can be met without any problems. The versatility of the software makes it possible to use REF542plus independently on each panel, without depending on the specific application required.
