2198-C1015-ERS 工业伺服驱动器 具有更大的灵活性

☆型号：2198-C1015-ERS 工业伺服驱动器 具有更大的灵活性

【产品详情】

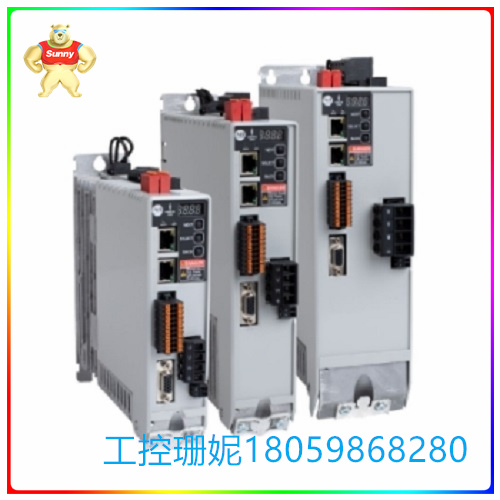

2198-C1015-ERS 伺服驱动器是 Allen-Bradley Kinetix 5300 系列工业伺服驱动器。它采用紧凑的模块化设计，比大型驱动器具有更大的灵活性，并且易于安装、调试和维护过程。2198-C1015-ERS 伺服驱动器还在以太网/IP 网络上提供集成运动。该模块为快速、经济高效的应用提供了强大的驱动概念。2198-C1015-ERS 伺服驱动器使用各种组件，如反馈连接器套件、控制器平台、线性执行器和电机、2090 系列电缆、交流线路滤波器和外部分流电阻器，以构建完整的 Kinetix 5300 伺服驱动器系统。该模块可轻松集成到制造系统和其他复杂系统中。

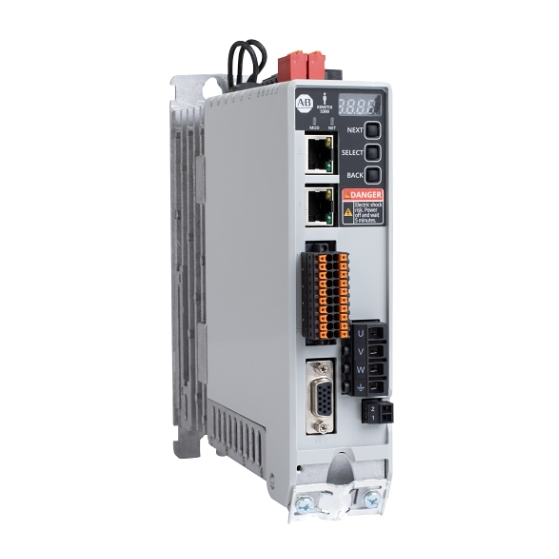

2198-C1015-ERS 伺服驱动器具有 4 个字符的状态显示和导航按钮，可实现高效监视和控制。它还带有 4 个可配置的数字输入和 7 个可配置的功能，可以使用 Logix Designer 应用程序进行配置。其数字输入使用 24 伏直流电和 15 毫安的电源。这些灌电流输入可以连接到源设备。2198-C1015-ERS 伺服驱动器的主要规格包括 6.58 安培的主交流输入电流、19.75 安培的峰值交流输入电流、一个 60 欧姆内分流电阻器、50 瓦的内分流电源和 387.5/377.5 伏的内分流开/关电压。它使用最低额定值为 75 摄氏度的铜线。它必须安装在具有平坦和刚性垂直表面的面板中。它提供弹簧设置的电机保持制动器。此驱动器的外壳必须允许面板右侧和左侧通风，以符合 UL 应用。

☆型号：2198-C1015-ERS 工业伺服驱动器 具有更大的灵活性

【英文介绍】

The 2198-C1015-ERS servo drive is an Allen-Bradley Kinetix 5300 series industrial servo drive. It features a compact modular design that offers greater flexibility than larger drives and is easy to install, debug and maintain. The 2198-C1015-ERS servo drive also provides integrated motion over Ethernet /IP networks. The module provides a powerful driving concept for fast, cost-effective applications. The 2198-C1015-ERS servo drive uses a variety of components such as feedback connector kits, controller platforms, linear actuators and motors, 2090 series cables, AC line filters and external shtary resistors to build the complete Kinetix 5300 servo drive system. The module can be easily integrated into manufacturing systems and other complex systems.

The 2198-C1015-ERS servo drive features a 4-character status display and navigation button for efficient monitoring and control. It also comes with 4 configurable numeric inputs and 7 configurable functions that can be configured using the Logix Designer application. Its digital input uses 24 volts of direct current and a 15 mah power supply. These feed current inputs can be connected to the source device. The main specifications of the 2198-C1015-ERS servo drive include 6.58 amps of main AC input current, 19.75 amps of peak AC input current, a 60 ohms-internal shunt resistor, 50 watts of internal shunt supply, and 387.5/377.5 volts of internal shunt on/off voltage. It uses copper wire with a minimum rating of 75 degrees Celsius. It must be installed in a panel with a flat and rigid vertical surface. It provides a spring-set motor to hold the brake. The housing of this driver must allow ventilation to the right and left sides of the panel to comply with UL applications.
