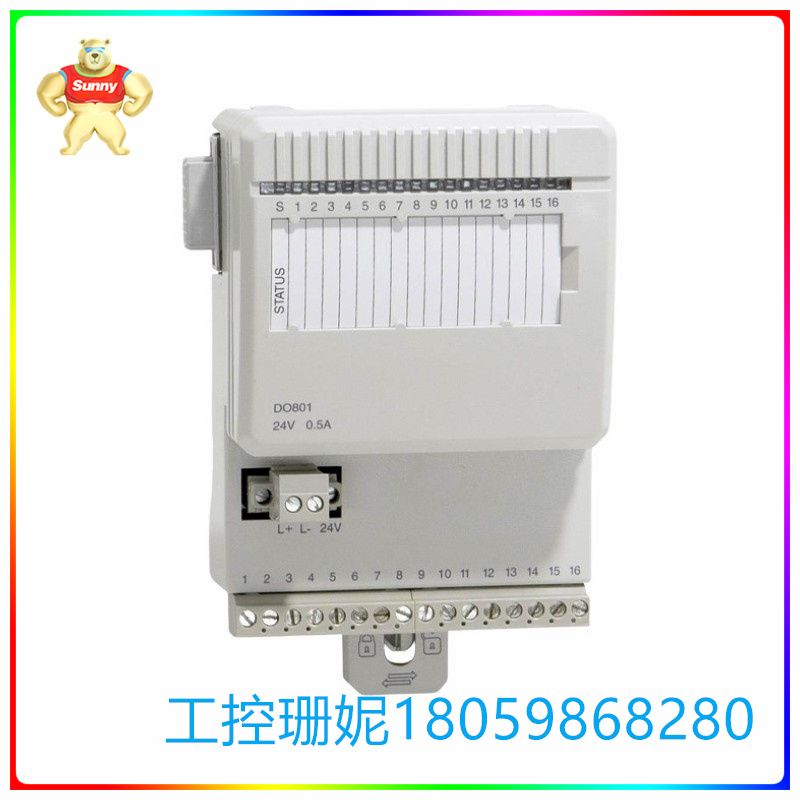

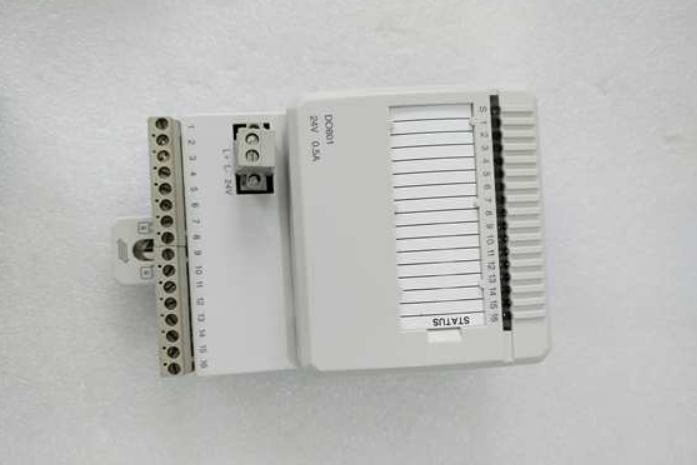

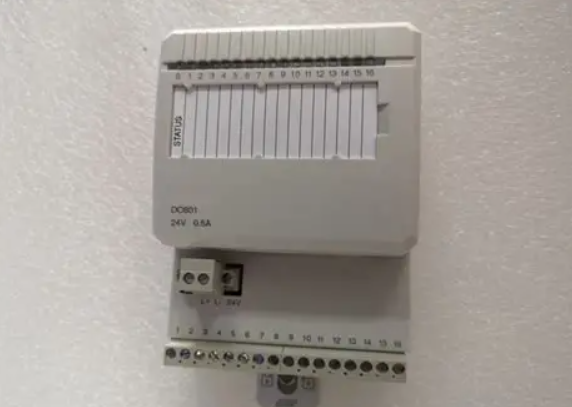

DO801 3BSE020510R1 数字输出 24V 16 ch 过温保护的高侧驱动器

☆型号：DO801 3BSE020510R1 数字输出 24V 16 ch 过温保护的高侧驱动器

【产品详情】

DO801 是用于 S800 I/O 的 16 通道 24 V 数字输出模块。输出电压范围为 10 至 30 V，最大连续输出电流为 0.5 A。输出具有短路、过压和过温保护功能。输出位于一个隔离组中。每个输出通道由短路和过温保护的高侧驱动器、EMC保护元件、感性负载抑制、输出状态指示LED和光隔离栅组成。

特点和优势

16 个通道，用于 24 V 直流电流源输出

1 个隔离组，每组 16 个通道

输出状态指示灯

OSP 在通信错误时将输出设置为预定状态

对地和 30 V 短路保护

过压和过热保护

通过可拆卸连接器进行过程和电源连接

DO801 3BSE020510R1 是一个数字输出模块，通常用于工业自动化和控制系统。数字输出模块的作用是将微控制器或PLC等控制器输出的数字信号转换为外部设备的控制信号，例如电磁阀、接触器等。

DO801 3BSE020510R1 的输出通道数量为16个，每个通道可以输出24V的直流电压信号。这意味着该模块可以同时控制多个外部设备，实现多路控制功能。

 ☆型号：DO801 3BSE020510R1 数字输出 24V 16 ch 过温保护的高侧驱动器

【英文介绍】

The DO801 is a 16-channel 24 V digital output module for the S800 I/O. The output voltage ranges from 10 to 30 V with A maximum continuous output current of 0.5 A. The output has short circuit, overvoltage and overtemperature protection. The output is in a quarantine group. Each output channel consists of high side drivers for short circuit and overtemperature protection, EMC protection elements, inductive load suppression, output status indicator leds and optical isolation barriers.

Characteristics and advantages

16 channels for 24 V DC current source output

One isolation group, 16 channels each

Output status light

OSP sets the output to a scheduled state in case of a communication error

Ground and 30 V short circuit protection

Protection against overpressure and overheating

Process and power connections via removable connectors

The DO801 3BSE020510R1 is a digital output module commonly used in industrial automation and control systems. The role of the digital output module is to convert the digital signal output by the microcontroller or PLC controller into the control signal of the external device, such as solenoid valve, contactor, etc.

The DO801 3BSE020510R1 has 16 output channels, each of which can output 24V DC voltage signals. This means that the module can control multiple external devices at the same time to achieve multiple control functions.
