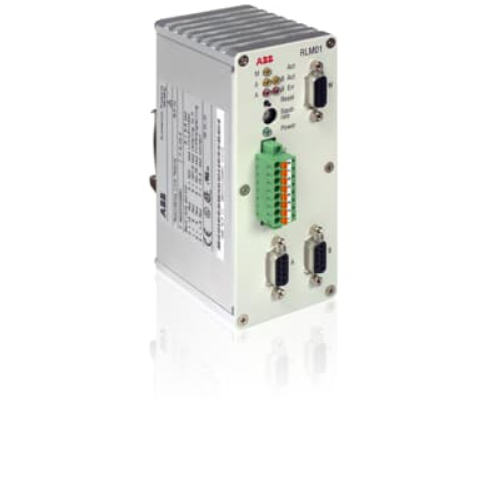

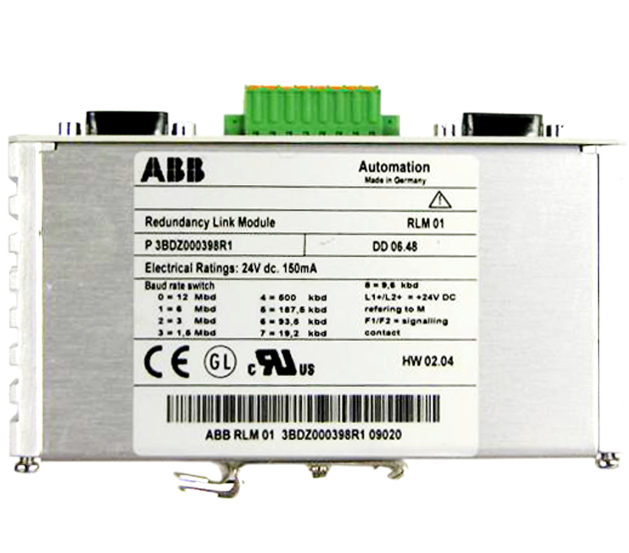

RLM01 链路转换为2条冗余链路 总线网络

☆型号：RLM01 链路转换为2条冗余链路 总线网络

【产品详情】

将非冗余的PROFIBUS 链路转换为2条冗余链路，反之亦然。

只配备一个PROFIBUS DP接口的现场设备，可以通过冗余链路模块RLM01来集成到冗余的PROFIBUS总线网络。如同一个活跃的开关，RLM01将两条冗余链路转换为一条PROFIBUS DP链路，反之亦然。RLM01扩大信号形式和输入数据的振幅，并监控3条链路的活动和错误状态。

3个PROFIBUS接口

透明的PROFIBUS 组态，无需从站地址。

支持的传输速率： 9.6 Kbps-12 Mbps

支持多达 31台PROFIBUS 客户端。采用中继器（光纤-电气）的情况下还可以扩展更多。

通过前面板的LED或是信号接触器来指示错误

8个接头的端子板可以读取特定信息来进行诊断

CE, UL和CSA认证

型式批准证书 "Germanischer Lloyd”可用于船舶行业

☆型号：RLM01 链路转换为2条冗余链路 总线网络

【英文介绍】

Convert a non-redundant PROFIBUS link to two redundant links and vice versa.

Field devices equipped with only one PROFIBUS DP interface can be integrated into redundant PROFIBUS bus networks via the redundant link module RLM01. Like an active switch, RLM01 converts two redundant links into one PROFIBUS DP link and vice versa. RLM01 amplifies the amplitude of the signal form and input data, and monitors the activity and error status of the three links.

Three PROFIBUS interfaces

Transparent PROFIBUS configuration without the need for a slave address.

Supported transfer rates: 9.6 Kbps-12 Mbps

Supports up to 31 PROFIBUS clients. Even more can be expanded with Repeaters (fiber-electrical).

Errors are indicated by the front panel LED or signal contactor

The 8-connector terminal board can read specific information for diagnosis

CE, UL and CSA certification

The Type Approval certificate "Germanischer Lloyd "can be used in the Marine industry
