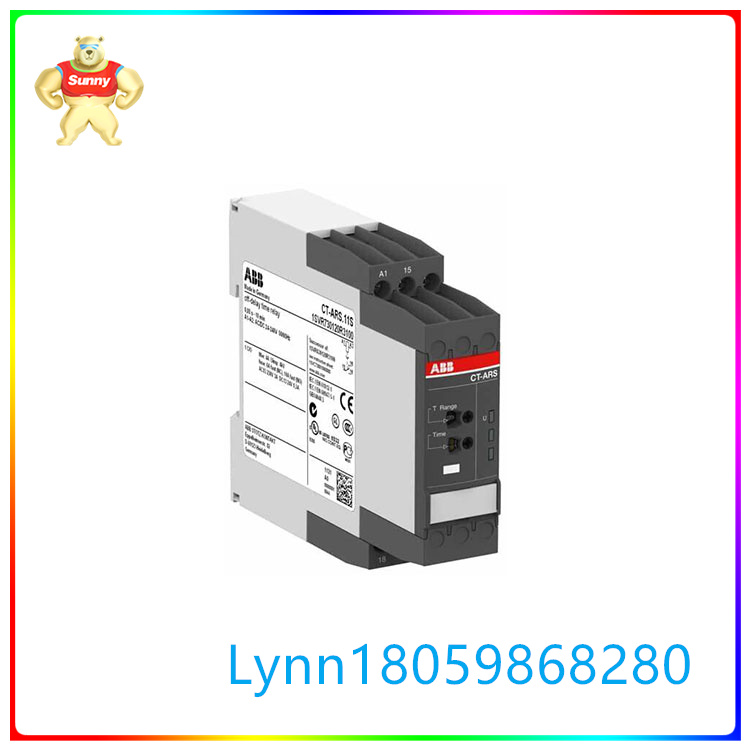

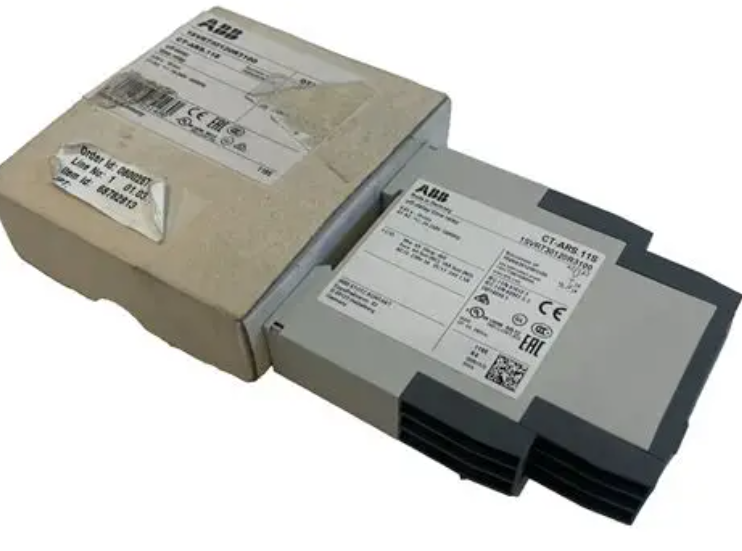

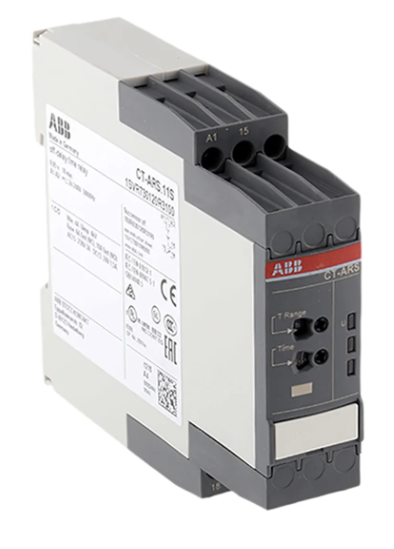

CT-ARS.11 时间继电器 断开延时计时器

☆型号：CT-ARS.11 时间继电器 断开延时计时器

【产品详情】

产品详细信息

CT-ARS 系列断开延时计时器

CT-ARS 是来自 CT-S 系列的电子计时器系列，具有真断开延时功能。 这些型号提供多达 7 个时间范围和连续额定控制电压，可在全世界使用，无论电源电压是多少。 所有 CT-S 系列电子计时器均可提供两种不同端子型号。 您可在经过验证的螺钉连接技术（双箱式笼连接接线端子）与完全无需工具的轻松连接技术（推入式接线端子）之间进行选择。 这用系列内的每个制造商部件号末尾的“P”或“S”表示。

额定控制电源电压 24 → 240V 交流/直流

断开 - 延时计时器，无辅助电压

可在 0.05 s → 10 min 之间选择 7 个时间范围

由正面工作元件精确调节

提供螺钉连接技术或轻松连接技术

外壳材料可提供最高消防等级

工具 - 可在 DIN 导轨上自由安装和拆卸

1 C/O（单刀双掷）触点

22.5 mm (0.89 in) 宽度

状态指示 LED

☆型号：CT-ARS.11 时间继电器 断开延时计时器

【英文介绍】

Product Details

CT-ARS series disconnect delay timer

CT-ARS is a series of electronic timers from the CT-S series with a true disconnect delay function. These models offer up to 7 time ranges and continuous rated control voltages and can be used worldwide, regardless of the supply voltage. All CT-S series electronic timers are available in two different terminal models. You can choose between a proven screw connection technology (double box cage connection terminals) or a completely toolless, easy connection technology (push-in terminals). This is indicated by a "P" or "S" at the end of each manufacturer's part number within the series.

Rated control power supply voltage 24 → 240V AC/DC

Disconnect - Delay timer, no auxiliary voltage

7 time ranges can be selected between 0.05s → 10 min

Precisely adjusted by the front working element

Screw connection technology or easy connection technology is available

The housing material provides the highest fire rating

Tools - can be freely installed and removed on DIN rails

1 C/O (single pole double throw) contact

22.5 mm (0.89 in) width

Status indicator LED
