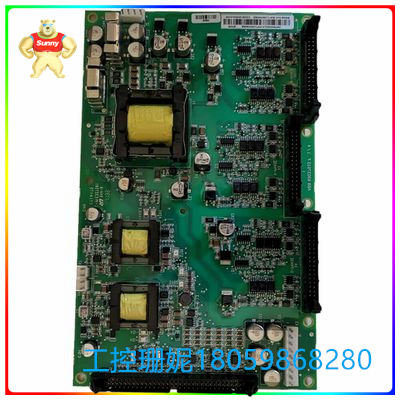

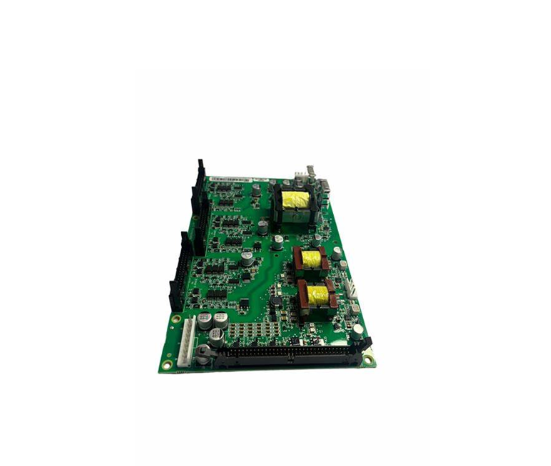

BGDR-01C 栅极驱动板 适用于驱动IGBT模块

☆型号：BGDR-01C 栅极驱动板 适用于驱动IGBT模块

【产品详情】

品牌 ： ABB

产品编号型号： BGDR-01C

产品类型 ： 栅极驱动板

备件类型 ： 控制板

兼容驱动器系列：ACS880-04、ACS580-04

兼容框架尺寸：ACS880-104-R8i 用于 R8i，ACS580-04 用于 R10 和 R11

重量 ： 0.4 公斤

装运重量 ： 2 Kg

BGDR-01C是一款由ABB公司生产的栅极驱动板，适用于驱动IGBT模块。该驱动板具有高可靠性和高性能的特点，能够提供足够的电流和电压来驱动IGBT模块，确保其正常工作。此外，该驱动板还具有过流保护和过压保护等功能，可以保护IGBT模块免受过流或过压等异常情况的损害。

在使用该栅极驱动板时，需要注意以下几点：

正确连接电源和信号线，确保驱动板与IGBT模块之间的连接可靠。

根据实际需求，合理配置驱动板的参数，以保证其正常工作。

在使用过程中，需要定期检查驱动板的温度和散热情况，防止因过热而损坏。

在遇到异常情况时，需要及时停机检查并排除故障，确保驱动板和IGBT模块的安全。

总之，BGDR-01C是一款适用于驱动IGBT模块的栅极驱动板，具有高可靠性和高性能的特点。在使用过程中，需要注意电源和信号线的连接、参数配置、温度和散热情况等方面的注意事项，以确保其正常工作和延长使用寿命。

☆型号：BGDR-01C 栅极驱动板 适用于驱动IGBT模块

【英文介绍】

Brand: ABB

Product number Model: BGDR-01C

Product Type: Grid drive board

Spare part type: Control board

Compatible drive series: ACS880-04, ACS580-04

Compatible frame sizes: ACS880-104-R8i for R8i, ACS580-04 for R10 and R11

Weight: 0.4 kg

Shipping weight: 2 Kg

BGDR-01C is a grid drive board manufactured by ABB for driving IGBT modules. The driver board has the characteristics of high reliability and high performance, and can provide enough current and voltage to drive the IGBT module to ensure its normal operation. In addition, the driver board also has overcurrent protection and overvoltage protection and other functions, which can protect the IGBT module from overcurrent or overvoltage and other abnormal conditions.

When using the grid drive board, the following points need to be noted:

Correctly connect the power and signal lines to ensure reliable connection between the driver board and the IGBT module.

According to the actual requirements, configure the parameters of the driver board reasonably to ensure its normal operation.

In the process of use, it is necessary to check the temperature and heat dissipation of the drive board regularly to prevent damage due to overheating.

In the event of abnormal conditions, it is necessary to stop in time to check and troubleshoot the fault to ensure the safety of the driver board and IGBT module.

In short, BGDR-01C is a grid driver board suitable for driving IGBT modules, with high reliability and high performance characteristics. In the process of use, it is necessary to pay attention to the connection of the power and signal lines, parameter configuration, temperature and heat dissipation, etc., to ensure its normal work and extend its service life.

☆型号：BGDR-01C 栅极驱动板 适用于驱动IGBT模块
