EGCP-2 8406-121 微处理器的完整发电机控制
【产品详情】
型号 8406-121 是伍德沃德基于 EGCP-2 微处理器的完整发电机控制和发动机管理软件包之一，用于自动化和保护基于燃气或柴油发动机的发电机组。
8406-121 的特性包括：
发动机控制
发电机组同步
实际 （kW） 负载控制
反应式 （kVAR） 控制
自动发生器排序（多单元）
发电机组保护特性
发动机保护特性
通信 – PC 接口（通信功能的完整详细信息可在通信手册 26181 中在线找到）

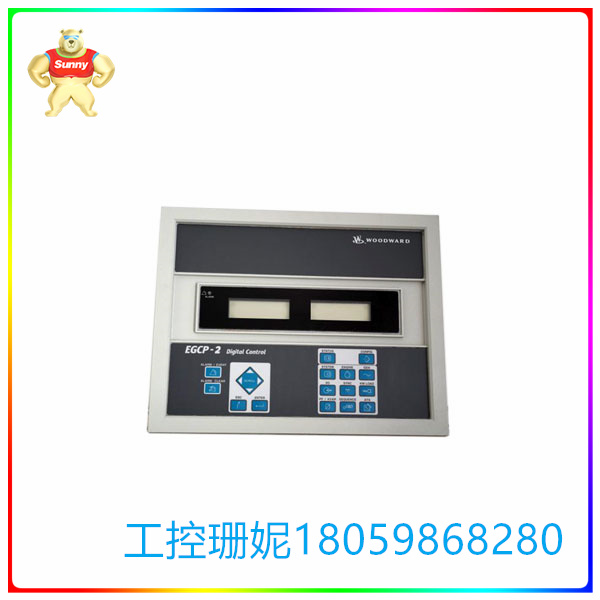

8406-121 的输入电压额定值为 150–300 Vac PT 输入，9–32 Vdc，额定工作温度为 –20 至 +70 °C。 额定存储温度为 –40 至 +105 °C。 该装置尺寸为 282 x 358 x 69 毫米，包括一个带键盘的前面板和两个背光 LCD 显示屏。
两个屏幕显示操作信息、状态信息和调谐设定点。当发动机转速高于 50 rpm 时，背光灯保持亮起。发动机不运转时，背光会在5分钟不使用后熄灭。如果电源电压下降，它也会关闭以节省电力。显示屏旁边是一个红色 LED，用于指示报警条件和关机条件。
8406-121 不附带安装和远程通信所需的组件，必须单独订购。EGCP-2 发动机发电机控制包手册 26174 可以在我们上面的标签中找到。
EGCP-2 8406-121 微处理器的完整发电机控制
【英文介绍】
Model 8406-121 is one of Woodward's complete EGCP-2 microprocessor-based generator control and engine management packages for automating and protecting gas - or diesel-based generator sets.
The 8406-121 features include:
Engine control
Generator set synchronization
Actual (kW) load control
Reactive (kVAR) control
Automatic generator sorting (multi-unit)
Protection characteristics of generator set
Engine protection characteristic
Communication - PC interface (Complete details of communication features can be found online in Communications Manual 26181)
The 8406-121 has an input voltage rating of 150-300 Vac PT inputs, 9-32 Vdc, and a rated operating temperature of -20 to +70 °C. The rated storage temperature is -40 to +105 °C. The device measures 282 x 358 x 69 mm and includes a front panel with a keyboard and two backlit LCD displays.
Two screens display operation information, status information, and tuning set points. When the engine speed is above 50 rpm, the backlight remains on. When the engine is not running, the backlight will be extinguished after 5 minutes of no use. If the power supply voltage drops, it will also shut down to save power. Next to the display is a red LED that indicates alarm conditions and shutdown conditions.
The 8406-121 does not come with the components required for installation and telecommunication and must be ordered separately. EGCP-2 Engine Generator Control Package Manual 26174 can be found in our label above.
