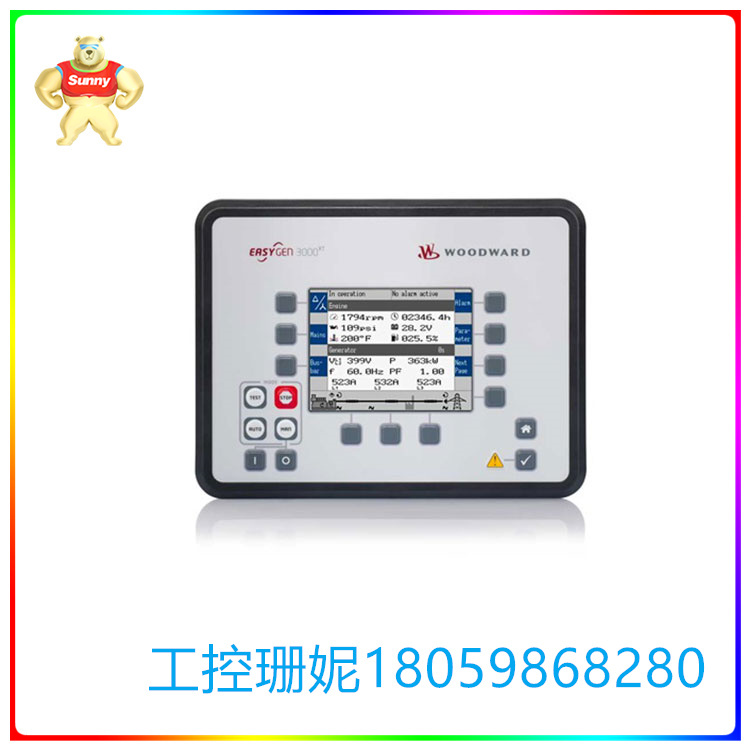

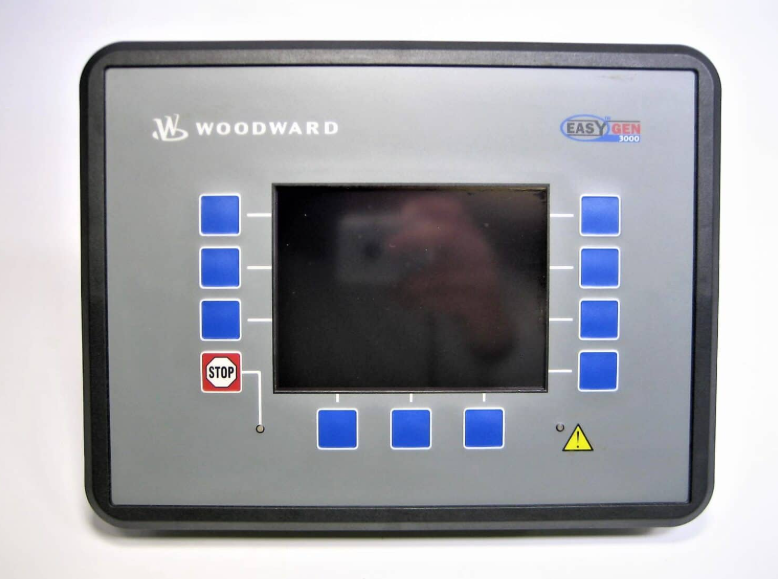

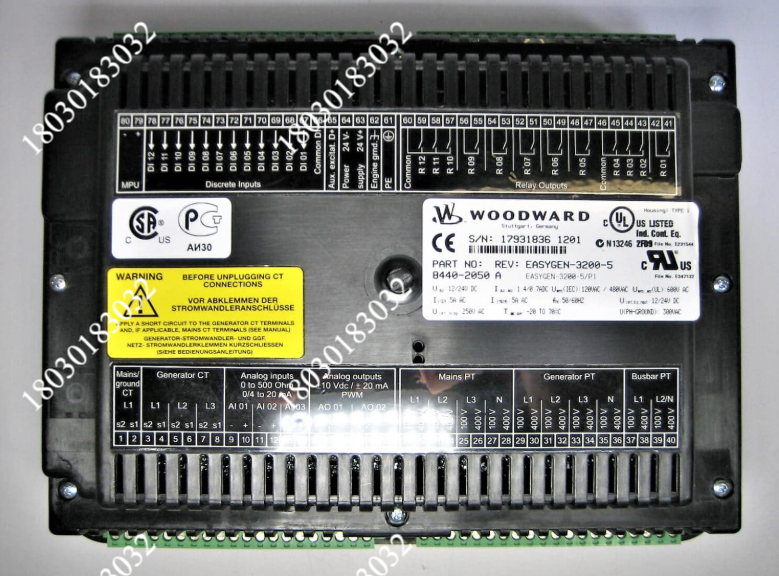

EASYGEN-3200-5 发电机组发动机控制器

【产品详情】

easYgen-3200-5

伍德沃德的 easYgen-3000 系列是多种工业涡轮机械控制和保护系统的制造商。easYgen-3000 系列是一款多功能、高效的发电机组控制器，能够针对各种应用进行个性化调整。该系列控制器模块专为工业燃气和柴油发动机、蒸汽轮机和压缩机模块而设计。伍德沃德的 easYgen-3200™ 系列并联发电机组控制器为 OEM 开关设备制造商、发电机成套商和系统集成商提供了卓越的多功能性和价值。easYgen-3200 将完整的发动机-发电机控制和保护与先进的点对点并联功能和创新功能结合在一个坚固、美观且用户友好的封装中。其集成的 LogicsManager™ 可编程逻辑功能提供了出色的应用灵活性，通常无需额外的 PLC 控制，但可以根据需要轻松与 SCADA 或基于 PLC 的控制系统集成。

easYgen-3200 为您提供了在单个经济实惠的发电机组控制器上实现标准化的优势，适用于许多不同的分布式发电应用——从独立的应急备用电源到具有多个市电馈电和联闸的复杂分段配电系统中多达 32 台发电机组的并联负载共享。

应用：

紧急备用：数据中心、医院、商业和工业设施

分布式发电 （DG）：用于峰值需求响应的公用事业可调度电力

岛屿主用电力：石油和天然气勘探、海洋、偏远村庄、租赁/移动

微电网：军事、政府、净零社区、大学

公用事业并联：调峰、需求削减

热电联产 （CHP）：废水处理、沼气生产/密封

开关设备升级：发电机控制改造以增加负载共享/并联能力

特征：

真有效值电压和电流检测（发电机、总线和市电），可降低对谐波的敏感性

与发动机ECU的CAN网络通信/控制（支持标准SAE-J1939协议和多种专有发动机OEM协议）

串行Modbus RTU（从站）通信，用于SCADA报警和外部控制

使用伍德沃德 ToolKit 服务工具通过 PC/笔记本电脑进行配置

与 RP-3200 远程面板连接，通过 CANopen 协议在最远 250 米的距离内对 easYgen-3200 控制器进行完整的通知、控制和配置

合规机构/船舶*认证：CE、UL/cUL、CSA、BDEW、ABS、劳氏船级社（*有关进一步认证，请参阅船舶包装）

AMF（自动电源故障）检测、去耦和紧急运行，总线死关闭

自动同步：相位匹配、正/负滑移频率、上升（死区）并联

断路器合闸/分闸控制：仅 GCB、GCB 和 MCB（ATS 功能）或外部（无）控制

多达 32 台发电机组的比例负载分配（同步或下降），无论单个尺寸如何

基本负载、导入/导出控制、非对称负载（通过外部基本负载输入）

自动与负载相关的启动/停止，以提高发电系统效率

异步（感应）发电机控制

发动机和发电机保护功能，具有完全可编程的设置

EASYGEN-3200-5 发电机组发动机控制器

【英文介绍】

easYgen-3200-5

Woodward's easYgen-3000 series is a manufacturer of a wide range of industrial turbomachinery control and protection systems. The easYgen-3000 series is a versatile and efficient generator set controller that can be customized for a variety of applications. This series of controller modules is designed for industrial gas and diesel engines, steam turbines and compressor modules. Woodward's easYgen-3200™ series parallel generator set controllers offer exceptional versatility and value to OEM switchgear manufacturers, generator kits and system integrators. The easYgen-3200 combines complete engine-generator control and protection with advanced point-to-point parallel functionality and innovative features in a rugged, aesthetically pleasing and user-friendly package. Its integrated LogicsManager™ programmable logic capabilities provide excellent application flexibility, usually without additional PLC control, but can be easily integrated with SCADA or PLC-based control systems as required.

The easYgen-3200 gives you the advantage of standardizing on a single, affordable generator set controller for many different distributed generation applications - from independent emergency backup power to parallel load sharing of up to 32 generator sets in complex segmented distribution systems with multiple mains feeds and interlocks.

Applications:

Emergency backup: Data centers, hospitals, commercial and industrial facilities

Distributed generation (DG) : utility-dispatchable power for peak demand response

Island main electricity: oil and gas exploration, Marine, remote villages, leasing/mobile

Microgrids: Military, government, net zero communities, universities

Utility parallel: peak regulation, demand reduction

Combined heat and Power (CHP) : wastewater treatment, biogas production/sealing

Switchgear upgrade: Generator control modification to increase load sharing/parallel capability

Features:

True RMS voltage and current detection (generator, bus, and mains) to reduce sensitivity to harmonics

CAN network communication/control with engine ECUs (supports standard SAE-J1939 protocol and multiple proprietary engine OEM protocols)

Serial Modbus RTU (slave station) communication for SCADA alarm and external control

You can use the Woodward ToolKit to configure the oceanstor Toolkit on a PC or laptop

Connect to the RP-3200 remote panel for complete notification, control and configuration of the easYgen-3200 controller over a distance of up to 250 meters via the CANopen protocol

Compliance Body/Vessel * Certification: CE, UL/cUL, CSA, BDEW, ABS, Lloyd's Register (* For further certification, please refer to Vessel packaging)

AMF (Automatic Power Failure) detection, decoupling and emergency operation, bus dead shutdown

Automatic synchronization: phase matching, positive/negative slip frequency, rise (dead zone) parallel

Circuit breaker closing/opening control: only GCB, GCB and MCB (ATS function) or external (no) control

Proportional load distribution (synchronous or descending) of up to 32 generator sets, regardless of individual size

Base load, import/export control, asymmetric load (input via external base load)

Automatic load related start/stop to improve power generation system efficiency

Asynchronous (induction) generator control

Engine and generator protection features with fully programmable Settings
