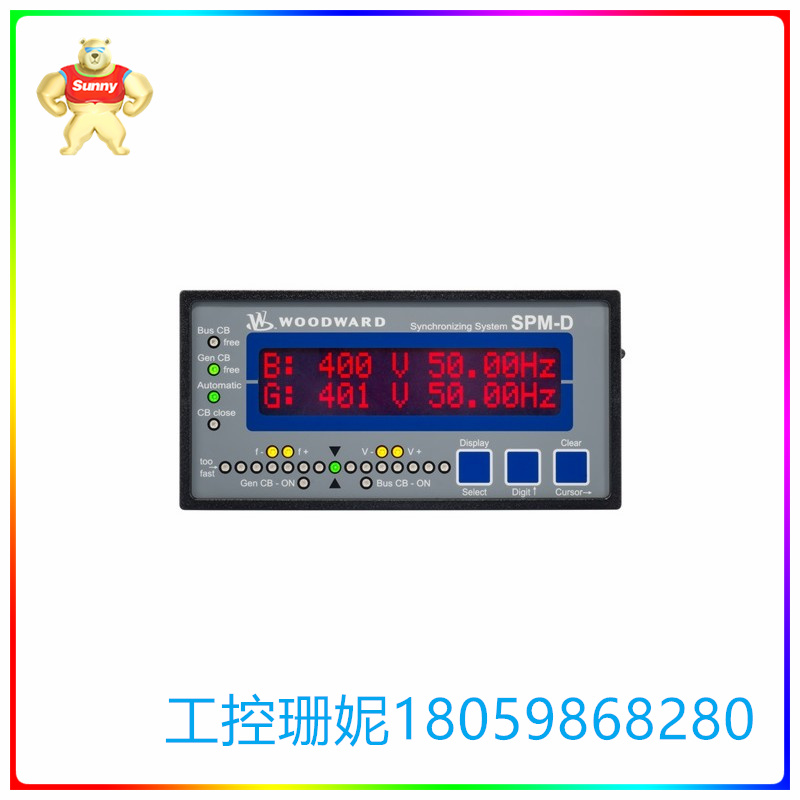

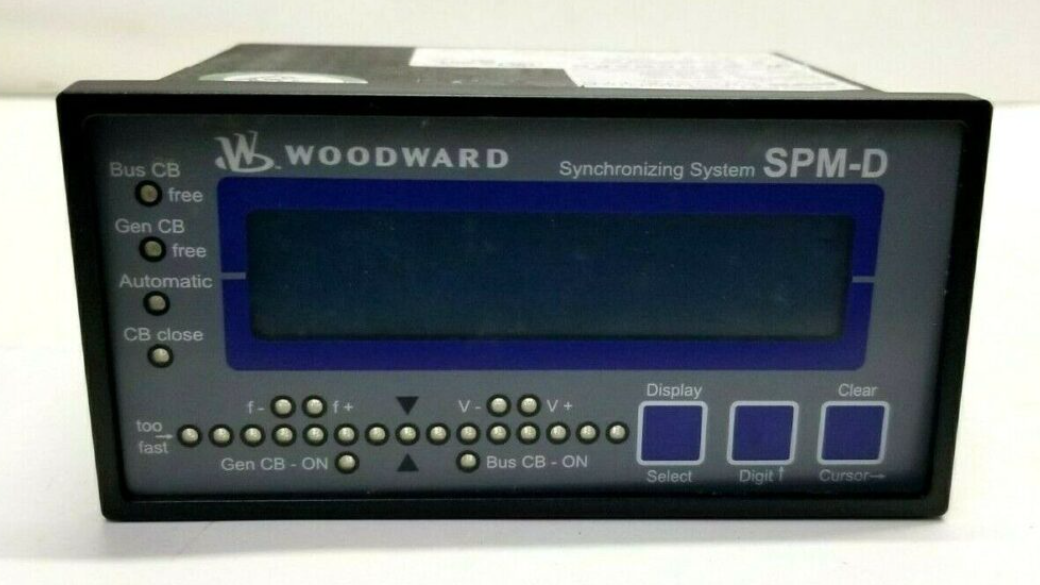

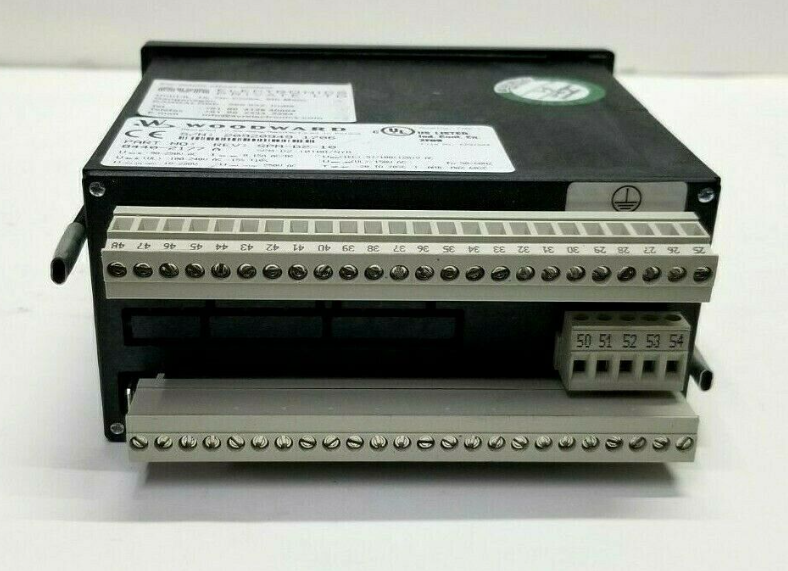

SPM-D2-11 微处理器的同步器 三相交流发电机

【产品详情】

SPM-D2-11是一种基于微处理器的同步器，设计用于配备伍德沃德或其他兼容速度控制和自动电压调节器的单相或三相交流发电机。SPM-D2-11同步器使用模拟或离散输出偏置信号提供自动频率、相位和电压匹配。它结合了同步一个断路器，负载和功率因数控制，或同步负载共享和发电机保护。这种同步器适用于各种原动机和发电机，因为它的控制信号可以设置为适合几种类型的发电机组-从快速反应的柴油发动机到软反应的燃气轮机。

所有SPM-D2同步器都有密码保护，可通过HMI(SPM-D装置)或带有USB连接的工具包配置工具进行配置。

好处包括:

与各种调速器、自动电压调节器和断路器兼容

真均方根电压检测可降低对谐波的敏感度

易于调试的正面同步示波器

HMI编程和与伍德沃德工具包服务工具的USB连接

现有SPM-D11同步器的替代产品

功能包括:

一个断路器的同步

具有电压匹配的相位匹配或滑差频率同步

速度和电压偏置信号的输出

有功功率和功率因数控制

两条模拟负载共享线路，用于有功和无功功率负载共享

外部控制有功功率设定点的模拟输入

包括发电机保护

用于操作模式选择的离散输入

双线液晶文本显示，用于操作、报警指示和测量值可视化

LED同步示波器

PC和前面板可配置

SPM-D2-11 微处理器的同步器 三相交流发电机

【英文介绍】

The SPM-D2-11 is a microprocessor-based synchronizer designed for single - or three-phase alternators equipped with Woodward or other compatible speed control and automatic voltage regulators. The SPM-D2-11 synchronizer provides automatic frequency, phase, and voltage matching using analog or discrete output bias signals. It combines synchronization with a circuit breaker, load and power factor control, or synchronous load sharing and generator protection. This synchronizer is suitable for a variety of prime movers and generators because its control signal can be set to suit several types of generator sets - from fast-reacting diesel engines to soft-reacting gas turbines.

All SPM-D2 synchronizers are password protected and can be configured via an HMI(SPM-D device) or a toolkit configuration tool with USB connection.

Benefits include:

Compatible with various governors, automatic voltage regulators and circuit breakers

True RMS voltage detection can reduce the sensitivity to harmonics

Frontal sync oscilloscope for easy debugging

HMI programming and USB connection with Woodward Toolkit Service tools

Replacement of the existing SPM-D11 synchronizer

Features include:

Synchronization of a circuit breaker

Phase matching or slip frequency synchronization with voltage matching

Output of speed and voltage bias signals

Active power and power factor control

Two analog load sharing lines for active and reactive power load sharing

Analog inputs for externally controlled active power setpoints

Generator protection included

Discrete input for mode of operation selection

Two-line LCD text display for operation, alarm indication and measurement visualization

LED synchronous oscilloscope

The PC and front panel are configurable
